MEUBON
wheelchair electric handcycle I hand pedal wheelchair bike I handcycle attachment
Regular price
$1,100.00 USD
Regular price
$1,170.00 USD
Sale price
$1,100.00 USD
Unit price
per
In stock

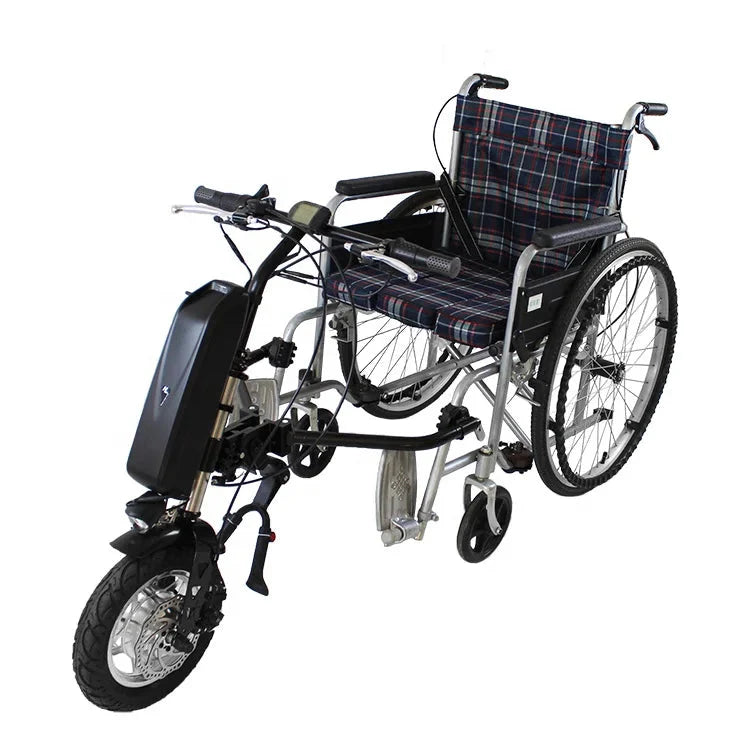

Electric Handcycle Kit for Wheelchair
36V 48V 350W 500W 800W 1200W Battery Handcycle wheelchair attachable electric handcycle for disabled handbike conversion kits
2 Models available
|
Model 1
|
20'' FAT 36v 1200w handcycle + 36v 13ah hailong battery +36v 2A charger
|
|
Model 2 !!!
|
20' FAT 48v 1200w handcycle + 48v 13ah hailong battery +48v 2A charger
|
|
36V/48V 250W/350W/500w Electric Wheelchair handcycle kit including
|
|||
|
Frame
|
Stainless steel frame *1SET
|
Controller
|
Smart Integrated controller*1SET
|
|
Motor
|
36V/48V 250W/350W/500w brushless hub motor*1SET
|
Display
|
LCD display*1SET
|
|
Front brake
|
Disc brake*1SET
|
Light
|
Front LED light with horn
|
|
Throttle
|
Half-Twist throttle*1SET
|
Tires
|
12’’/16'' *2.25 with road tire*1SET
|
|

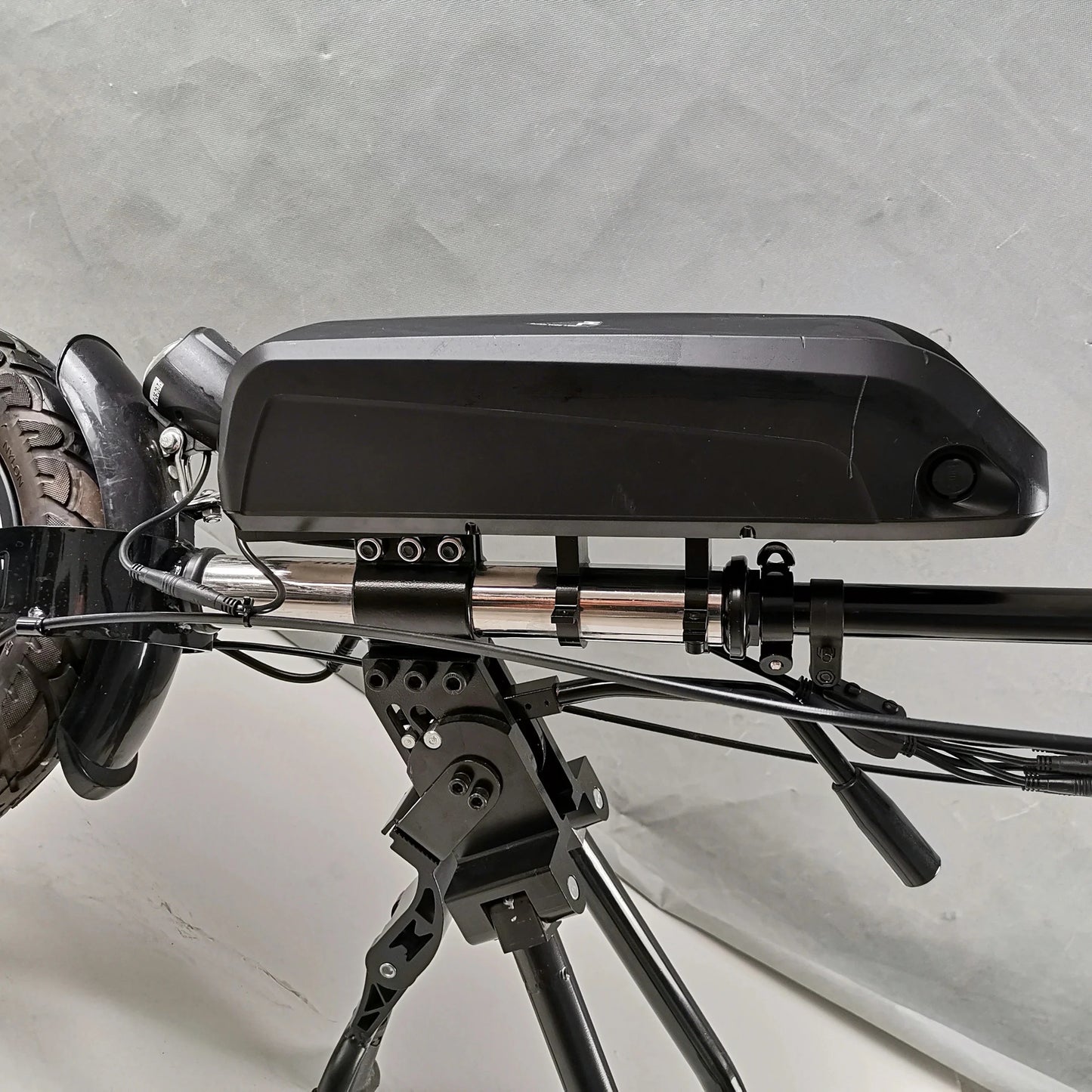

Battery
|
36V/48V 10.4ah/13ah lithium ion battery*1SET
|
Charger
|
2A charger*1SET
|
|
Size
|
12inch
|
36/48v 250w geared motor
|
36/48v 350w geared motor
|
|
|
16inch
|
36/48v 250w geared motor
|
36/48v 350w geared motor
|
36/48v 500w gearless motor
|
|
Battery
|
Bare
|
36v8.8ah
|
36v13ah
|
48v10.4ah
|
|
Hailong
|
36v13ah
|
48v10.4ah
|
48v13ah
|
|
Range
|
25km
|
G.W
|
25kg
|
|
Max speed
|
20km/h
|
Max load
|
100kg
|
|
Package Size
|
810*220*460mm
|
|
250W/350W MOTOR
500W MOTOR

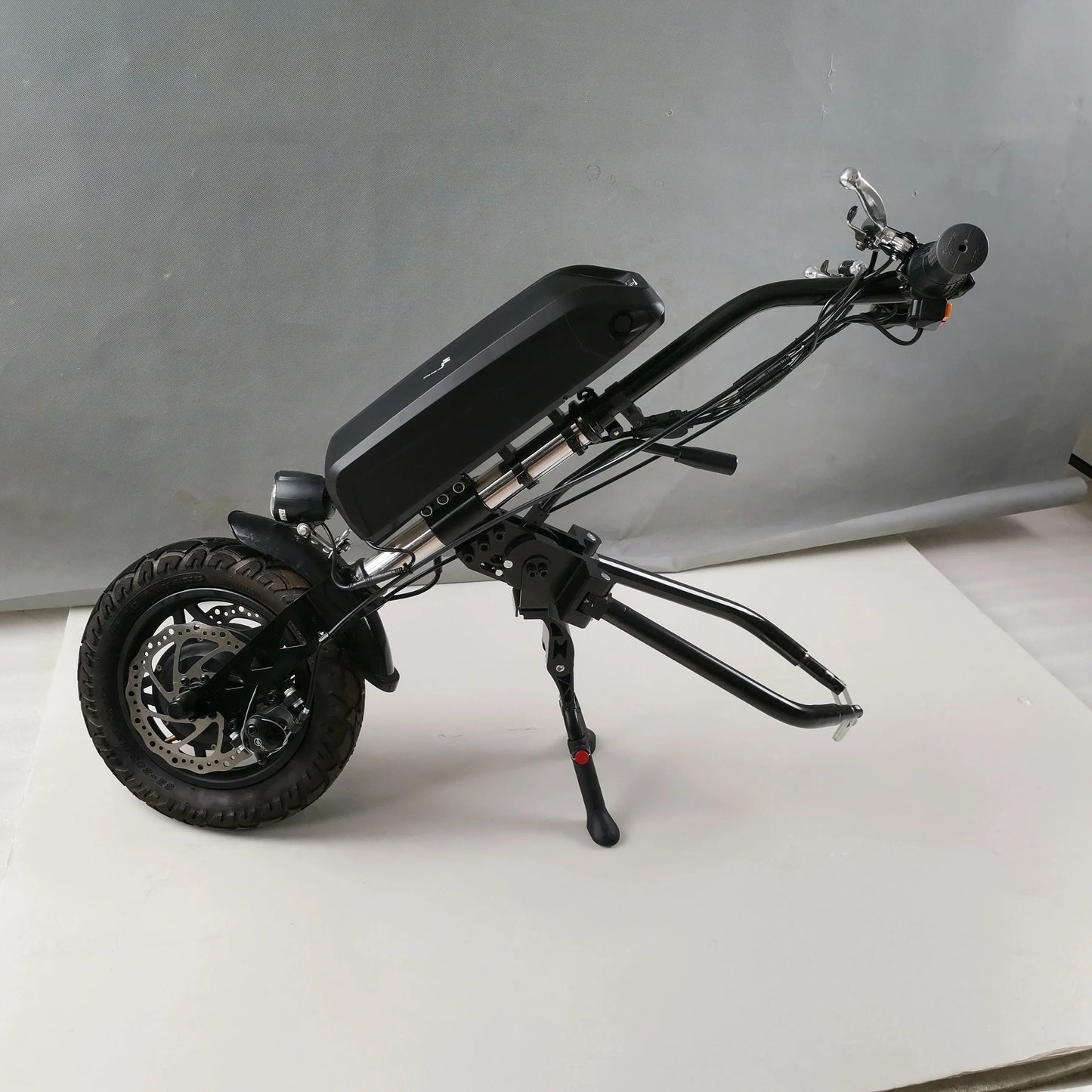

12 Inch 250W/350W Handcycle Kit
16 Inch 500W Handcycle Kit

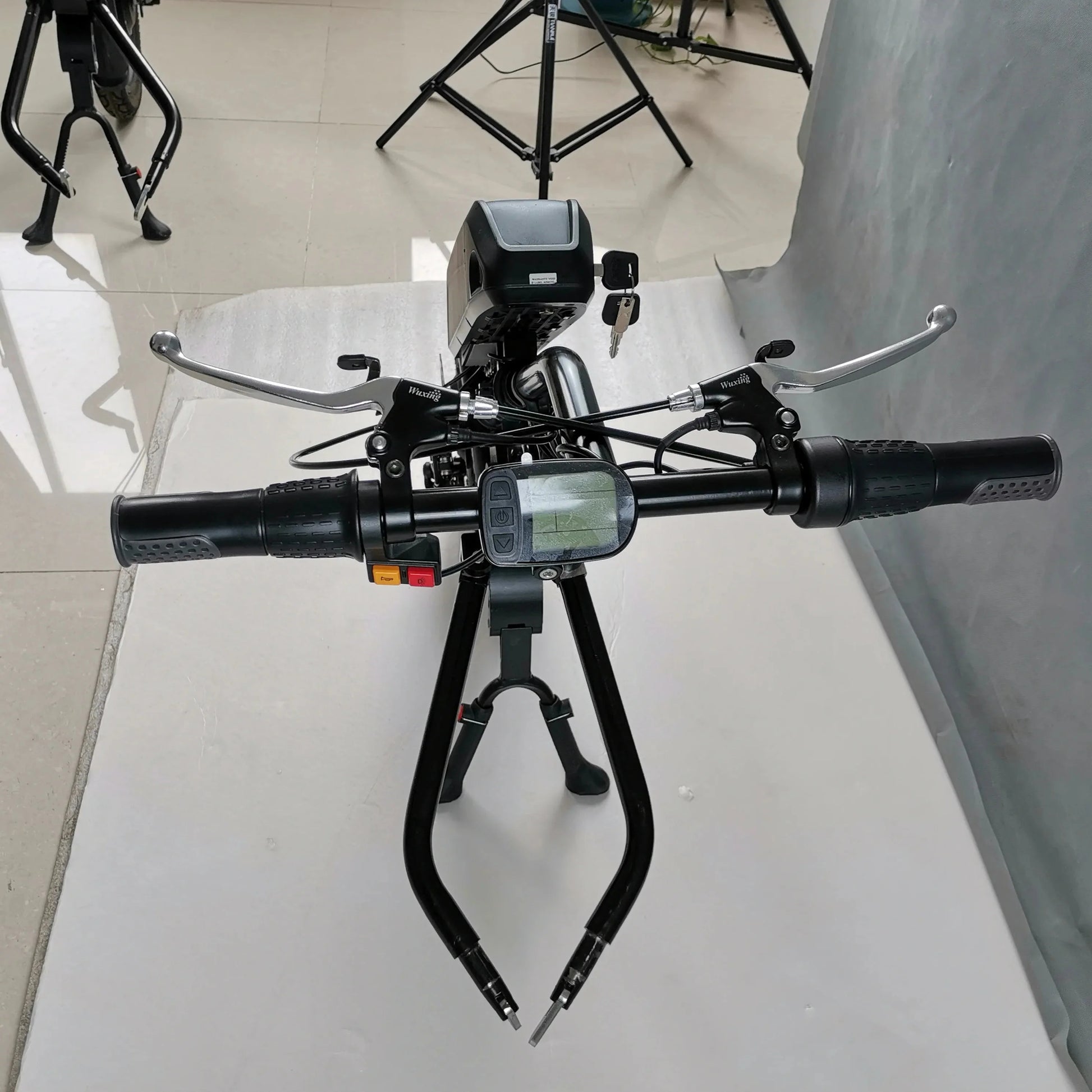

LCD05 Display

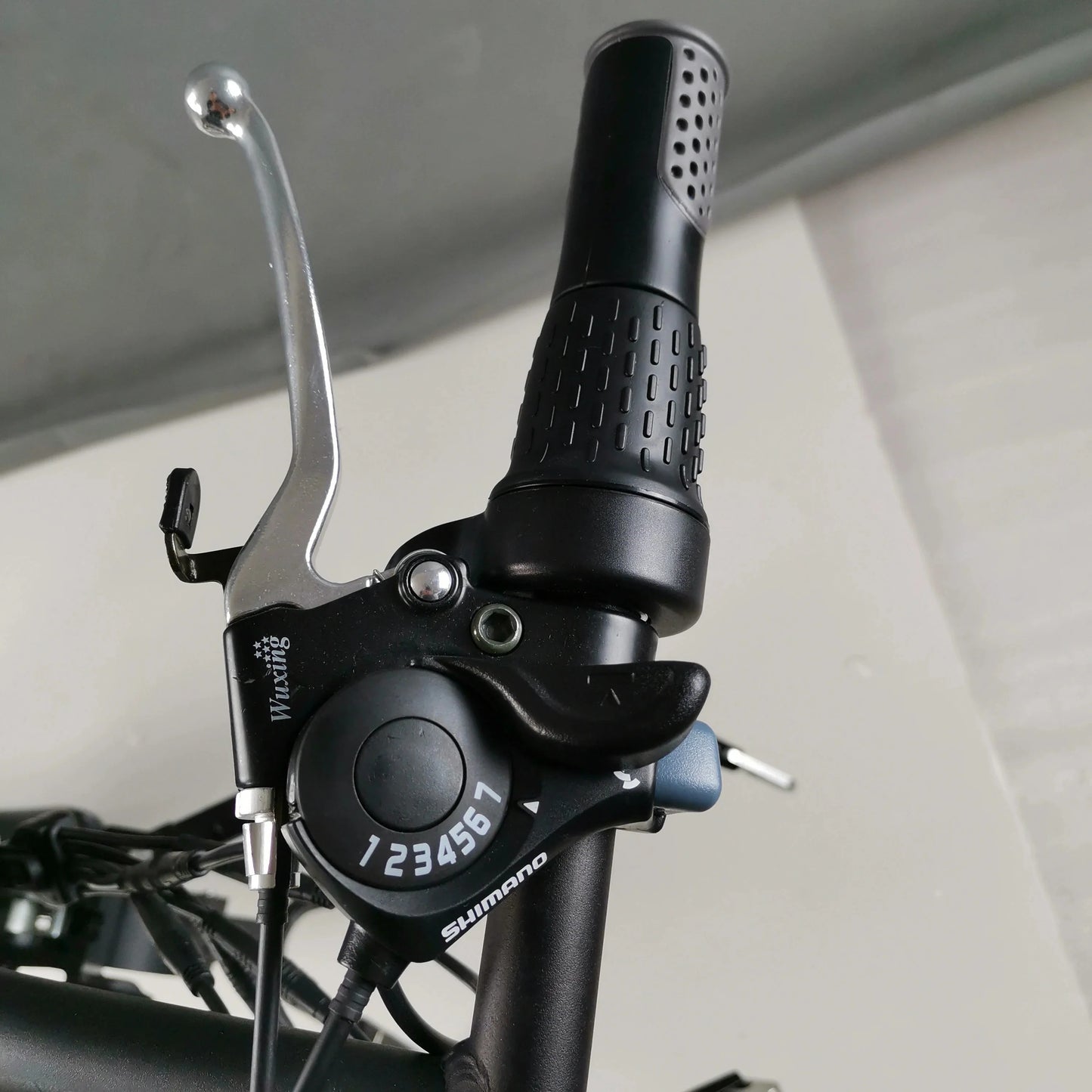

Half-Twist Throttle

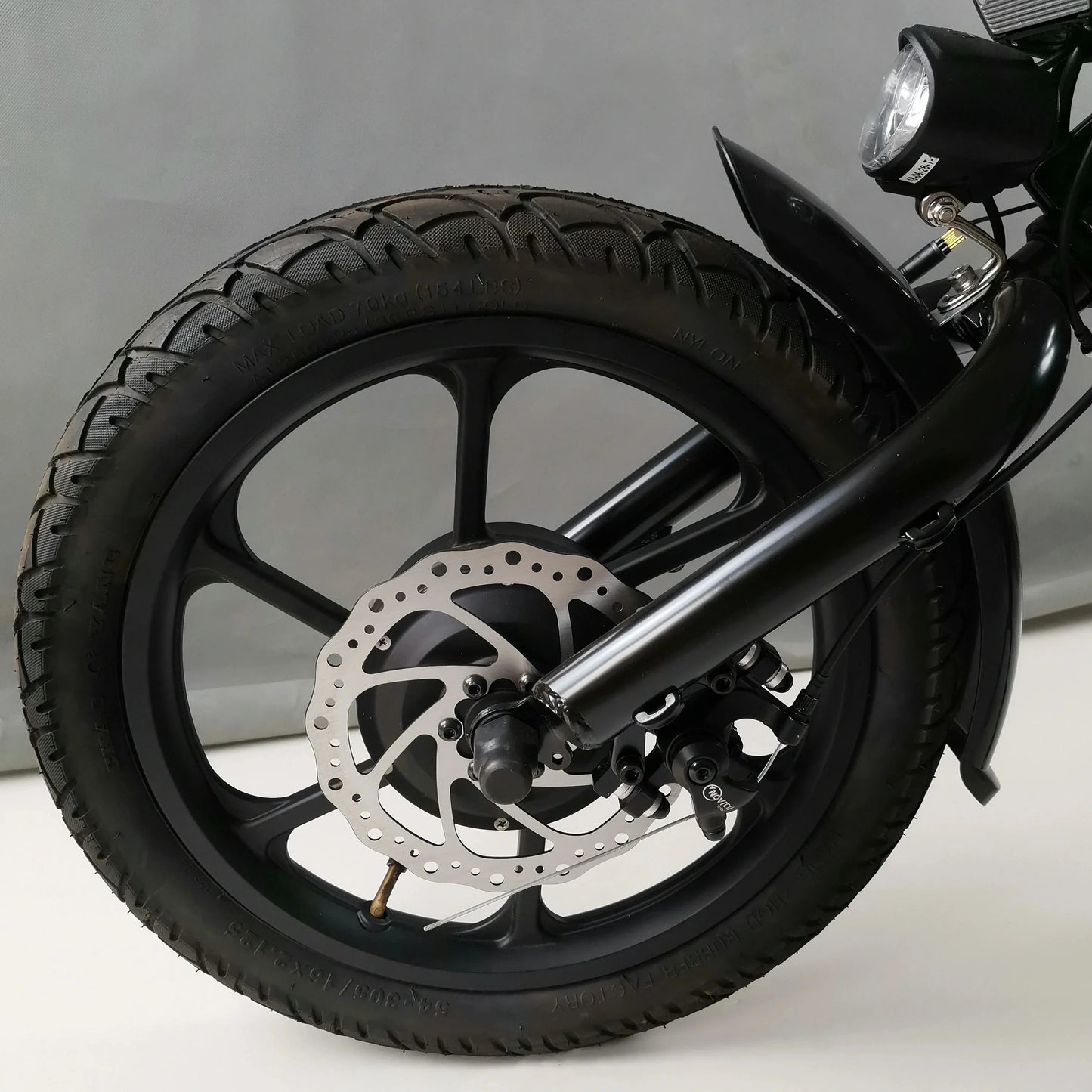

Double disc brake
Radius disc brake,front fork is suspension fork,improved the riding comfort and safe.
Waterproof +Fast Installation
Thoughtful waterproof design. Five-minute quick break.
KT Brand
All spare parts KT brand.
KT controller .
KT display.
Suitable for 90% wheelchairs in the market
Tube size:7/9''(common)
Others need be customized.
Key Feature: 1.Small size
2.Light weight
3.Forward or reverse smoothly
4.Easy to install and uninstall on many wheelchairs
Installation Instructions
- Model Number : wheelchair for handcycle attachment
- Product Name : Electric Wheelchair handcycle
- Material : Stainless Steel
- Color : Black
- Function : Health Care
- Feature : Convenient
- Size : Standard Size
- Warranty : 1 Year
- Battery : 48V 10.4/13Ah Hailong Battery
