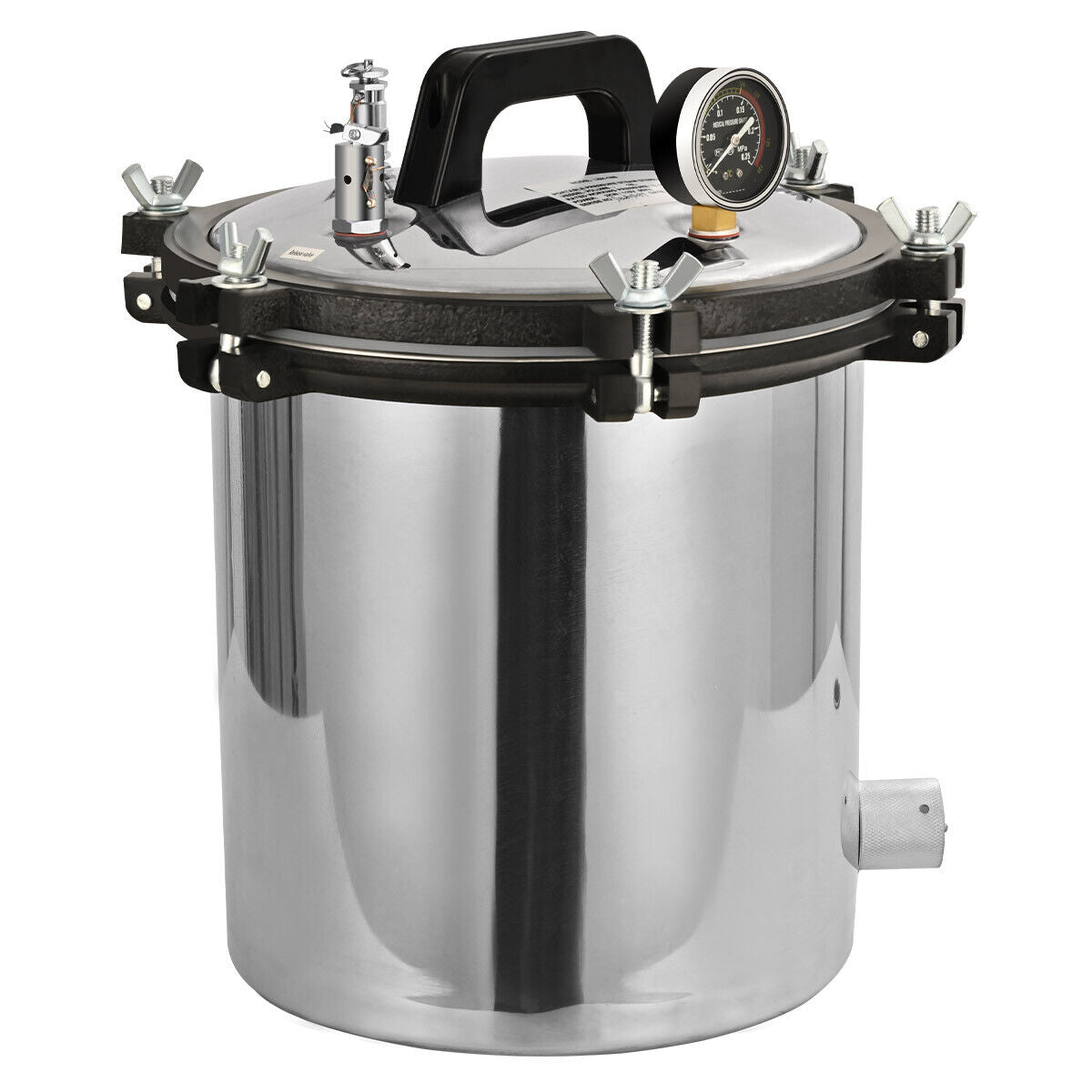

18L Steam Autoclave Sterilizer – High-Pressure Stainless Steel Steam Sterilizer for Lab, Dental & Medical Use

This 18L portable steam sterilizer features durable stainless steel construction and is among the best in its class for efficient, rapid sterilization using saturated steam. Designed for reliable high-pressure sterilization, it is ideal for hospitals, clinics, labs, dental offices, and industrial applications.

Applications

Perfect for sterilizing medical instruments, surgical dressings, glassware, and other equipment in hospitals, health centers, clinics, scientific research institutes, factories, and mines. It can also serve as a high-pressure cooker in plateau areas and be used for purifying drinking water in industrial settings.

Key Features

• Certified Safety: CE and ISO9001 certified for quality and reliability

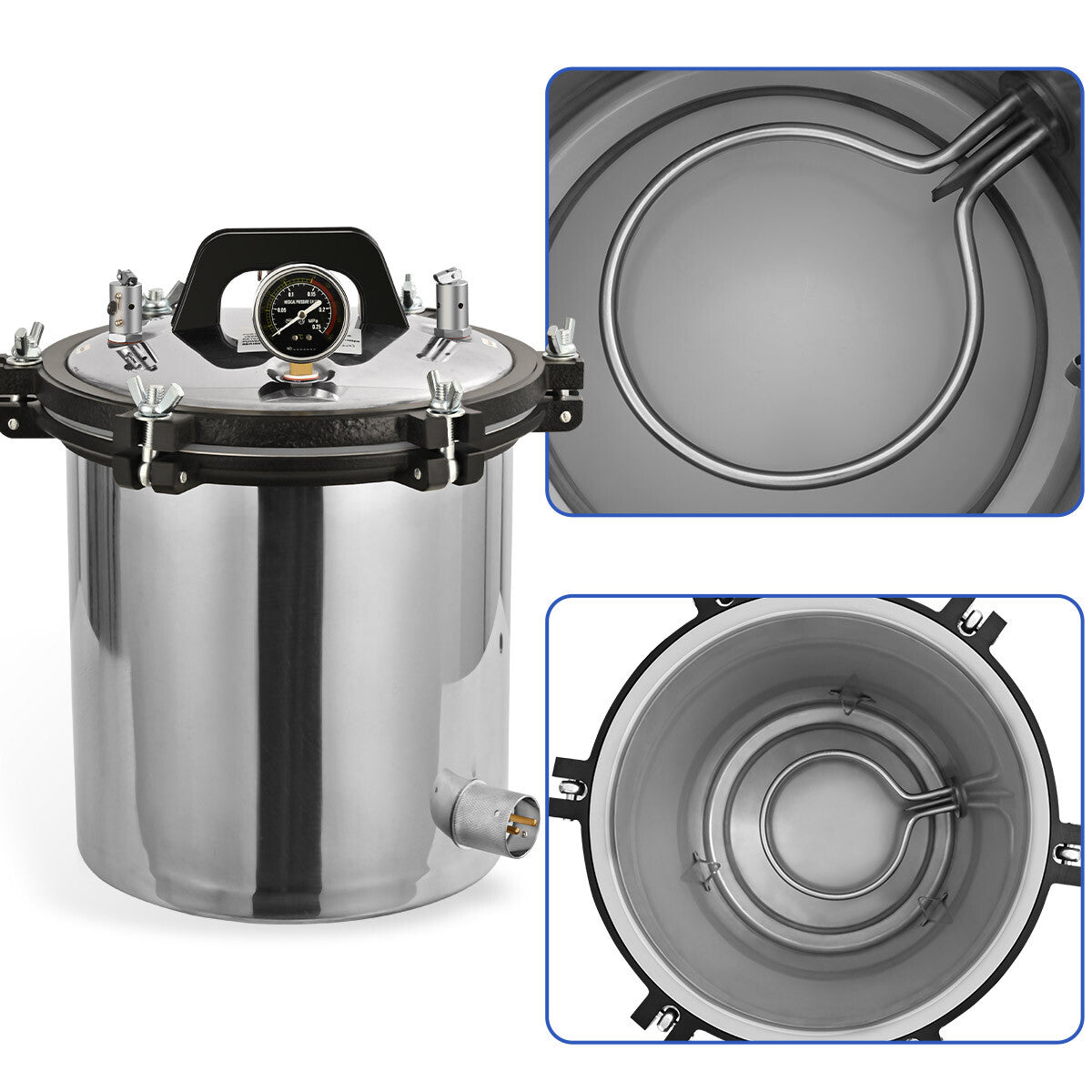

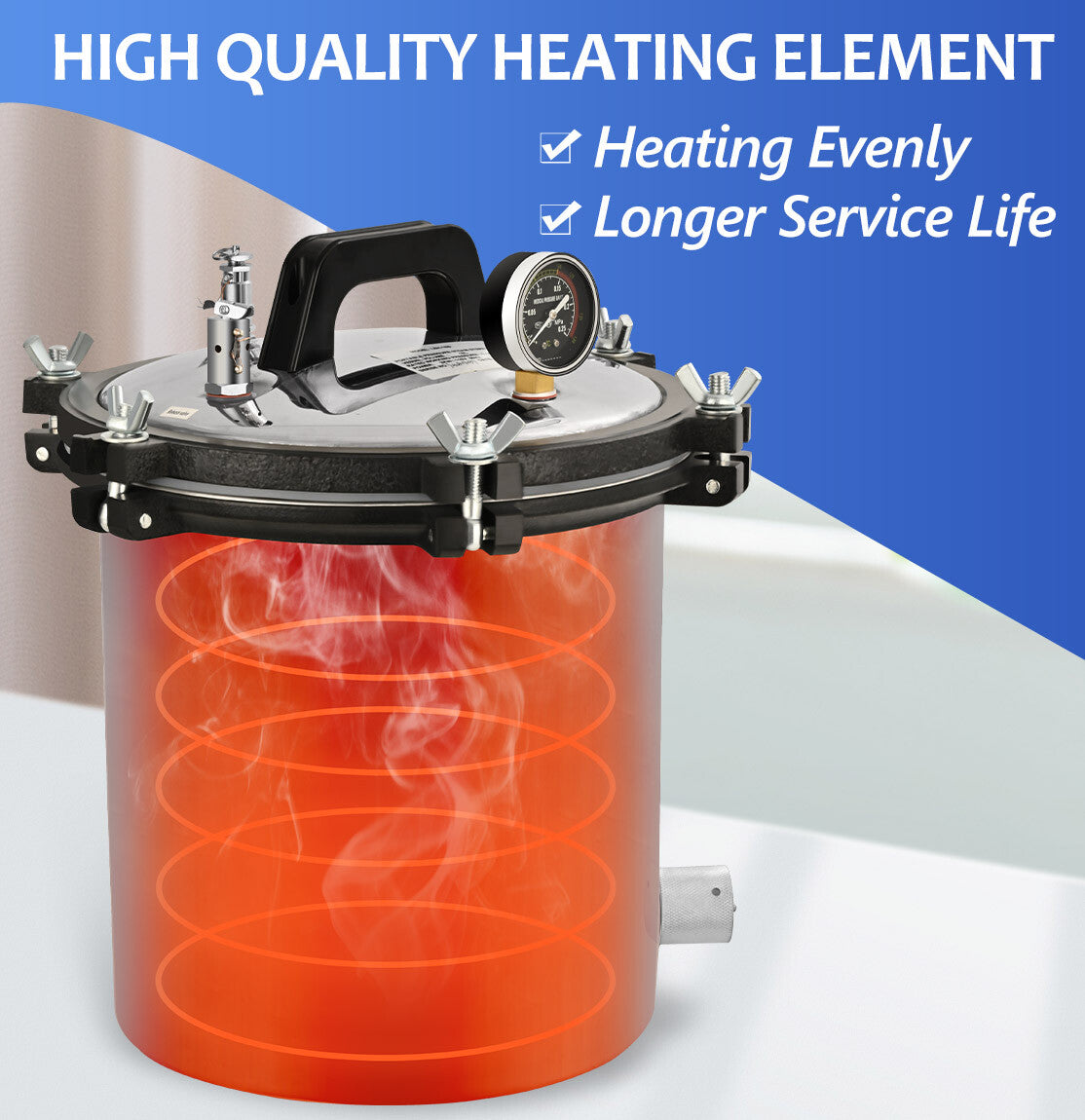

• Efficient Heating: Heated by an immersed electro-thermal tube for quick temperature rise and up to 50% energy savings compared to traditional electric stoves

• Dual Energy Source: Compatible with coal stove and liquefied petroleum gas heating in addition to electric heating

• Durable Construction: Medical-grade stainless steel container resistant to acids and alkalis, with tensile and compressive strength three times that of aluminum alloy

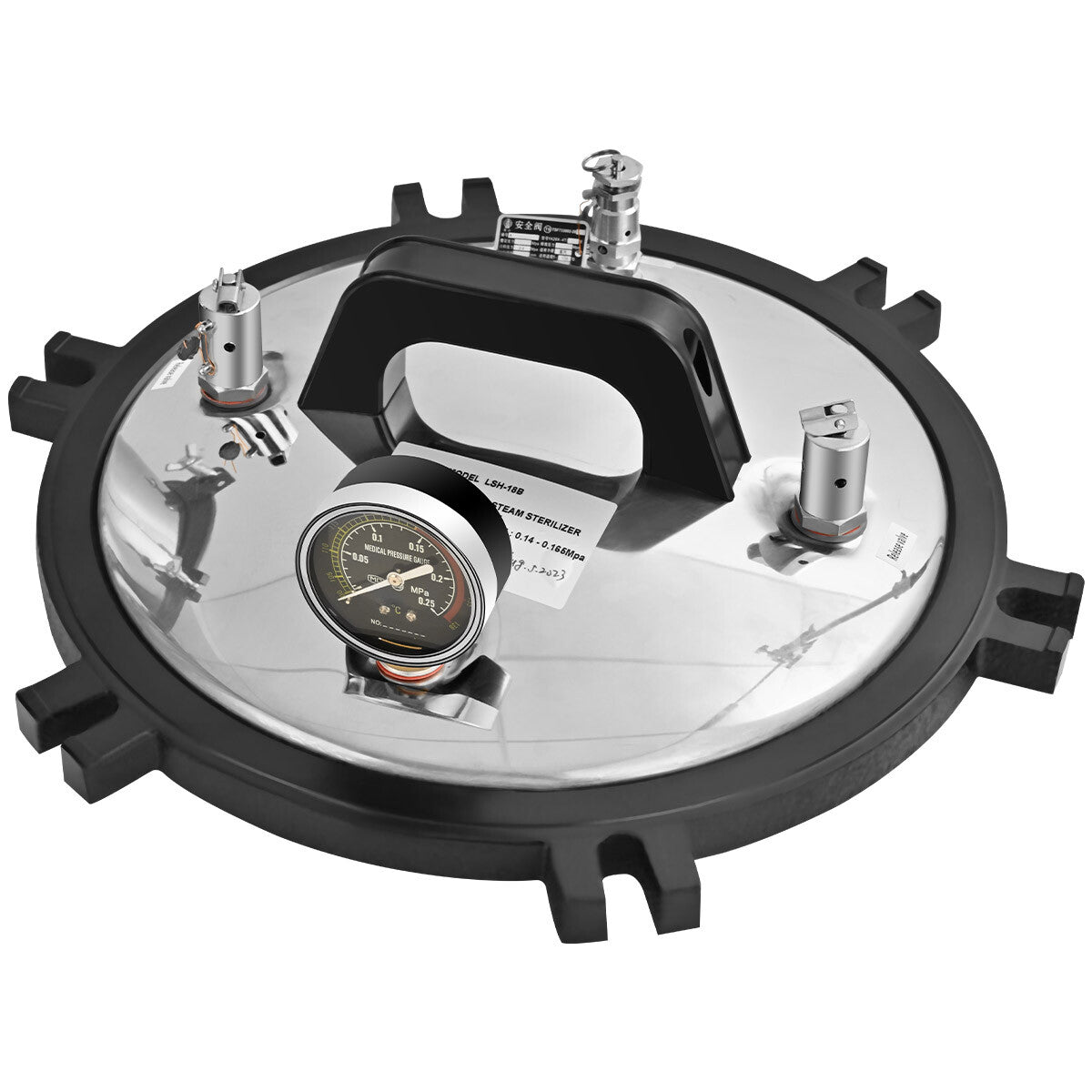

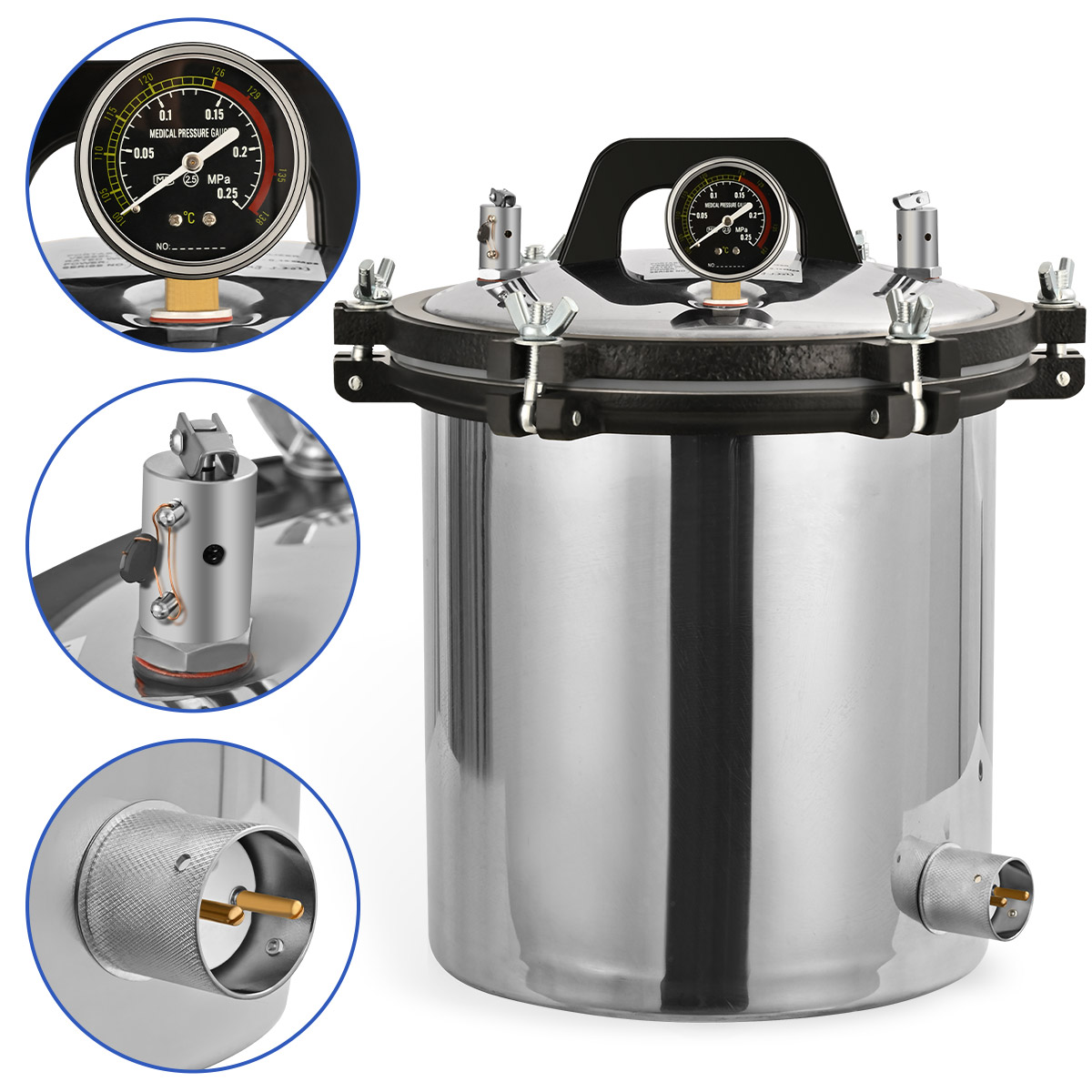

• Safety Controls: Equipped with safety valve, air releasing valve, and pressure gauge showing both pressure and temperature for safe and convenient operation

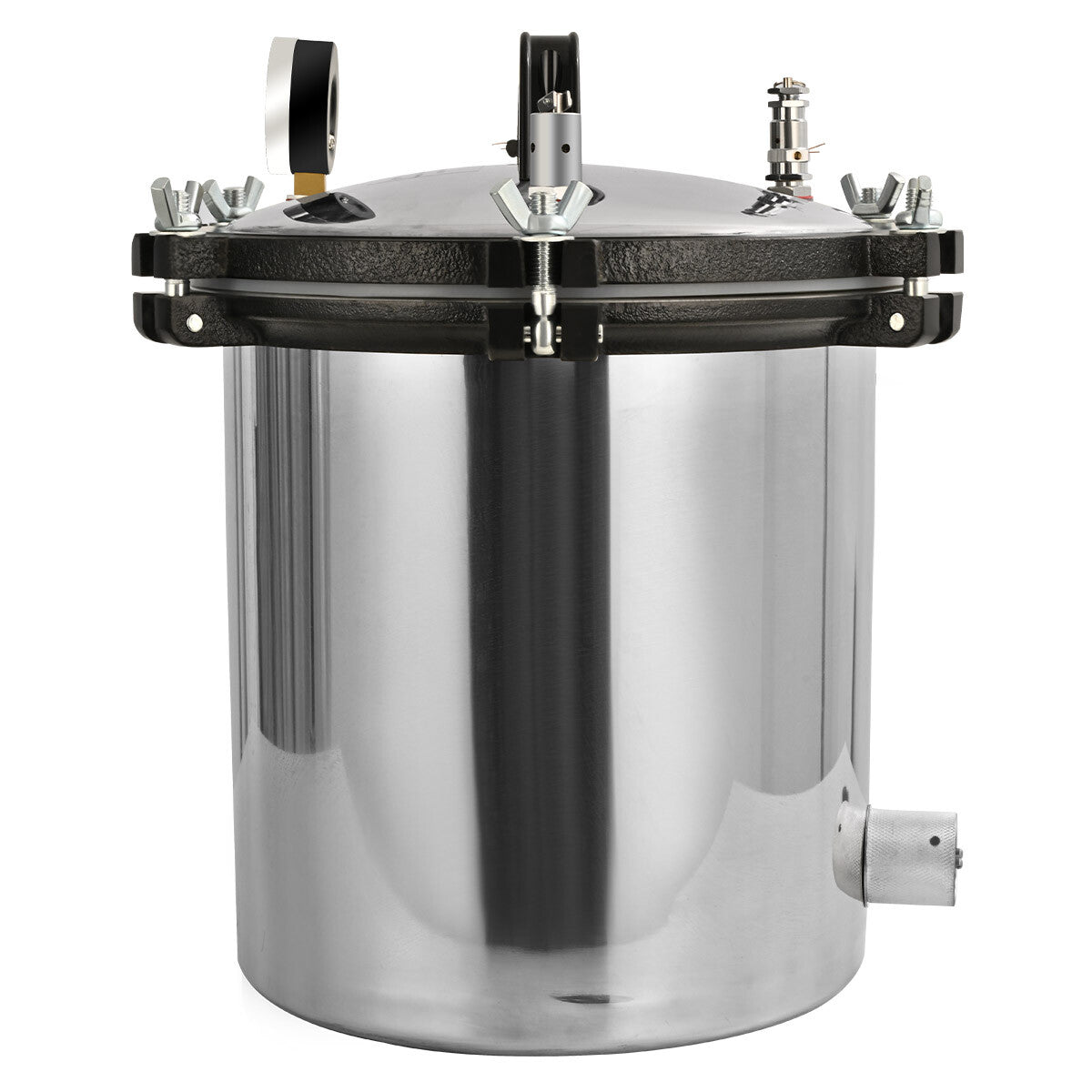

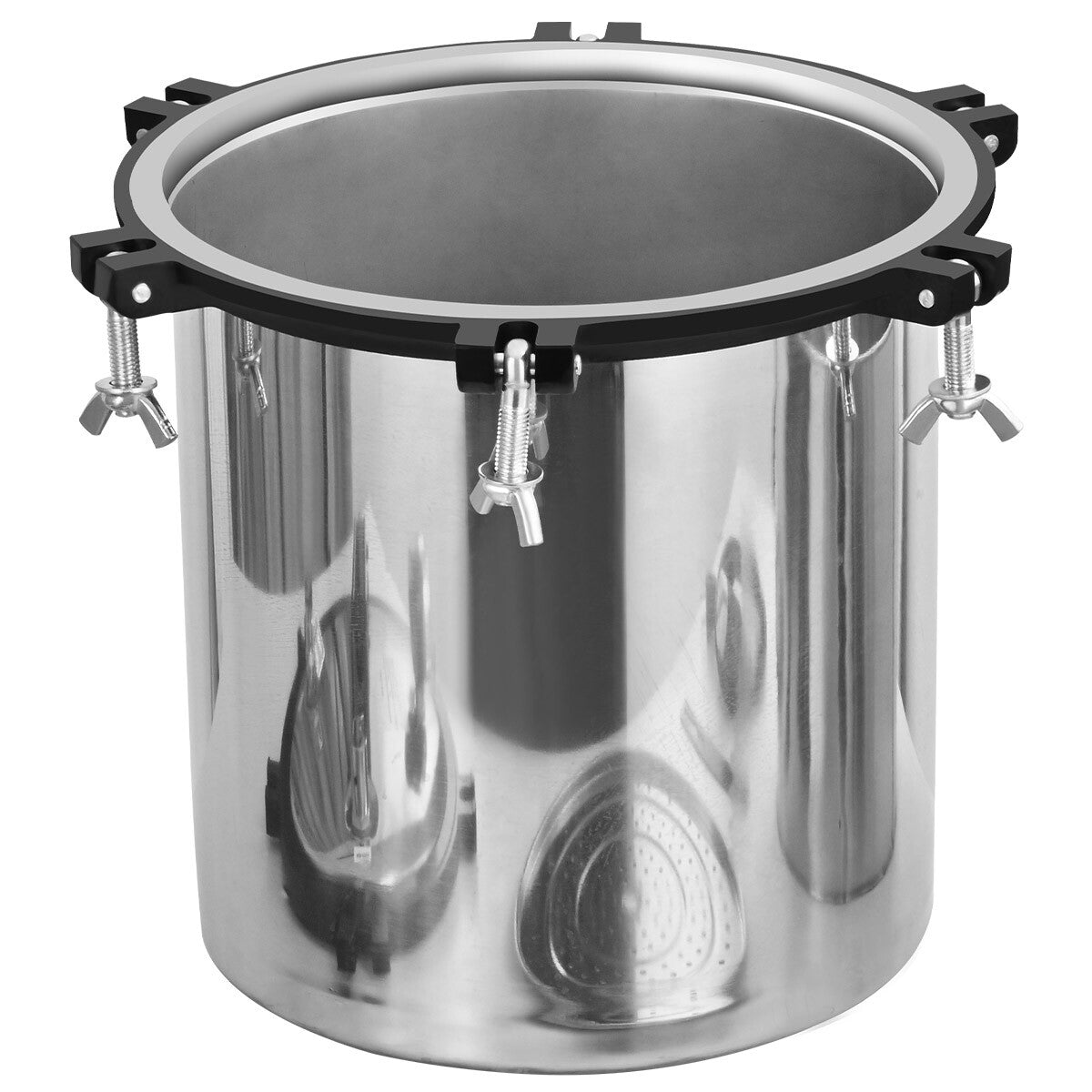

• Reinforced Body: Thickened pot body with iron flange reinforcement for durability

Specifications

• Model: LSH-18

• Power: 2 kW

• Voltage: 110V

• Material: Stainless Steel

• Color: Silver

• Sterilizing Capacity: 18L (0.018 m³)

• Inner Pot Dimensions: Diameter 11 in (28 cm), Height 9.3 in (23.5 cm)

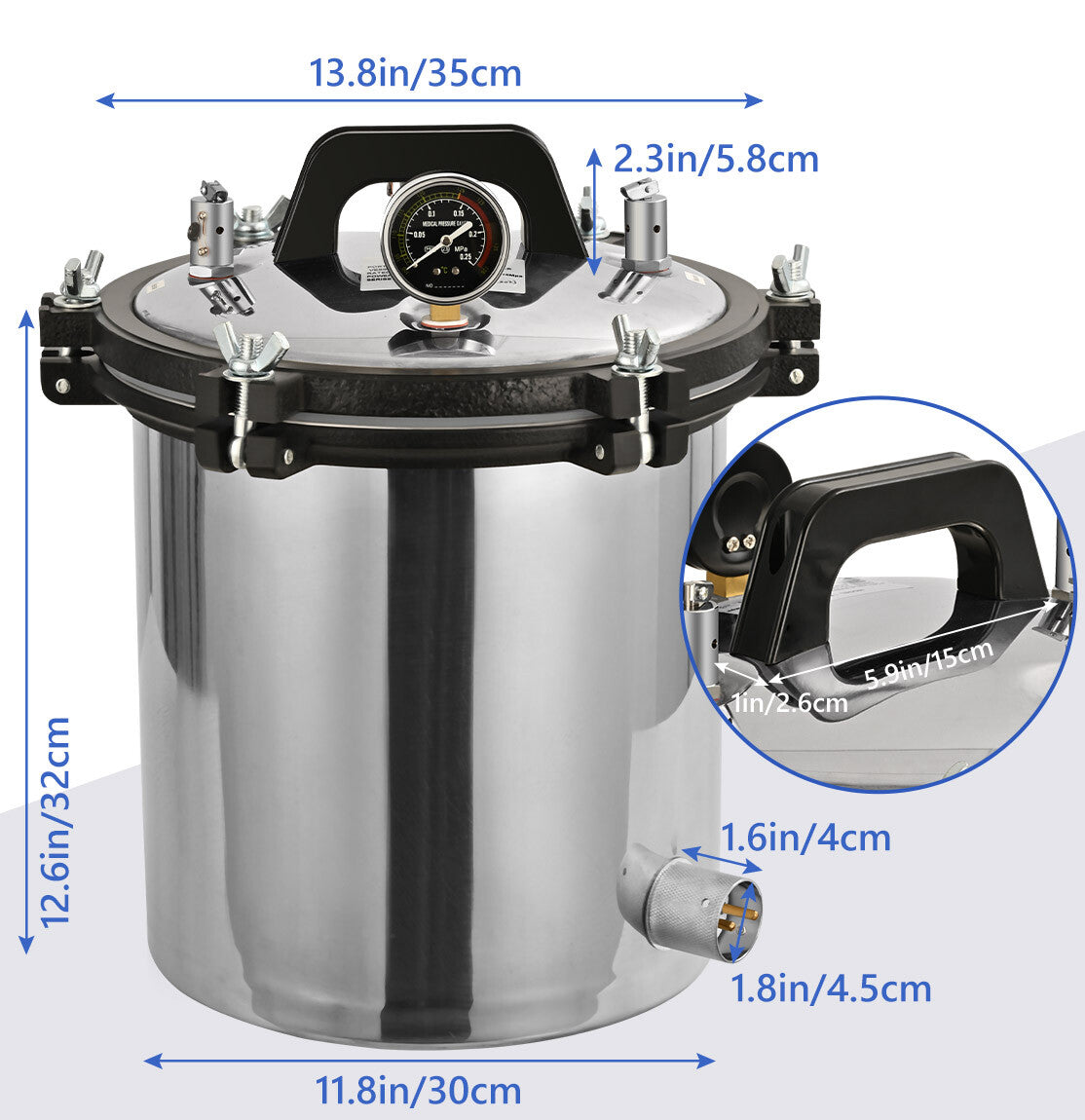

• Outer Pot Dimensions: Diameter 12 in (30 cm), Height 13 in (32 cm)

• Operating Pressure: 70–106 kPa

• Overpressure Auto-Discharge: 0.14–0.16 MPa

• Max Safe Pressure: 0.165 MPa

• Max Temperature: 259°F (126°C)

• Gross Weight: 50 lbs (22.7 kg)

• Package Size: 16 × 15.4 × 14 in (41 × 39 × 35.5 cm)

How to Use

1. Place the sterilizer on a stable, flat surface.

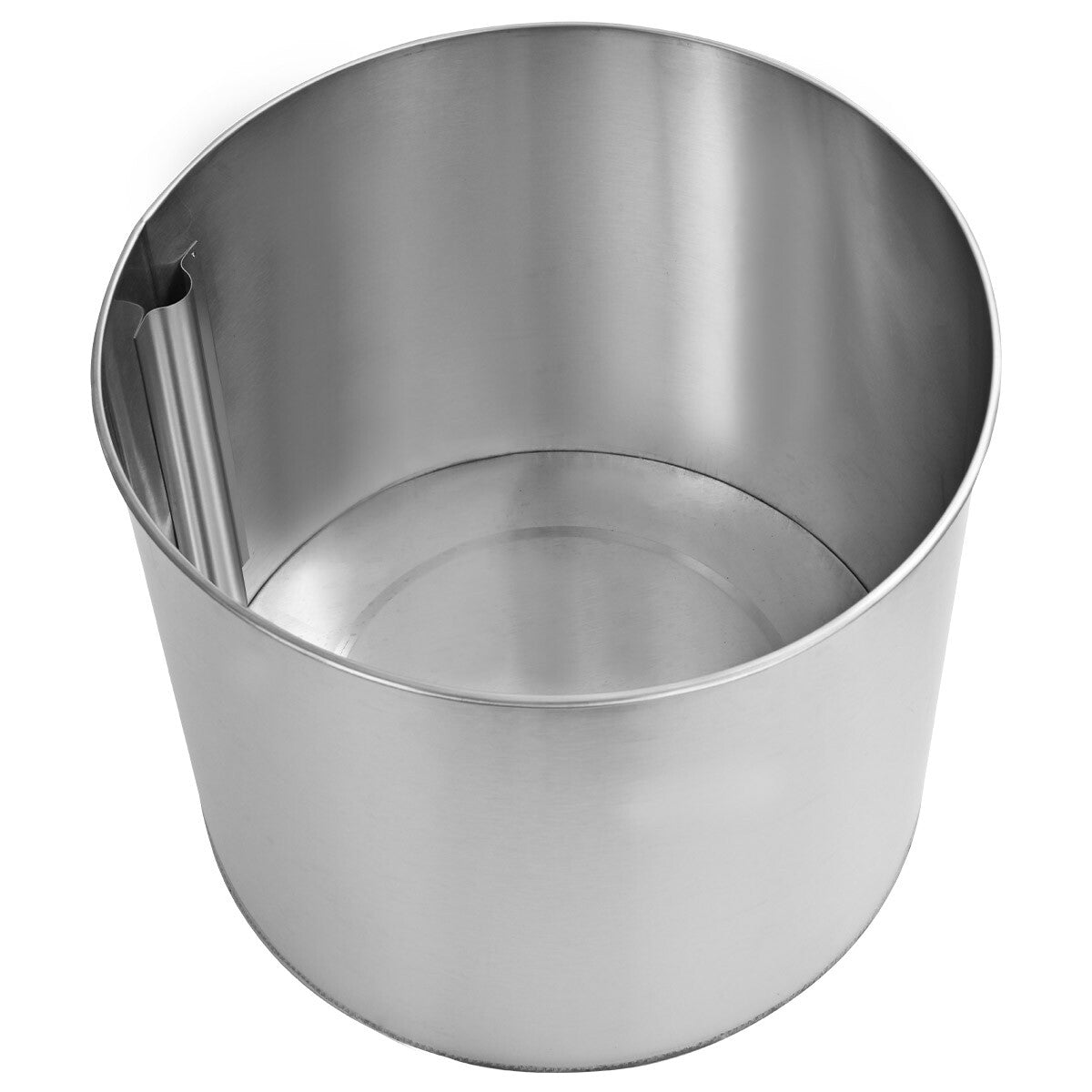

2. Open the lid and remove the inner tank to check the heating tube. Add at least 3.5L of water above the heating tube to prevent damage.

3. Arrange items to be sterilized inside the chamber with gaps between them, avoiding blocking the steam vents and valves. Close and secure the lid tightly.

4. When the temperature reaches 105°C, open the air releasing valve to vent cold air. Close the valve when only hot steam escapes.

5. The safety valve will automatically release excess pressure between 0.14–0.16 MPa to maintain safe operation.

6. After sterilization, unplug the unit. Wait 3 minutes, then release pressure by opening the air valve until the gauge reads zero before opening the lid.

Important Notes

• Maintain water level 3–5 cm (1.2–2 inches) above the triangular support to avoid dry heating and damage.

• Do not exceed maximum pressure; stop use immediately if the pressure gauge reaches 0.165 MPa and the safety valve fails to activate.

• Ensure the pressure gauge needle is at zero before use; repair or replace if not. Calibration is recommended 1–2 times per year.

• Replace the lid gasket promptly if it becomes worn or hard to maintain an effective seal.

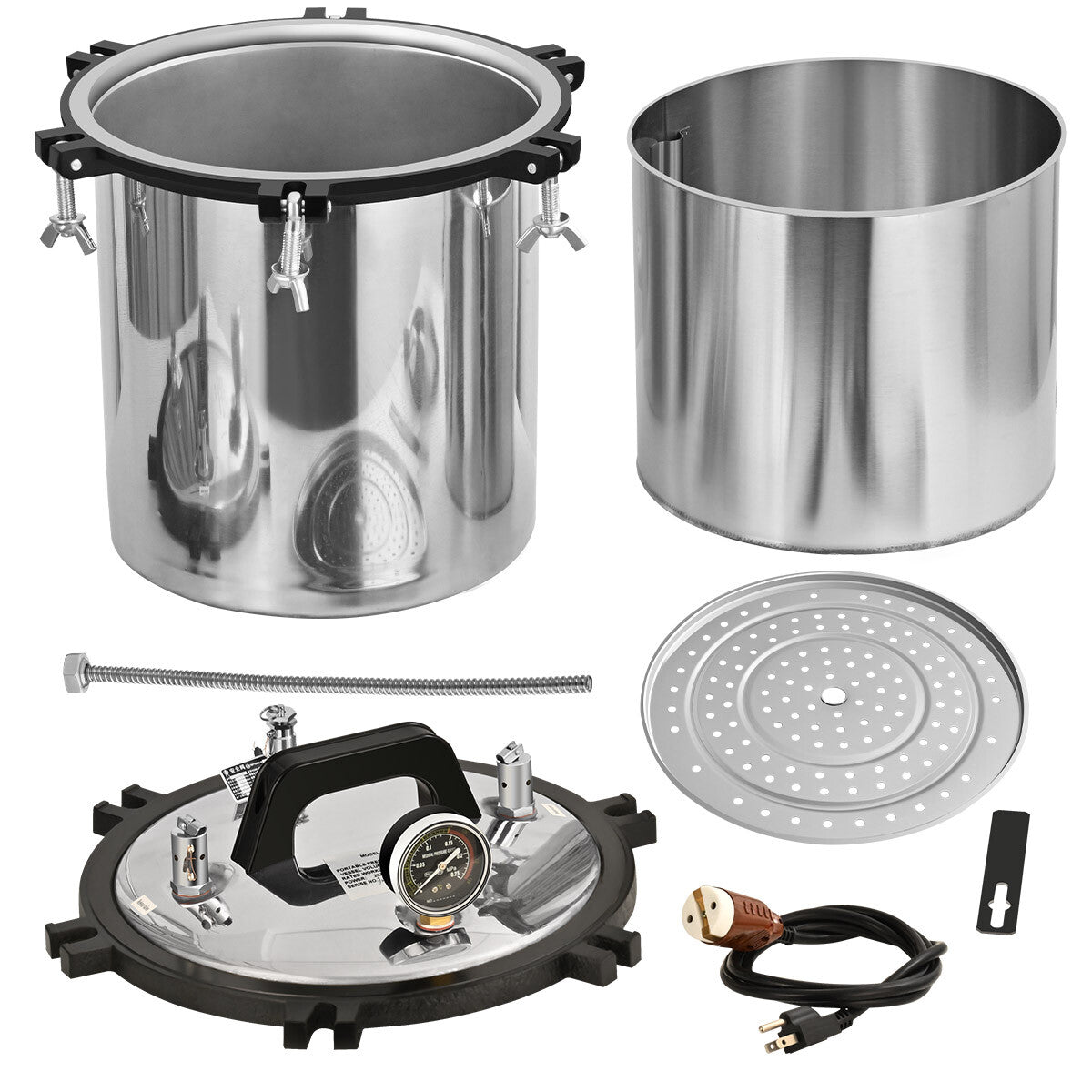

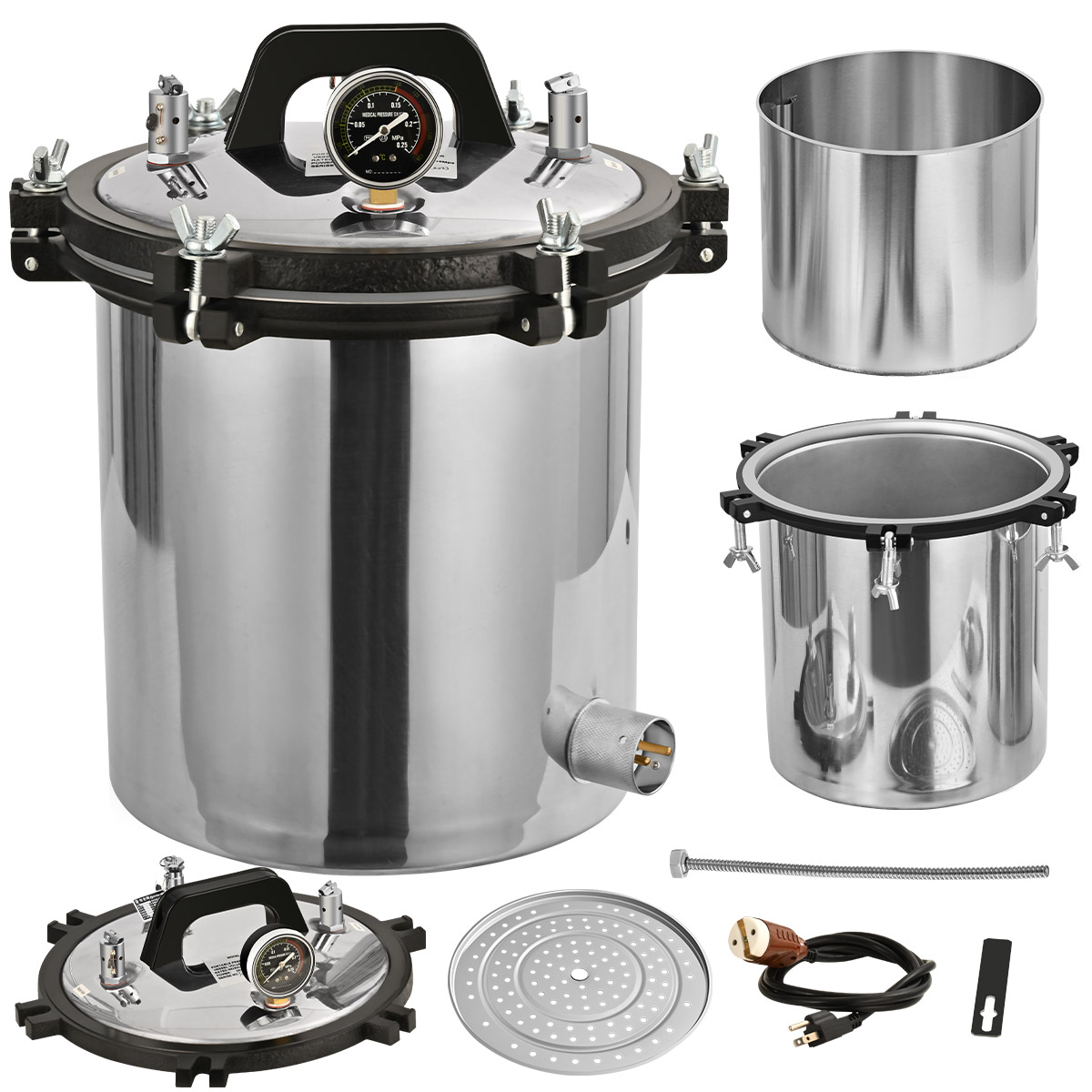

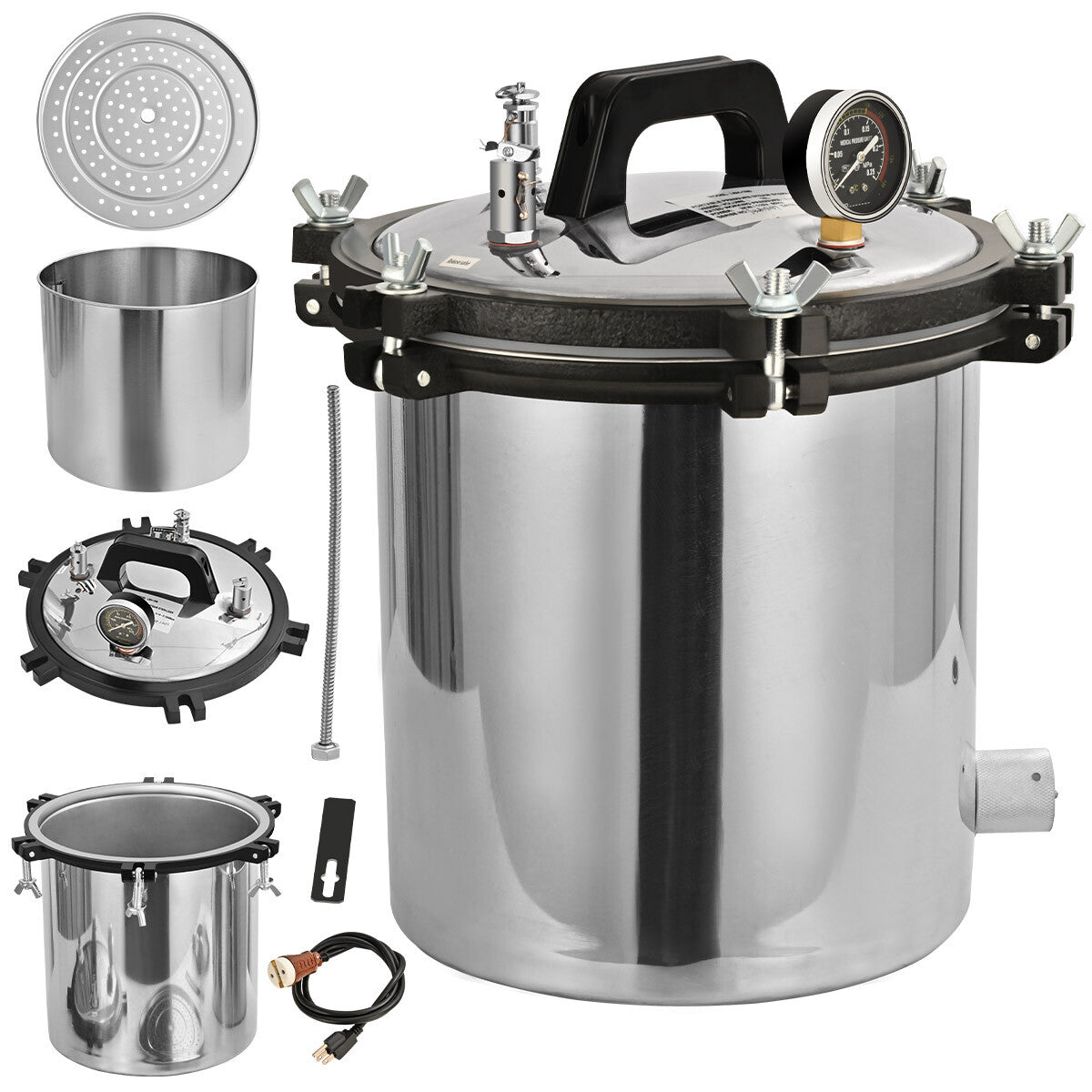

Package Includes

• 1 × 18L Pressure Steam Sterilizer

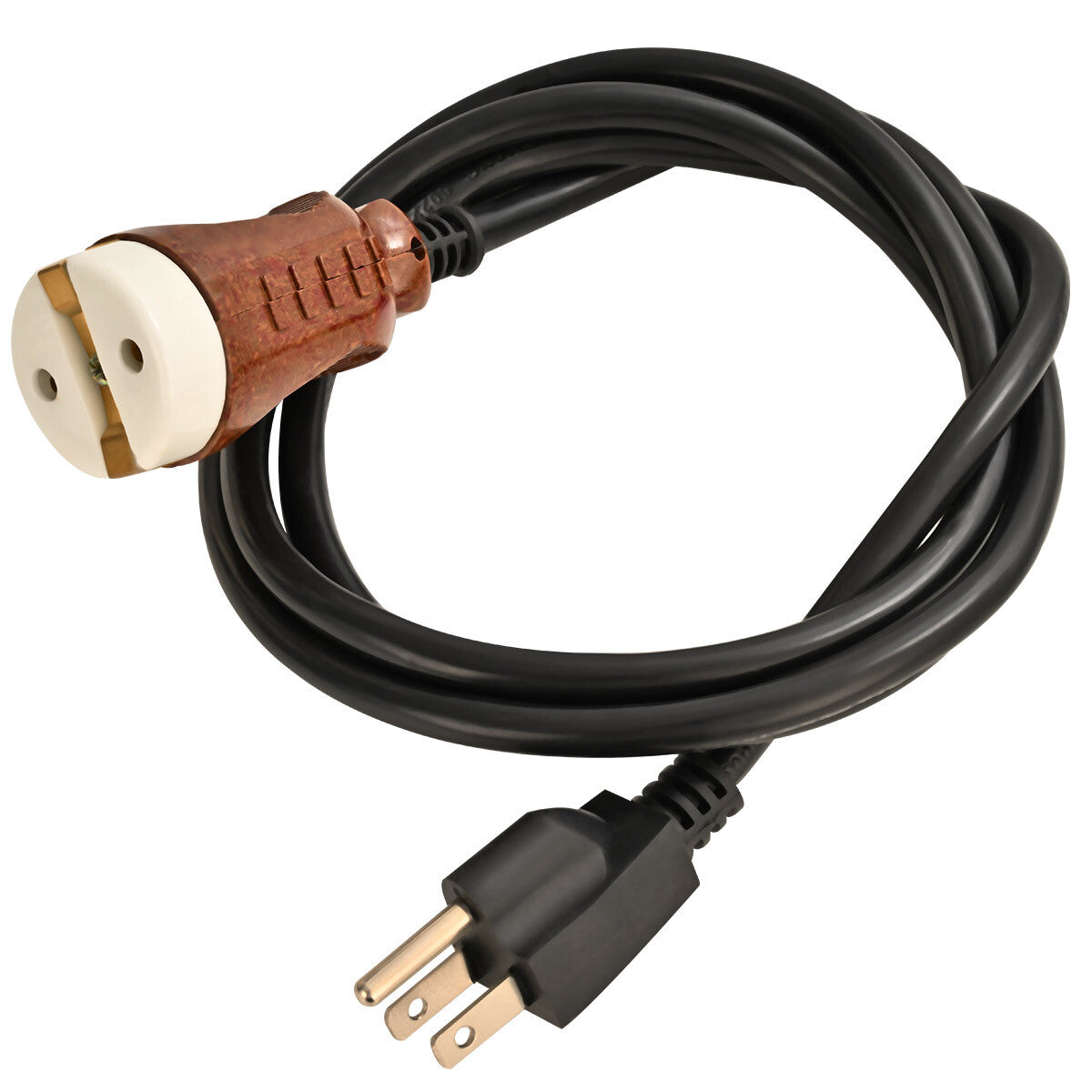

• 1 × Power Cord

• 1 × User Manual

This 18L steam autoclave sterilizer offers a dependable, energy-efficient, and safe solution for sterilizing medical and laboratory equipment quickly and effectively.
