Meubon

Hyperbaric Oxygen Chamber I 1.3ATA I 2ATA I 3ATA I For Home Use I Hospital Use Model MUDR3W

$86,000.00 USD
$93,000.00 USD $86,000.00 USD
SAVE 7% SOLD OUT

In stock

Hyperbaric Oxygen Chamber I Luxurious Narrow Body Square Cabin Style HBOT Chamber I For Home & Hospital Use I 2ata/3ata Model MUDR3W


Delivery time: 3 weeks


Packaging: Comes assembled and packaged in 1 box. We put the oxygen concentrator cushion and air conditioner inside the chamber.



Details

This is hard chamber which is a 1.3ata/2ata/3ata model. The chamber can not be detachable, so the packing size is big as you can see from the picture.
The package comes complete with oxygen concentrator and air compressor.

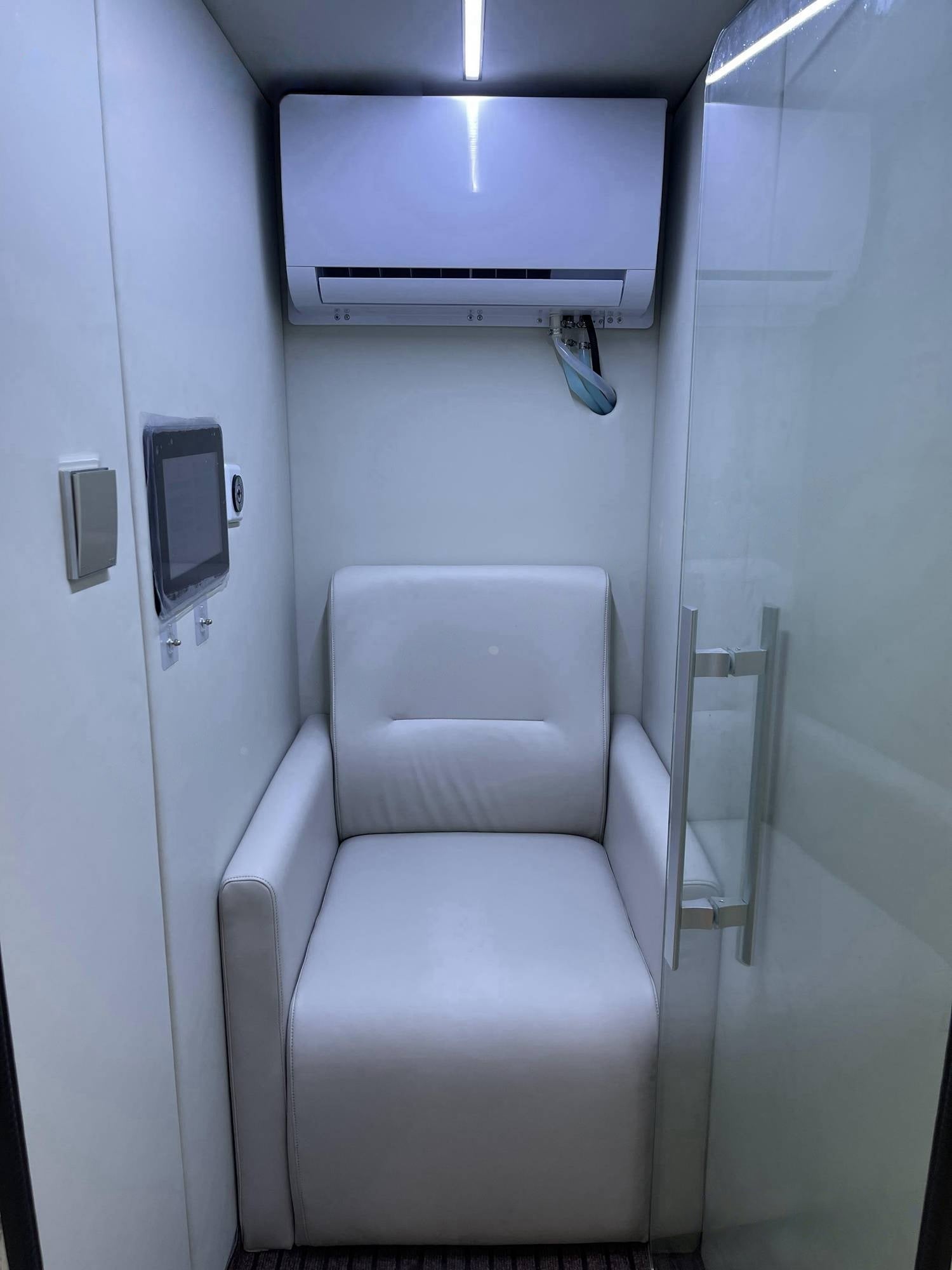

This oxygen chamber comes with one sofa, telephone intercom and air conditioner.
Ideal for 1 person use

The oxygen purity of oxygen concentrator is about 96%. After dispersion inside the chamber, the oxygen purity is about 36% which is higher than the oxygen percentage in the air.

But if you still want higher oxygen purity, the user can wear the face mask to inhale the oxygen directly.

Features of the chamber:

1). The interior space is spacious without feeling oppressive, Suitable for claustrophobic users.
2) . The cabin is firm and can be decorated according to your own preferences
2) . Interphone system for two-way communication.
3) . Automatic air pressure control system, the door is sealed by pressure.
4) . Control system combines of air compressor, oxygen concentrator.
5) . security measures: With Manual safety valve and automatic safety valve,
5) . Delivers 95%±3% oxygen under pressure via an oxygen headset/facial mask.
8) . Material safety and environmental: protection Stainless Steel Material.

Features of the Oxygen System:

Size: 2.2ft *1.2ft* 2ft
Control system: CNC system
Power Supply: AC220V-50Hz or customize
Power: 1200W
Max airflow: 205L/min
Oxygen Purity: 95%±3%
Min airflow: 45L/min

Oxygen system: air filter
compressor: Oil-free compressor air delivery system


Oxygen system: air filter
compressor: Oil-free compressor air delivery system

Rated pressure for the 1.3ata chamber: 130kpa/1.3ata/20psi

Rated pressure for the 2ata chamber: 200kpa/2ata/29.4psi

Rated pressure for the 3ata chamber: 300kpa/3ata/44psi

Specifications

Cabin material: Double-layer stainless steel metal composite material + interior soft decoration
Cabin size: 3.4ft x 2ft x 5.5ft
Door size: 1.7ft(Width)*4.5ft(Height)
Dimensions of the cabin: 3ft* 2ft* 5.5ft
Cabin configuration: One Small size Sofa, humidification bottle, oxygen mask, nasal suction
Diffuse oxygen concentration:≤30%
Working pressure in the cabin:10-30kpa adjustable
Working noise:＜30db
Temperature in the cabin: Ambient temperature +3°C (without air conditioner)
Safety Facilities: Manual safety valve, automatic safety valve
Floor area:1.05㎡
Cabin weight:880LBS
Floor pressure:385kg/㎡

Shipping

Scheduled freight delivery to your address in 21 days

There have 1 carton in total for this model. We put the oxygen concentrator inside the chamber.
The packing size is 145cm*88cm*210cm and the weight is about 1005lbs
