Enhance Ophthalmic Procedures with Our Portable Ultrasonic Phacoemulsifier: Explore Advanced Phaco Emulsifier Ultrasound Machine Model MOD1AP

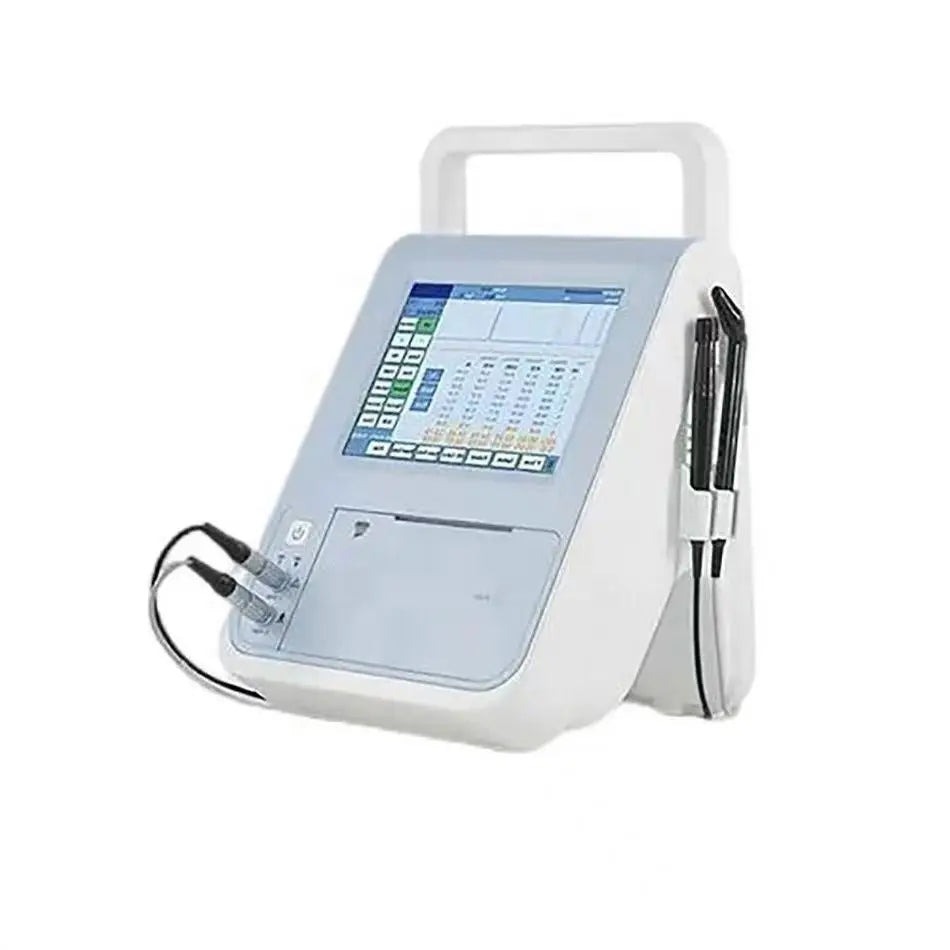

Introducing the Portable Ultrasound Scanner for Ophthalmology: MOD1AP

Elevate your ophthalmic diagnostics with the MOD1AP, a versatile device designed to meet the demands of modern eye care. Whether you require precise biometry, pachymetry, or both, this portable ultrasound scanner delivers exceptional performance in a compact package.

Features:

• D1-A Biometer: Equipped with a 10.0MHz A probe and gage block for A-scan/Biometer functionality, this unit ensures accurate measurements of the anterior chamber depth, lens, vitreous, and axial length. The touch screen pen facilitates effortless navigation and operation.

• D1-P Pachymeter: Featuring a 20.0MHz angled probe and gage block, this component enables precise corneal thickness measurements, crucial for various ophthalmic procedures. The touch screen pen enhances user interaction and control.

• D1-AP Biometer/Pachymeter: Combining the functionalities of both biometry and pachymetry, this unit offers versatility and efficiency. With a 10.0MHz A probe, 20.0MHz angled probe, and two types of gage blocks, it caters to diverse diagnostic needs with ease.

Specifications: Biometer:

• Probe Frequency: 10 MHz
• Resolution: 0.01mm
• Accuracy: ±0.02mm
• Gain Adjustable: 0-120dB
• Measurement Range: 15~35 mm (velocity 1640m/s)
• Examination Modes: Normal, Aphakic, Pseudophakic, Dense Cataract
• Measurement Mode: Immersion and Contact, Auto and Manual
• IOL Formulas: SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS
• Power Requirement: AC 100-240V 50-60Hz | Rate Power: <= 45 VA
• Dimension: 200168165mm (LWH)

Pachymeter:

• Probe Frequency: 20 MHz
• Resolution: 1um
• Measurement Range: 0.23~1.3mm
• Accuracy: ±5um
• Power Requirement: AC 100-240V 50-60Hz | Rate Power: <= 45 VA
• Dimension: 200168165mm (LWH)

Empower your ophthalmic practice with the OD1-AP Portable Ultrasound Scanner, delivering precise measurements and advanced functionality in a convenient, portable design.
