90 Degree Peel Adhesion Testing Machine for Accurate Peel Strength Assessment I Model DZ357

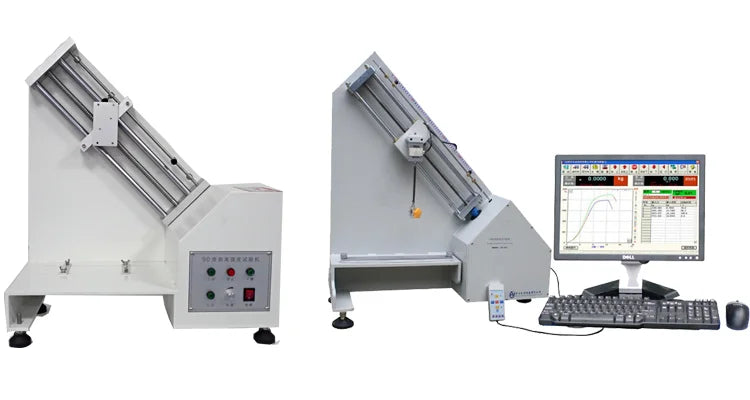

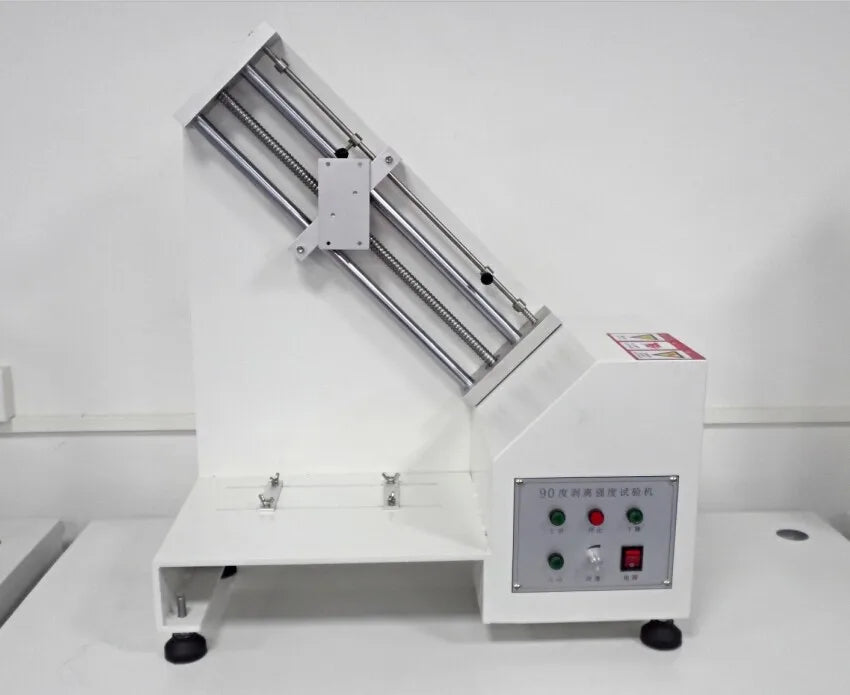

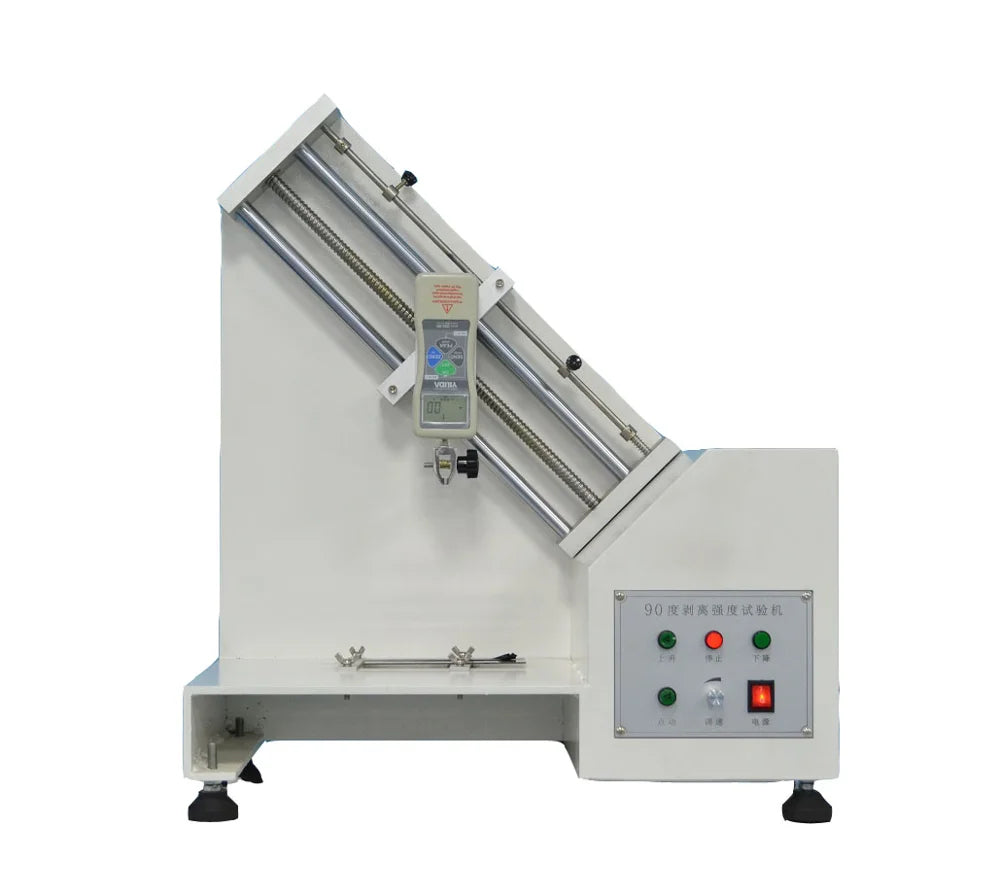

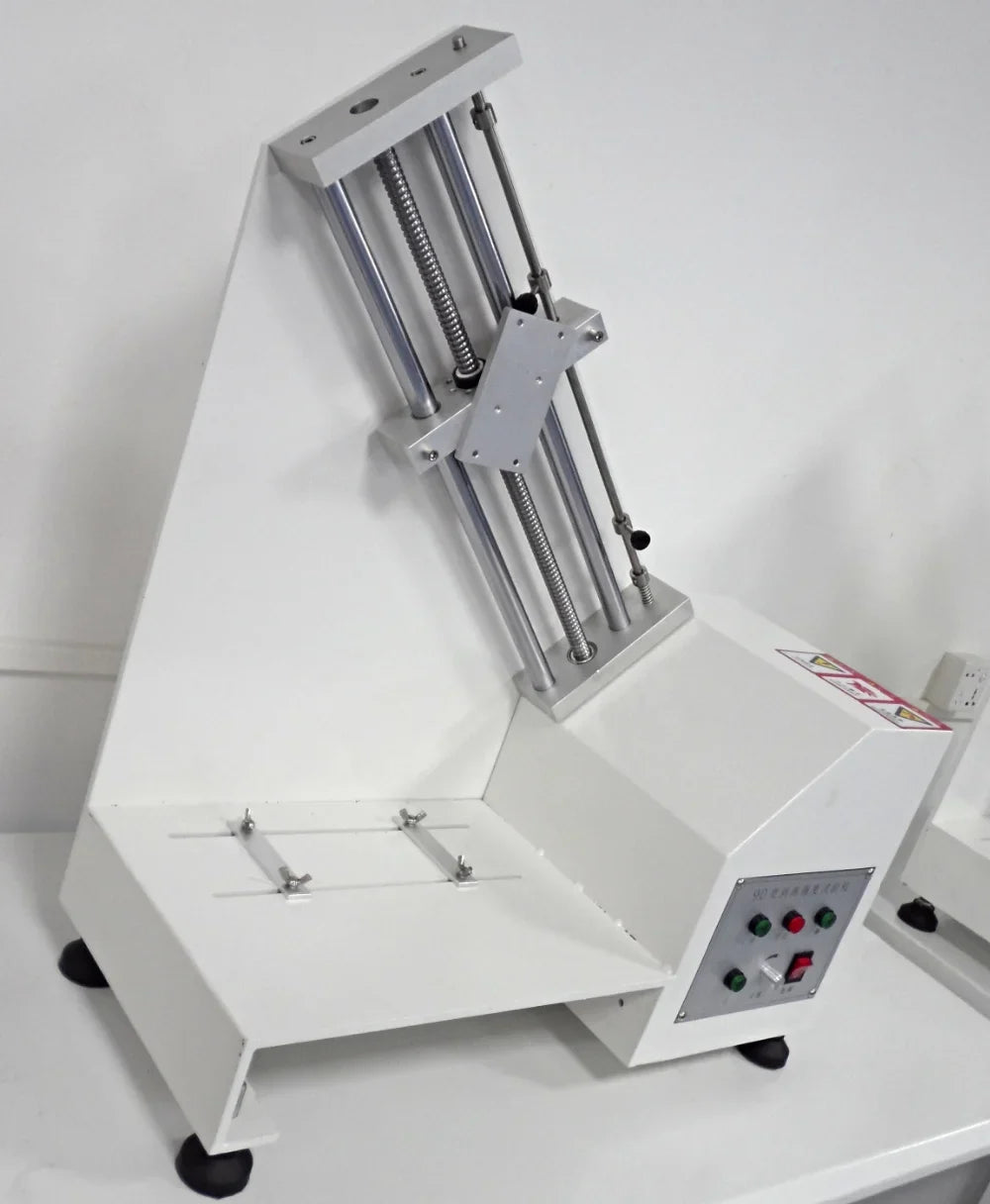

Introducing Our 90 Degrees Adhesive Sticker Peeling Test Machine, designed for assessing the adhesion of copper foil circuits on PCBs or the surface adhesion of foil, aluminum foil, tapes, and other materials. By peeling materials at a 90-degree angle, this tester accurately measures peeling strength, serving as a fundamental tool for quality management and assessing physical properties.

Key Technical Parameters:

• Model: 90 Degrees Adhesive Sticker Peeling Test Machine
• Speed: 5-300mm/min
• Angle: 90 degrees
• Specimen Weight/Load: 3kg/5kg/10kg/20kg/30kg/50kg
• Overall Size: 660x340x730mm
• Weight: 85lbs
• Power: AC 1 phase 110v 220V 2A

Enhance your quality control processes with our reliable and versatile adhesive peeling test machine.

• Model Number : DZ357
• Power : Electronic, 1,AC 110v 220V,2A
• Model : DZ-357
• Capacity : 3/5/10/20/30.50kg
• Peeling angle : 90°
• Size : (L*W*H)660*310*730mm
• Weight : 85lbs
• Product name : 90° peel tester
• Warranty : 18 months
