DNA Test Machine - PCR Thermal Cycler Lab System for Clinical & Analytical Use

DNA Test Machine - Thermal Cycler PCR Lab System for Clinical & Analytical Applications

This advanced DNA testing thermal cycler offers a compact design with a simple, user-friendly interface. Leveraging the latest in semiconductor technology, it ensures precise amplification with exceptional temperature uniformity and effective edge heat conduction.

Key features include:

• Precision Temperature Control: Built-in multi-channel cooling, uniformly distributed sensors, and precise program temperature control enhance PCR accuracy.

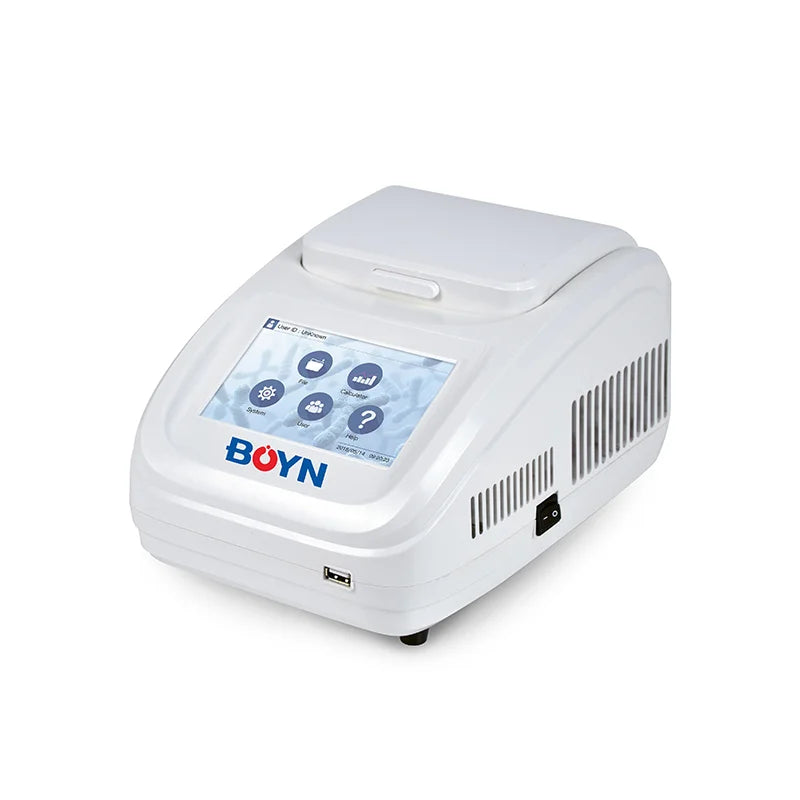

• High-Resolution Display: The 5-inch TFT touchscreen allows for rapid file editing, real-time visual display of temperature curves, and easy setup.
• Gradient Calculator: Automatically calculates optimal annealing temperatures for diverse samples, fine-tuning PCR reaction conditions.
• User & Data Security: Features user login, rights management, password protection, and robust data storage (over 100 file capacity).

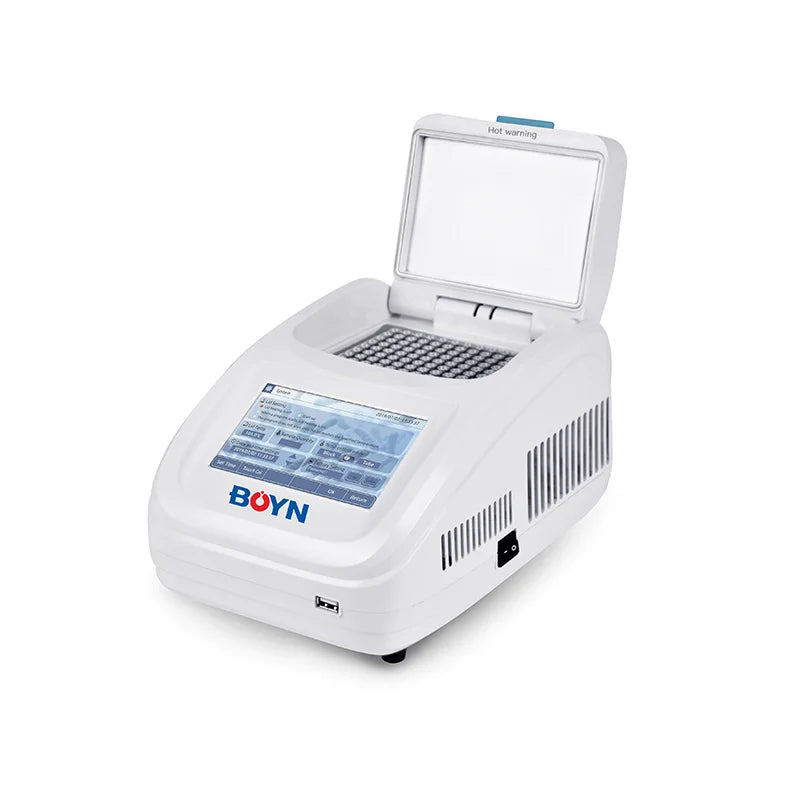

• Innovative Hot Cover Design: Adapts to various test tube heights, maintaining optimal testing conditions with adjustable lid temperature and working modes.

Product Specifications:

• Temperature Range: 4–99.9℃ (constant temp. at 4℃)

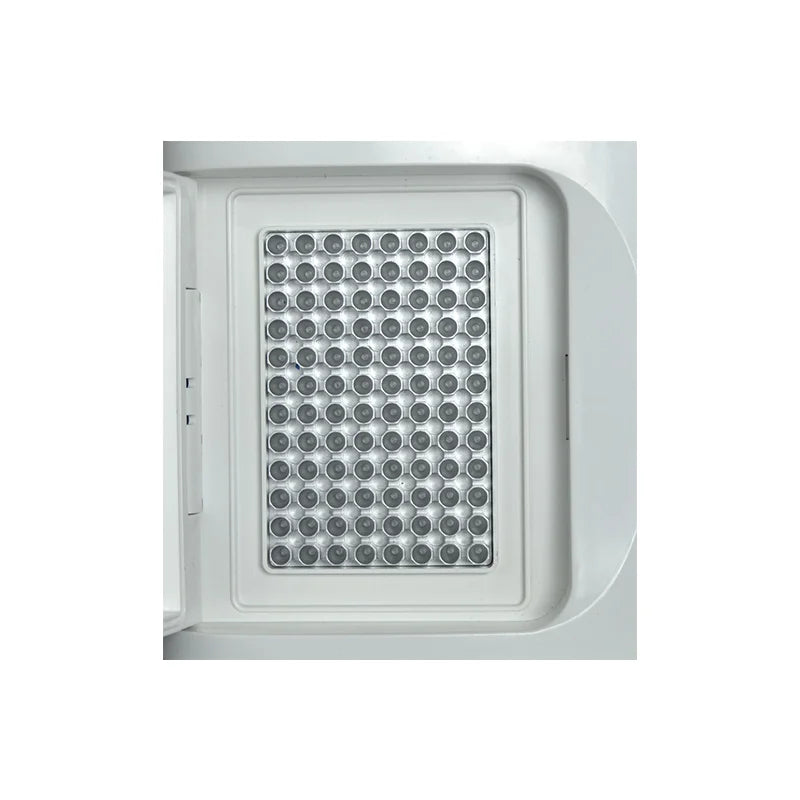

• Sample Capacity: 96 x 0.2 ml / 384 x 0.04 ml
• Max Heating/Cooling Rates: 4.5℃/s and 4℃/s
• Uniformity/Accuracy: ±0.25℃ / ±0.20℃
• Display: 5-inch LCD, 800x480 pixels
• Storage: USB 2.0 interface, stores over 100 programs
• Dimensions: 205 x 280 x 160 mm, Weight: 9.5LBS

Ideal for clinical and analytical lab applications, this thermal cycler provides robust performance for consistent PCR results.
