Meubon

Digital Spectrophotometer & Colorimeter D/8 – Color Paste Pigments Color Measuring Instrument

$2,800.00 USD
$2,899.60 USD $2,800.00 USD
SAVE 3% SOLD OUT

In stock

Use: LS177 digital spectrophotometer


Digital Color Measuring Instrument – Spectrophotometer & Colorimeter for Pigments, Powders, Paint & More

This Digital Spectrophotometer & Colorimeter is a high-precision color measuring instrument designed for evaluating and comparing the color of non-transparent materials such as color paste, pigments, powders, granules, masterbatches, paint, food, and pharmaceuticals. With a 50mm large test aperture and D/8 illumination geometry, it delivers superior accuracy and performance for color quality control and color management across industries.

Equipped with advanced spectral sensors and a 7-inch touchscreen display, this instrument supports multiple color spaces, color difference formulas, and spectral reflectance curve visualization. It also integrates with PC software and a mobile app for real-time measurement, data export, color matching, and report printing.

0

4

5

🔍 Key Features:

  • Professional Color Analysis: Ideal for QC in pigments, plastic, food, paint, and pharmaceuticals.

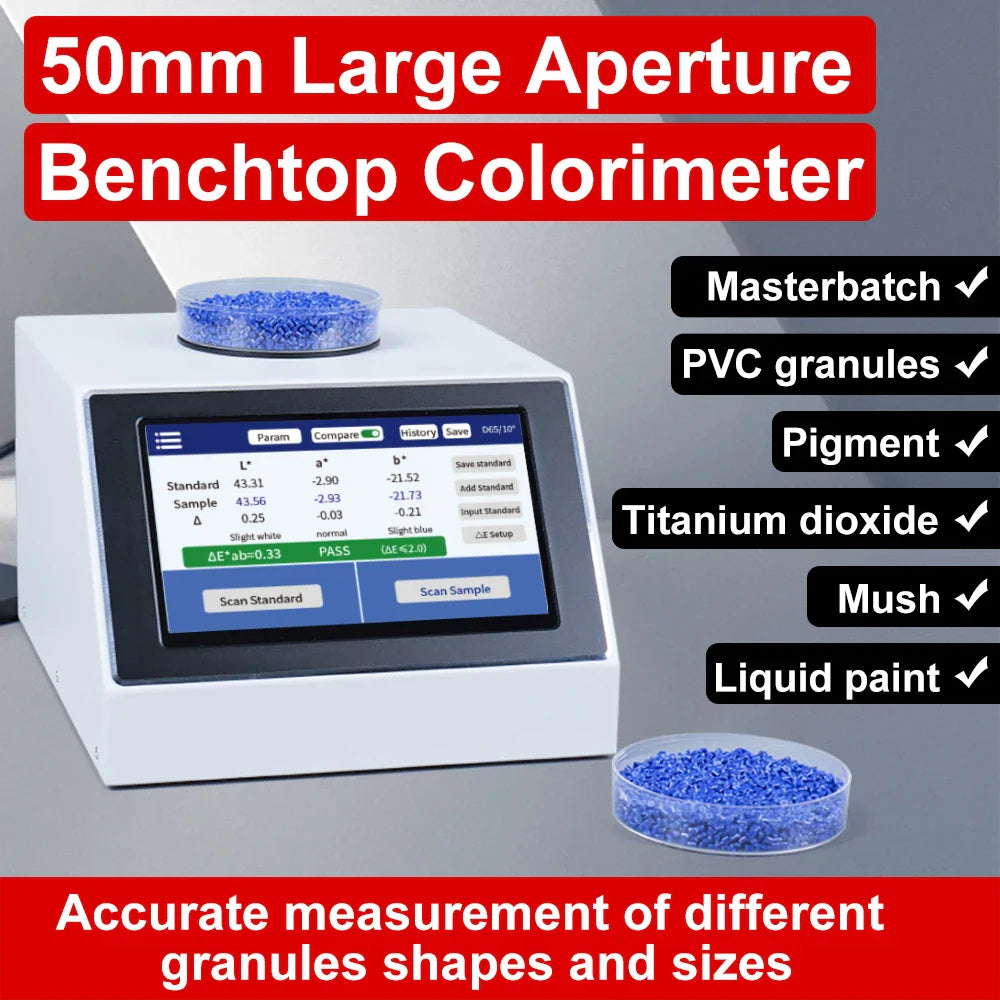

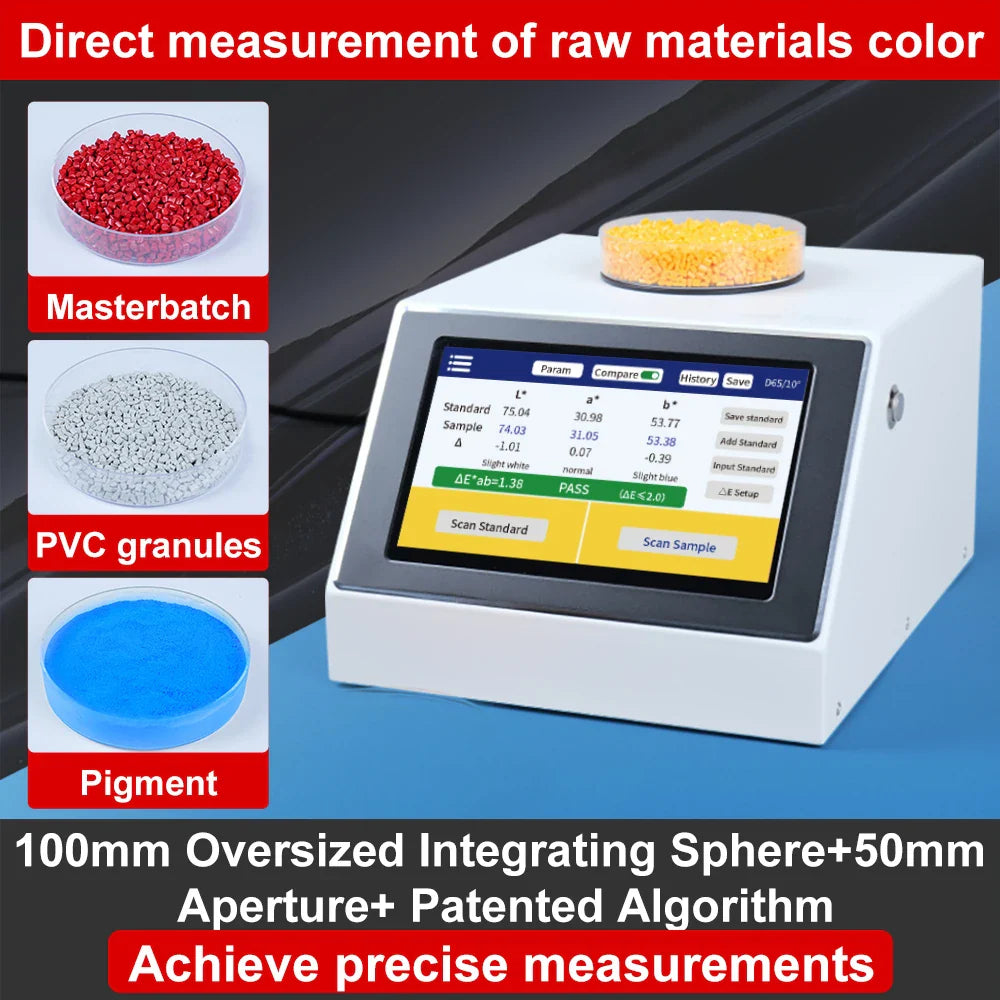

  • Large Aperture & Sphere: 50mm measurement aperture with a 100mm integrating sphere and patented algorithms for high accuracy.

  • High-Precision Measurement: Passes metrology inspections; features <0.03 ΔE*ab repeatability.

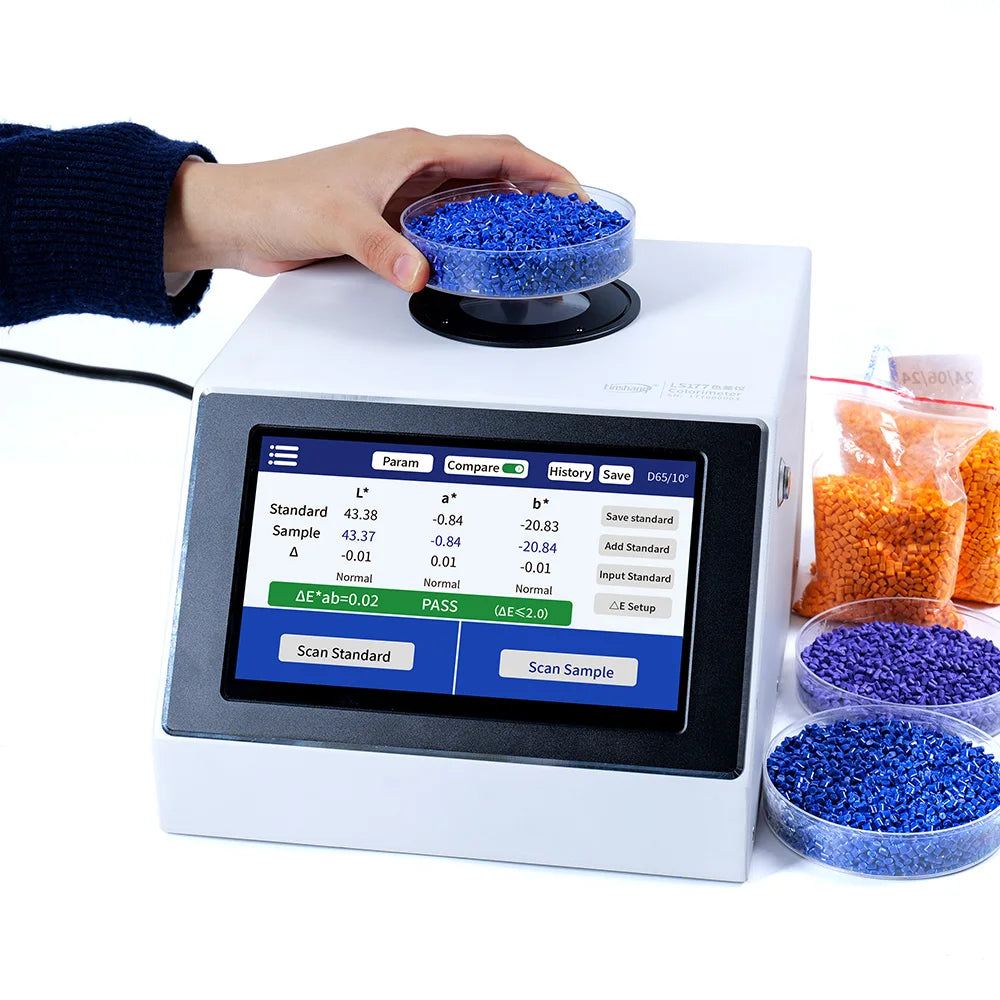

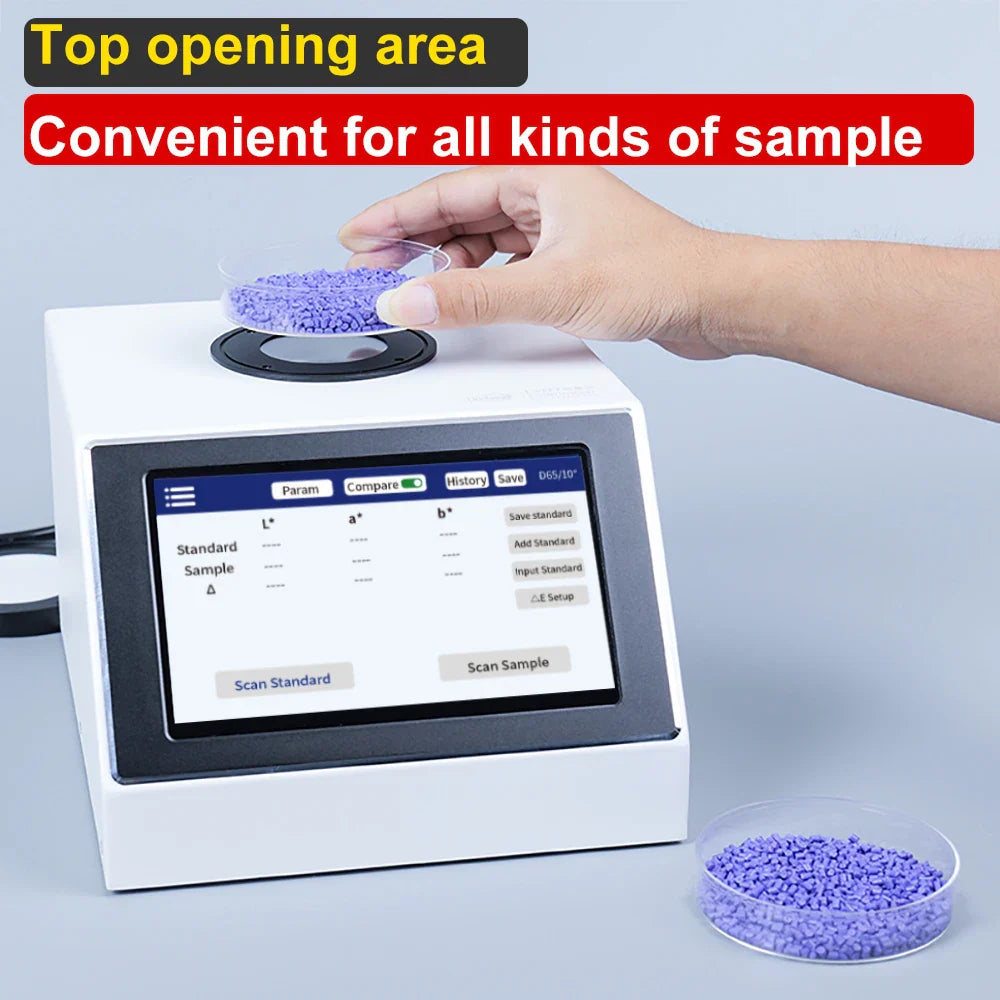

  • User-Friendly Design: Simply place the sample on top and measure with two clicks on the large touchscreen.

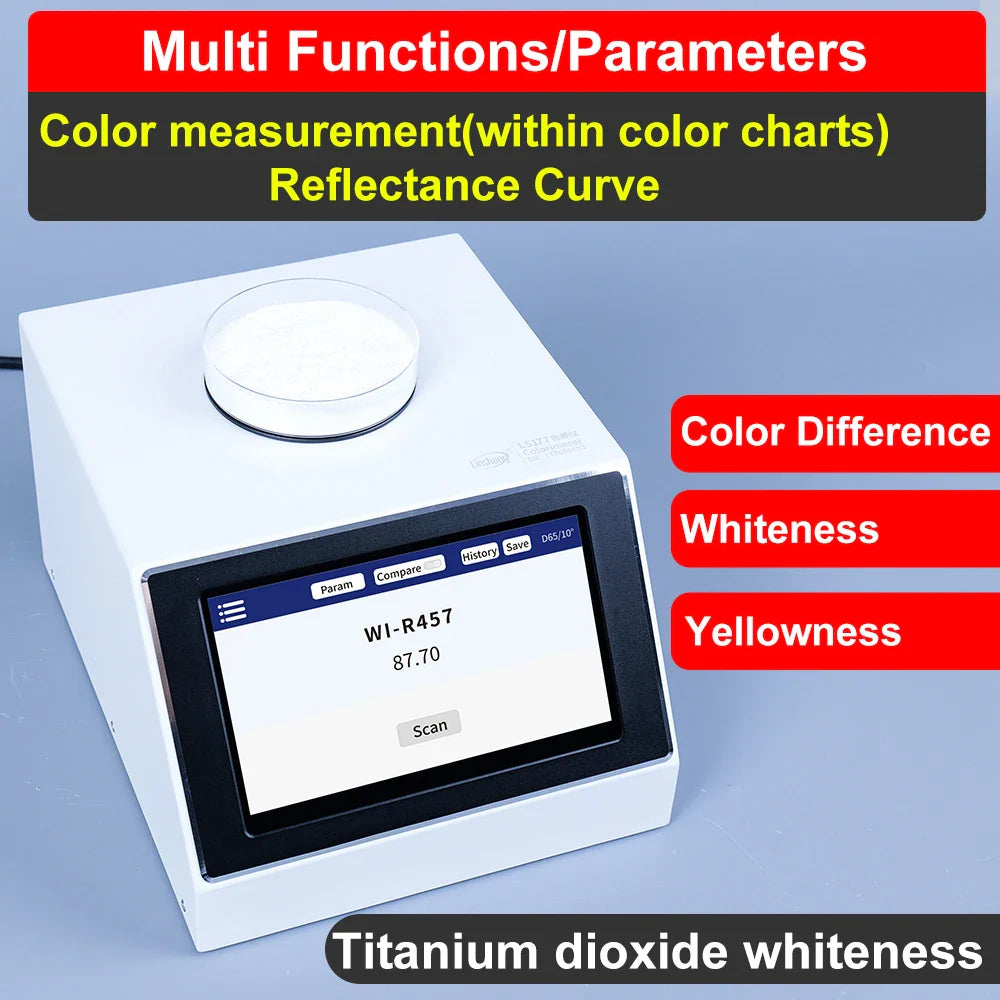

  • Multiple Color Spaces & Formulas: Supports Lab, LCh, Luv, Yxy, CMYK, RGB, whiteness/yellowness indexes, and ΔE* variants.

  • Spectral Reflectance Curve Display: Visualize reflectance across 400–700nm in 10nm intervals.

  • Color Chart Matching: Automatically matches measured color to nearest electronic color chart codes.

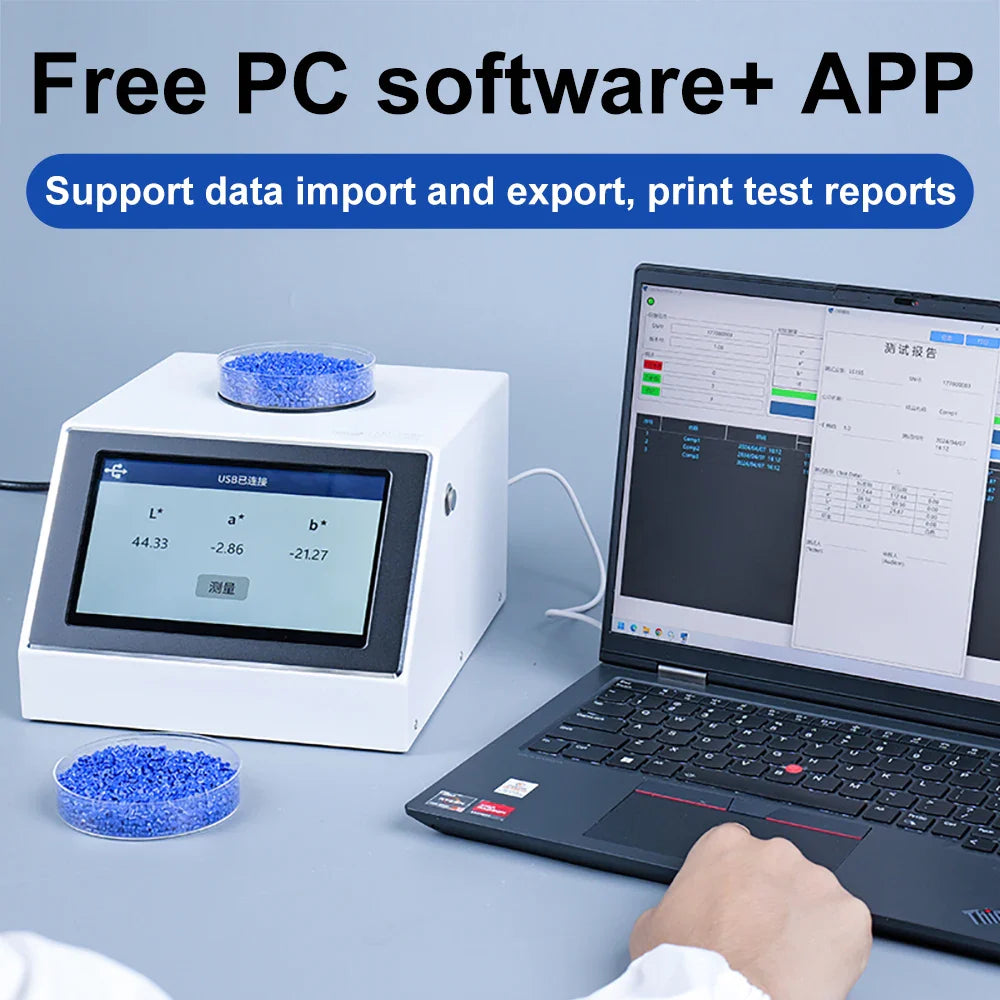

  • Connectivity & Software: USB and Bluetooth for seamless data export, app integration, and color sharing.

  • Report Generation: PC software enables test report printing and result tracking.

📊 Technical Specifications:

Parameter Details
Illumination Geometry D/8 (SCI)
Light Source Full Spectrum LED
Spectral Range 400–700 nm
Spectral Interval 10 nm
Measurement Time ~1.5 seconds
Measuring Aperture 50 mm
Display 7-inch IPS, 1024×600 resolution
Color Spaces Lab, LCh, Luv, CMYK, RGB, Yxy, Whiteness, Yellowness
Color Difference Formulas ΔEab, ΔEuv, ΔE94, ΔE00, ΔEcmc (1:1 / 2:1 / 1.4:1)
Repeatability ΔE*ab ≤ 0.03
Inter-Instrument Agreement ΔE*ab ≤ 0.4
Power Supply 100–277V AC, 50/60Hz
Dimensions 21.1 × 26.4 × 15.5 cm
Weight Approx. 3.29 kg
Data Transfer USB, Bluetooth
Operating Temp 0–45°C, ≤85%RH (no condensation)
Storage Temp -25–55°C, ≤85%RH (no condensation)

Whether you're conducting lab research, industrial manufacturing, or quality assurance, the LS177 Spectrophotometer & Colorimeter ensures fast, reliable, and highly accurate color measurements every time.

  • warranty : 1 Year
  • model number : LS177
  • power : Electronic
  • Illumination geometry : D/8, specular component include (SCI)
  • Spectral range : 400-700nm
  • Spectral interval : 10nm
  • Measuring aperture : 50mm
  • Repeatability : E*ab Within 0.03
  • Dimension : 21.1 * 26.4 * 15.5cm (L * W * H)
  • Weight : About 3.29kg
  • Power supply : 100~277V 0.4A 50/60HZ
  • Display : 7-inch 1024*600 dot matrix IPS color screen
