Digital Haze Meter for Glass, Plastic, Film & Liquid – Clarity & Transmittance Measurement Analyzer

$2,800.00 USD
$3,300.60 USD $2,800.00 USD
SAVE 15% SOLD OUT

In stock

Use: LS155 color haze meter

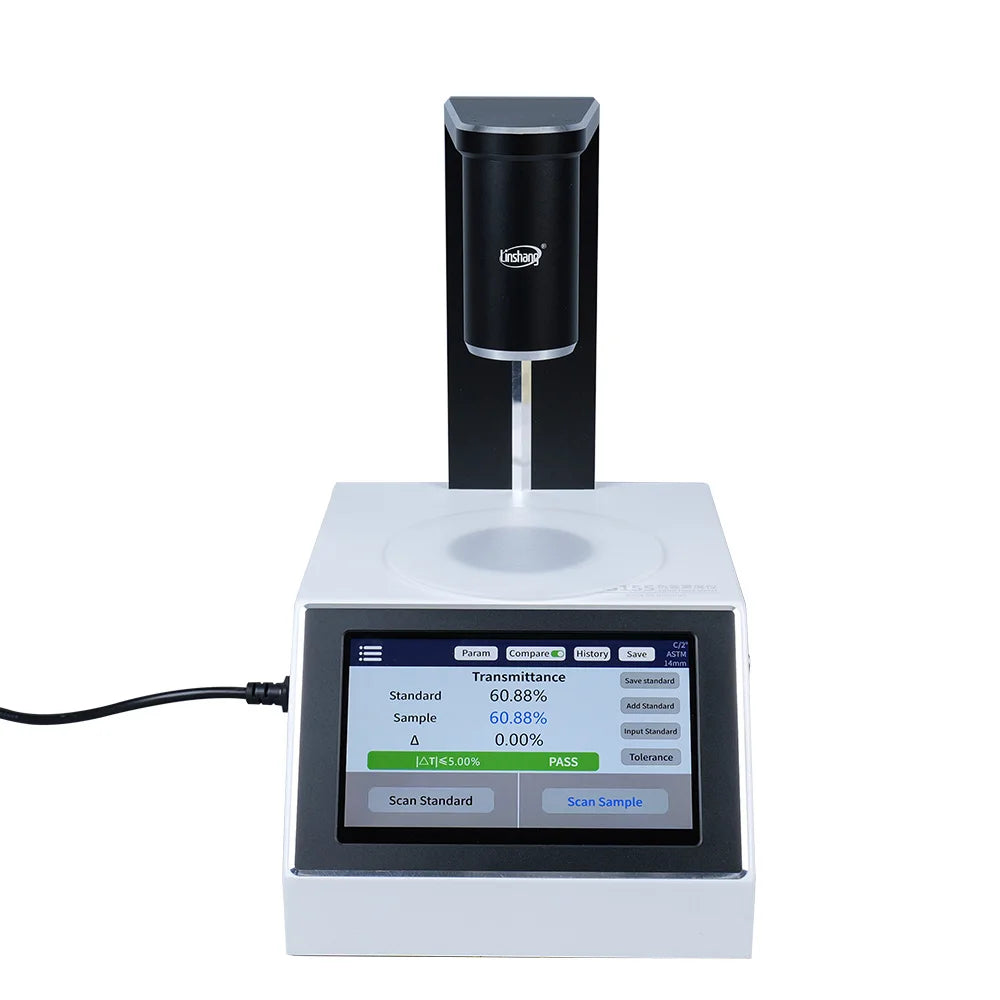

Digital Clarity Haze Meter for Transparent & Translucent Materials – Glass, Plastic, Film, Liquid

This digital haze meter is a versatile and advanced instrument designed for the accurate measurement of haze, transmittance, and color in transparent and semi-transparent materials. It utilizes a full-spectrum LED light source and a precision spectral sensor, making it ideal for testing materials such as frosted glass, matte surfaces, milky films, and clear plastics. The integrated 7-inch capacitive touchscreen ensures intuitive operation and a superior user experience.

Key Features:

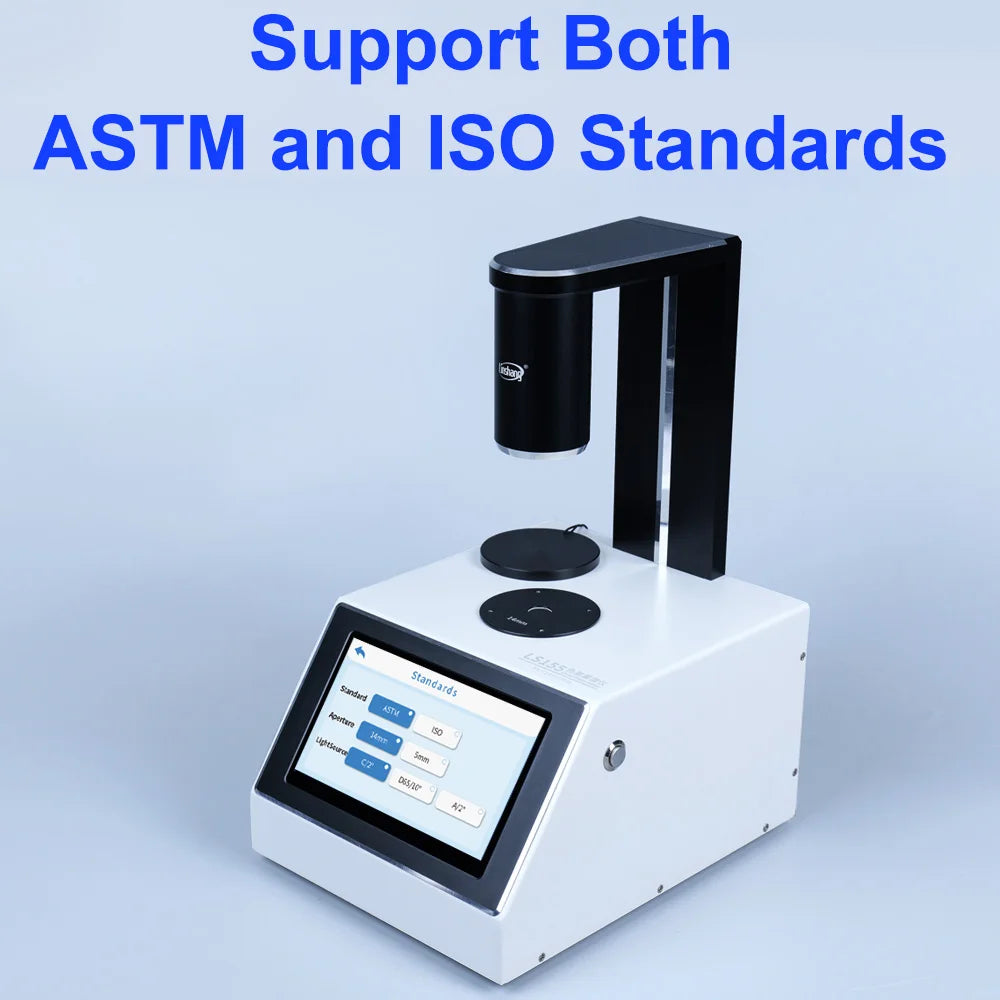

  1. Standards Compliant – Fully complies with ASTM and ISO standards to meet various testing requirements.

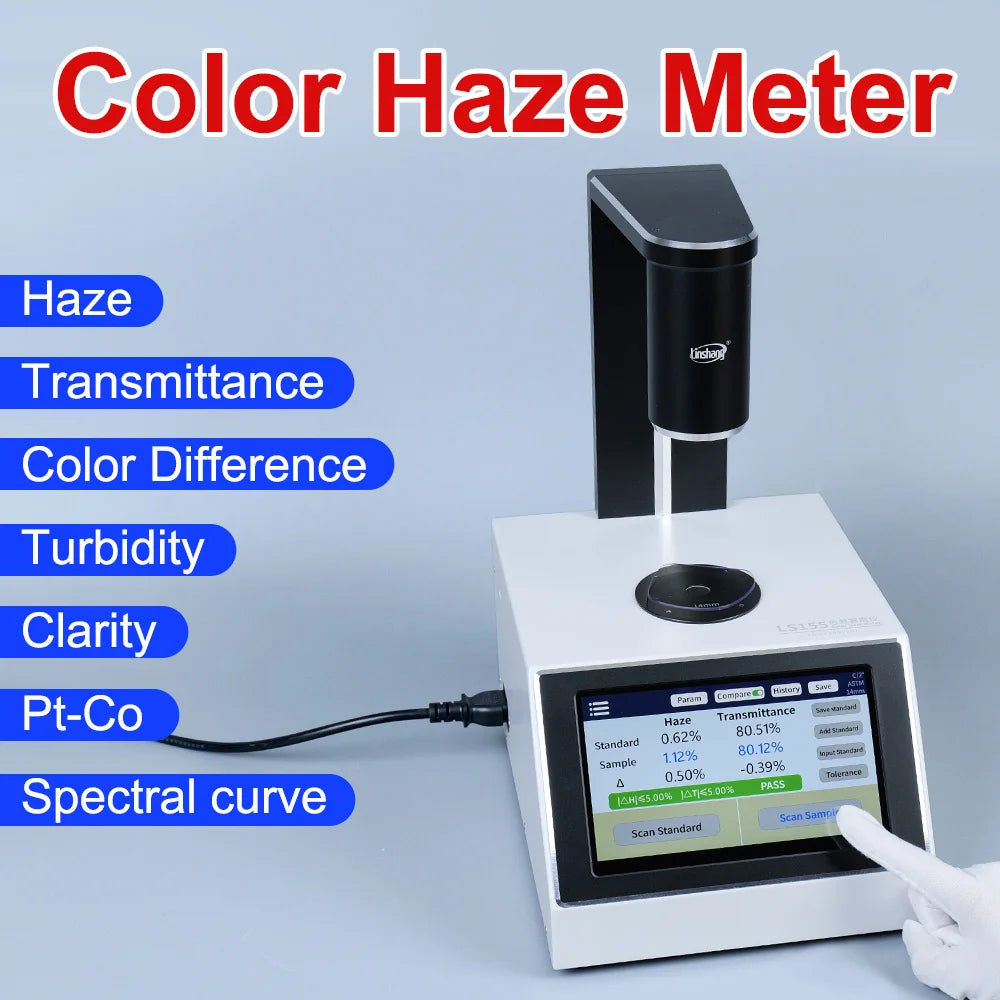

  2. Multi-Function Testing – Measures haze, total transmittance, and color values, while displaying the spectral transmittance curve.

  3. User-Friendly Modes – Simple and comparative modes make switching between quick checks and detailed analysis effortless.

  4. Touchscreen Operation – 7-inch IPS touchscreen provides fast, interactive control and data viewing.

  5. High Repeatability – Outstanding stability with haze and color difference repeatability of ≤0.03; transmittance repeatability ≤0.05.

  6. Superior Accuracy – Engineered for precise measurements with guaranteed performance at certified metrology labs.

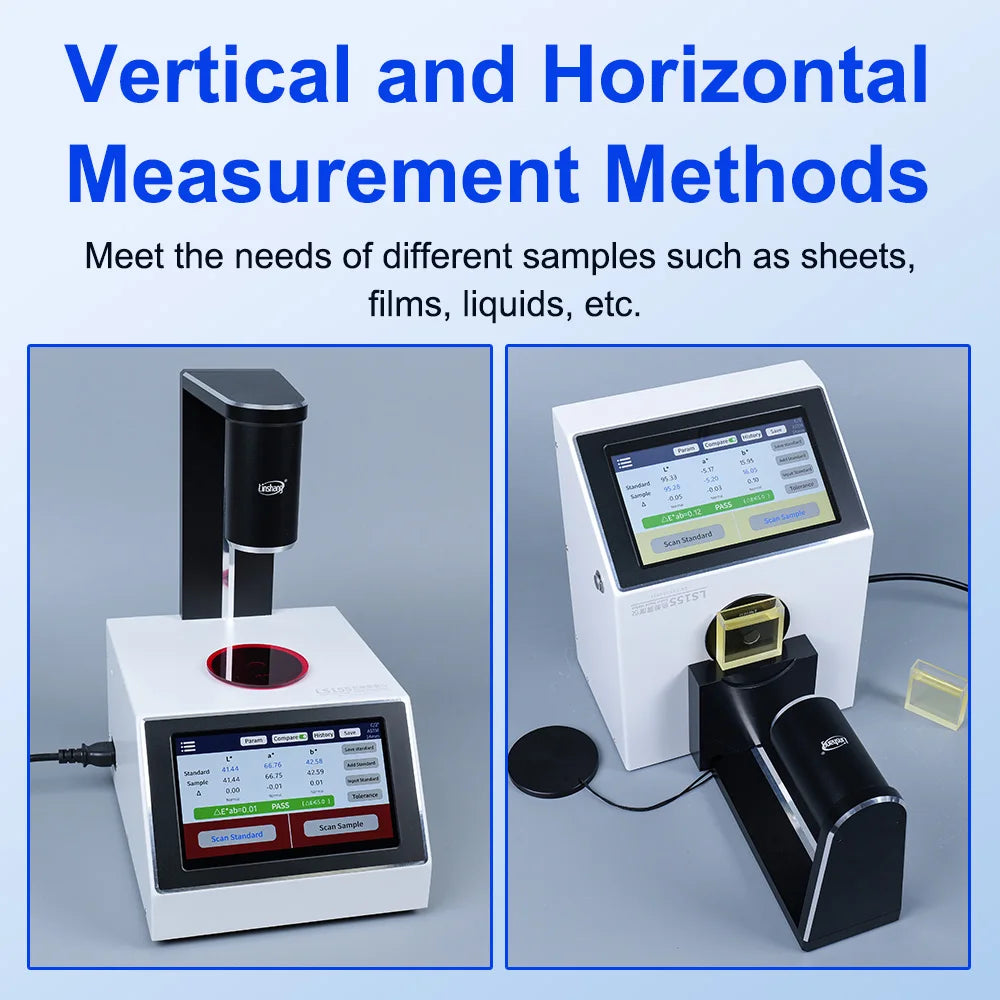

  7. Flexible Orientation – Offers vertical and horizontal testing, with the capability to test liquids and solids.

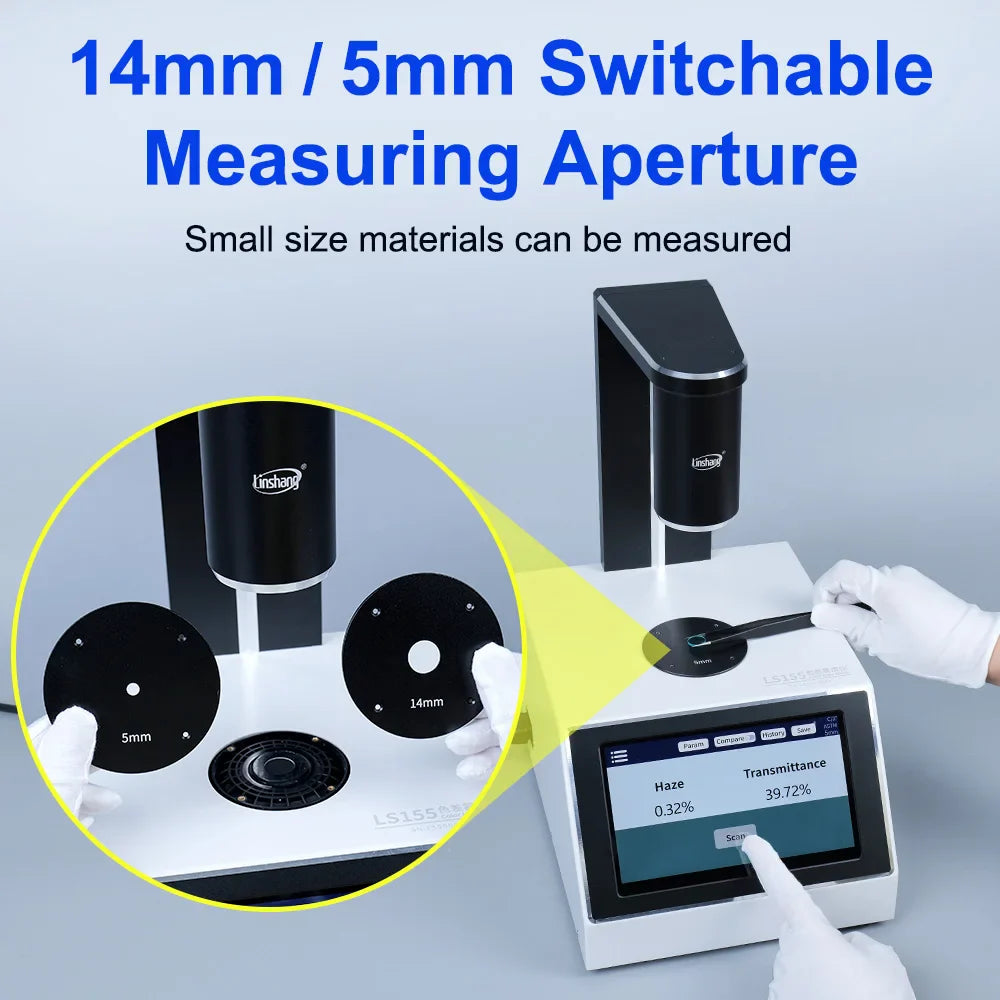

  8. Dual Aperture System – Includes 14mm and 5mm apertures to accommodate different sample sizes and types.

  9. Multiple Standard Illuminants – Supports A, C, and D65 illuminants with customizable viewing angles.

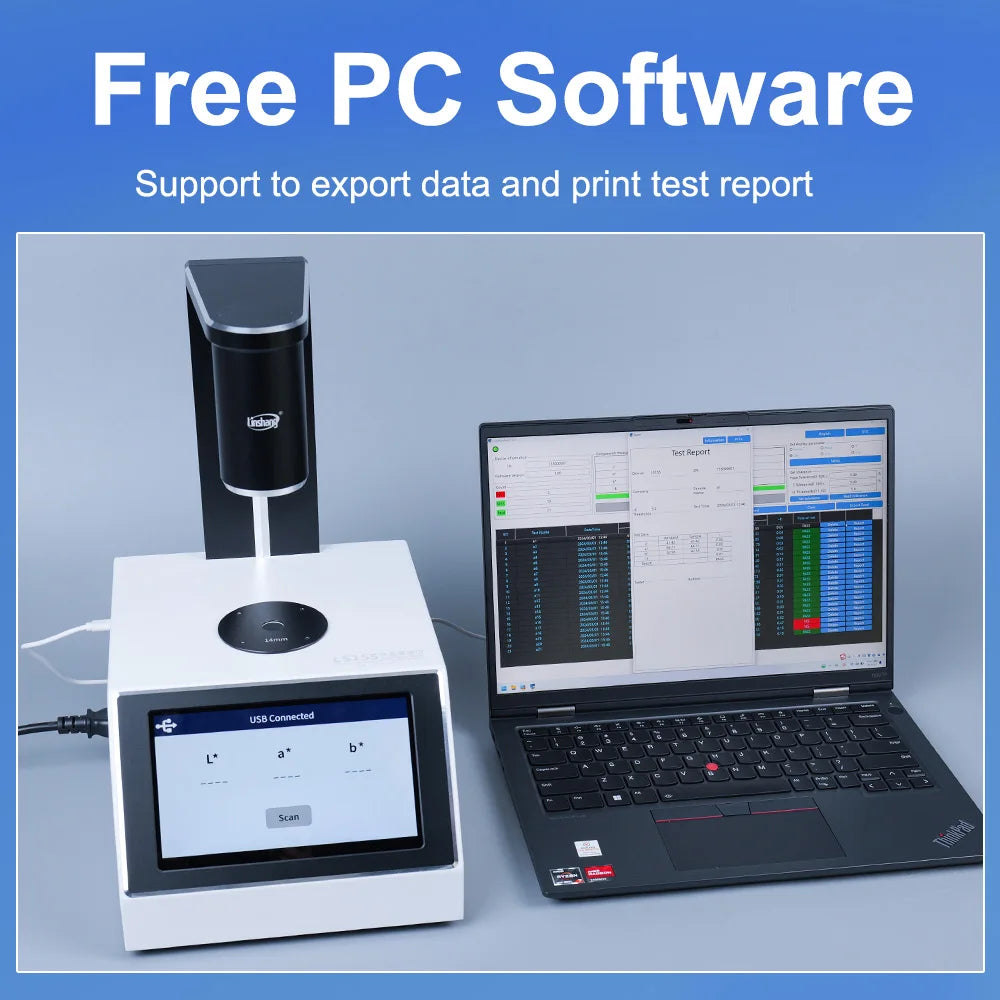

  10. PC Connectivity – Includes dedicated PC software for real-time measurement, data export, and report generation.

Technical Specifications:

Parameter Value
Illumination Geometry D/0°
Light Source Full-spectrum LED
Spectral Range 400–700 nm
Spectral Interval 10 nm
Measuring Aperture 5 mm / 14 mm
Measurement Conditions D65 (10°), A (2°), C (2°)
Measurement Time Approx. 3 seconds
Parameters Measured Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral
Transmittance Resolution 0.01%
Transmittance Accuracy ±1%
Haze Accuracy ±2%
Color Repeatability ΔE*ab ≤ 0.03
Power Supply 100–277V, 50/60Hz
Display 7" IPS color screen, 1024x600 resolution
Languages English, Simplified Chinese
Data Interface USB (Type-C)
Operating Temp 0–45℃, 0–85% RH (non-condensing)
Storage Temp -25–55℃, 0–85% RH (non-condensing)
Dimensions 211 × 264 × 360 mm
Weight 5.3 kg

Ideal for industries such as glass manufacturing, plastic production, film processing, and coating inspection, this haze meter offers precise analysis for quality control and research applications.

  • warranty : 1 Year
  • model number : LSHM150
  • Model : LS155 Color Haze Meter
  • Illumination geometry : D/0°
  • Spectral Range : 400-700nm
  • Spectral Interval : 10nm
  • Measuring aperture : 5mm/14mm
  • Measuring parameter : Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral transmittance
  • Transmittance resolution : 0.01%
  • Transmittance accuracy : Better than ±1%
  • Transmittance repeatability : ≤0.03
  • Haze resolution : 0.01%
  • power : Electronic
