Digital Barcol Hardness Tester | Portable Indentation Durometer for Aluminum Alloy & Copper

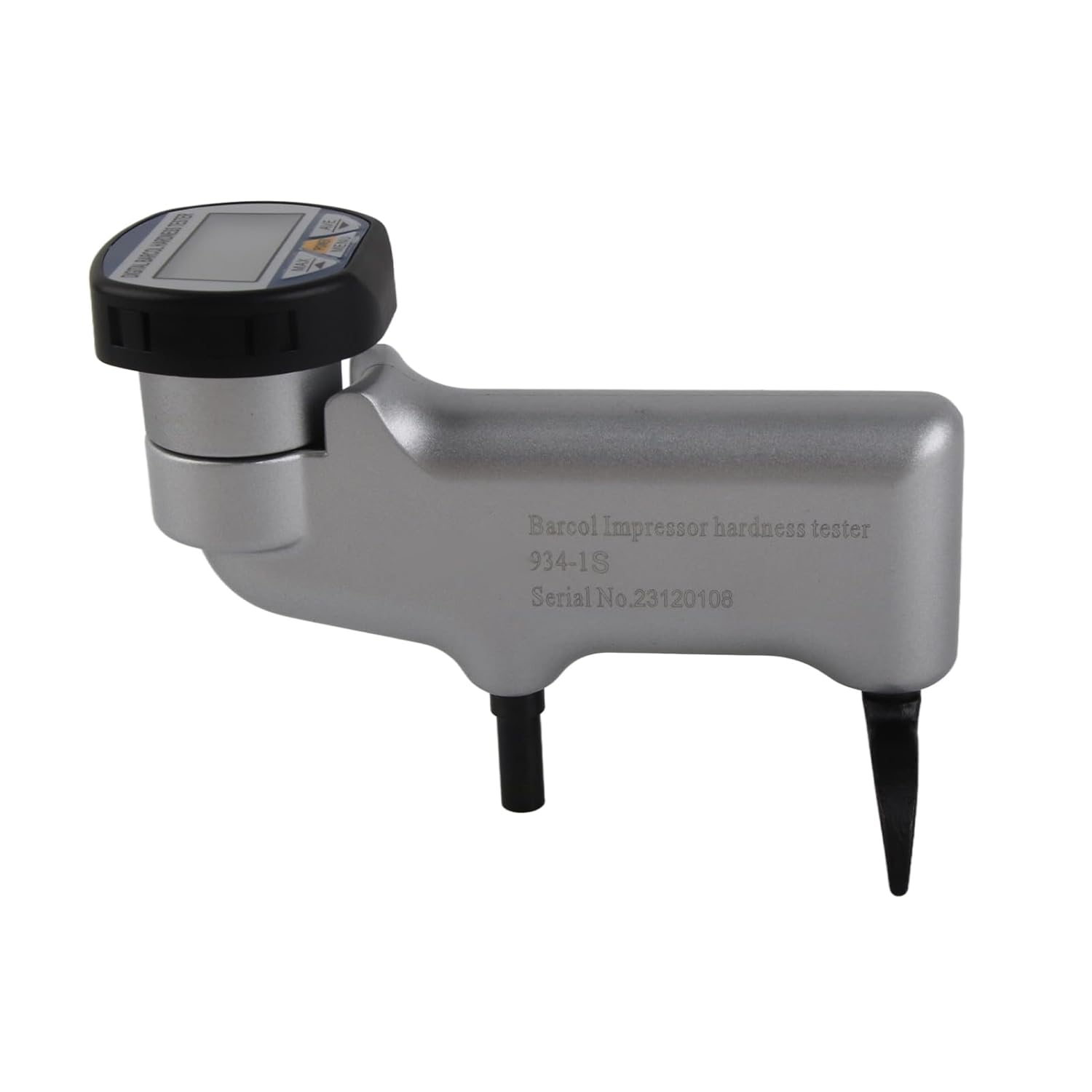

This Digital Barcol Hardness Tester is a portable, high-precision indentation durometer designed for quick and accurate testing of the hardness of aluminum alloys, copper, and other soft metals. With a user-friendly interface and multiple hardness scale conversions, it is ideal for both field and laboratory applications.

Key Features:

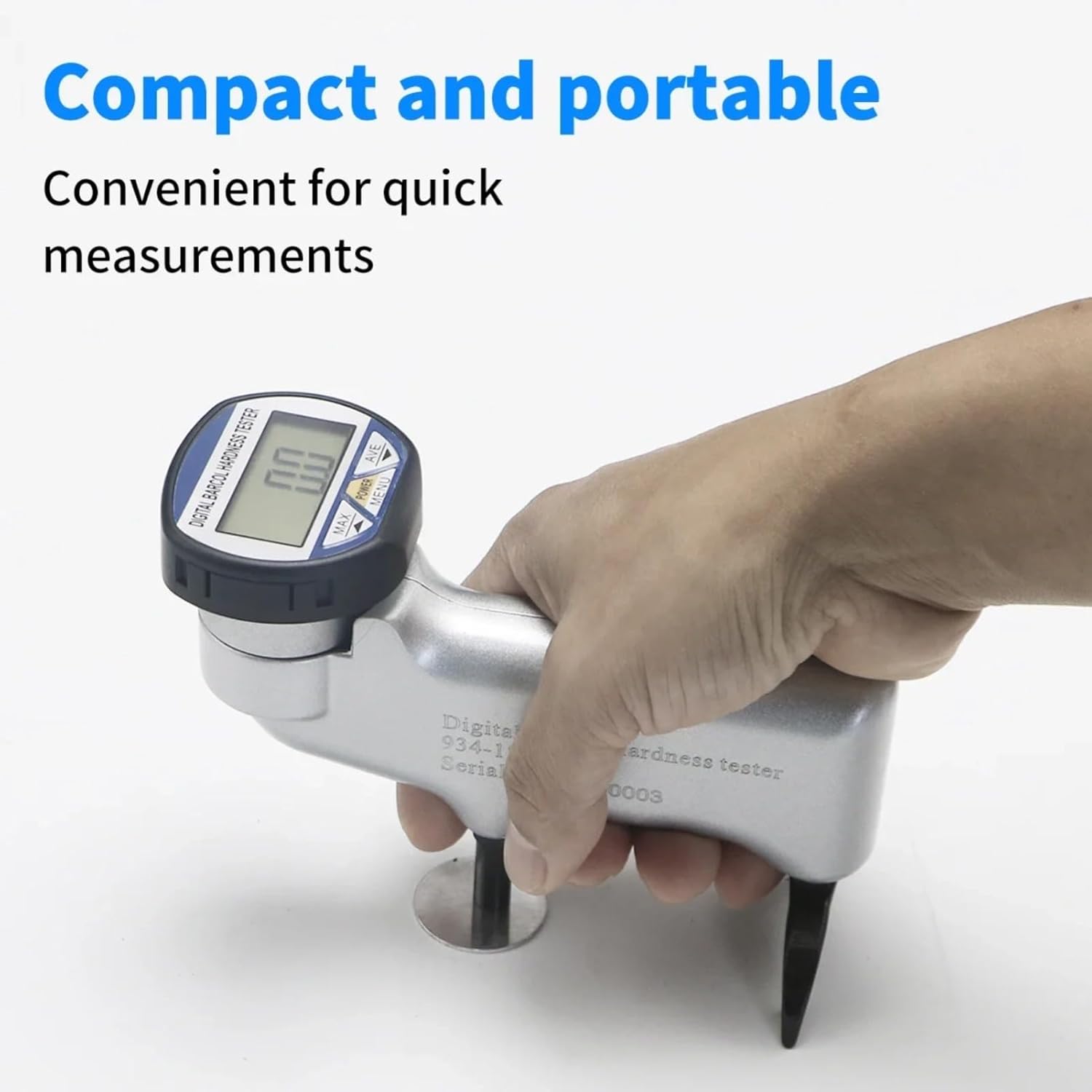

🔧 Easy One-Hand Operation
Lightweight and ergonomically designed for single-hand use, allowing for fast, comfortable, and reliable measurements on-site or in the lab.

📟 Clear Digital Display
The digital screen provides clear readings and supports multiple hardness units, including:

• Barcol (HBa)

• Brinell (HB)

• Vickers (HV)

• Webster (HW)

• Rockwell (HRB, HRE, HRF, HRH)

🎯 High Accuracy & Repeatability
Detachable pressure needle ensures precise and repeatable results.

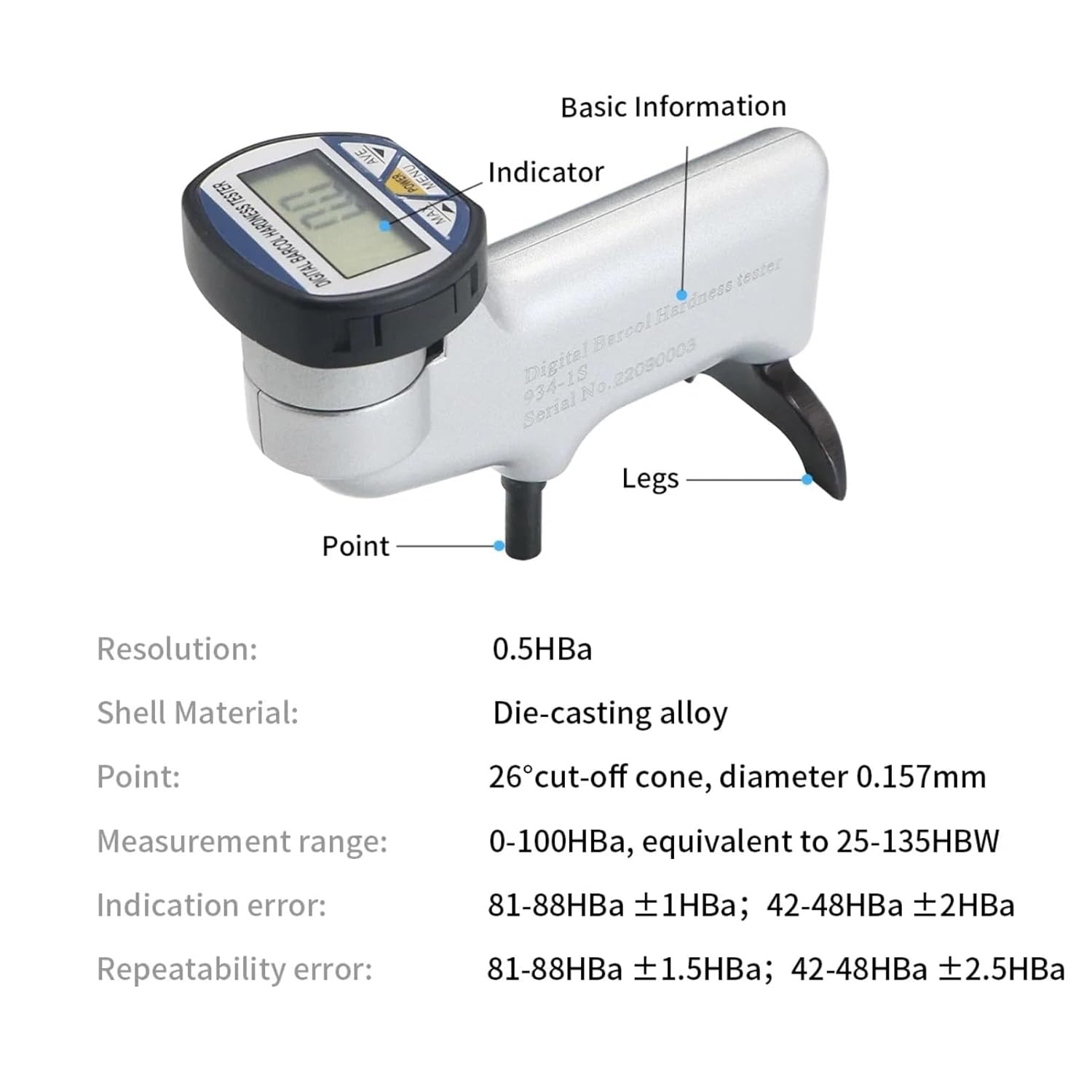

• Measuring Range: 0–100 HBa (equivalent to 25–135 HBW)

• Resolution: 0.5 HBa

• Indication Error:

  • 81–88 HBa: ±1 HBa

  • 42–48 HBa: ±2 HBa

• Repeatability Error:

  • 81–88 HBa: ±1.5 HBa

  • 42–48 HBa: ±2.5 HBa

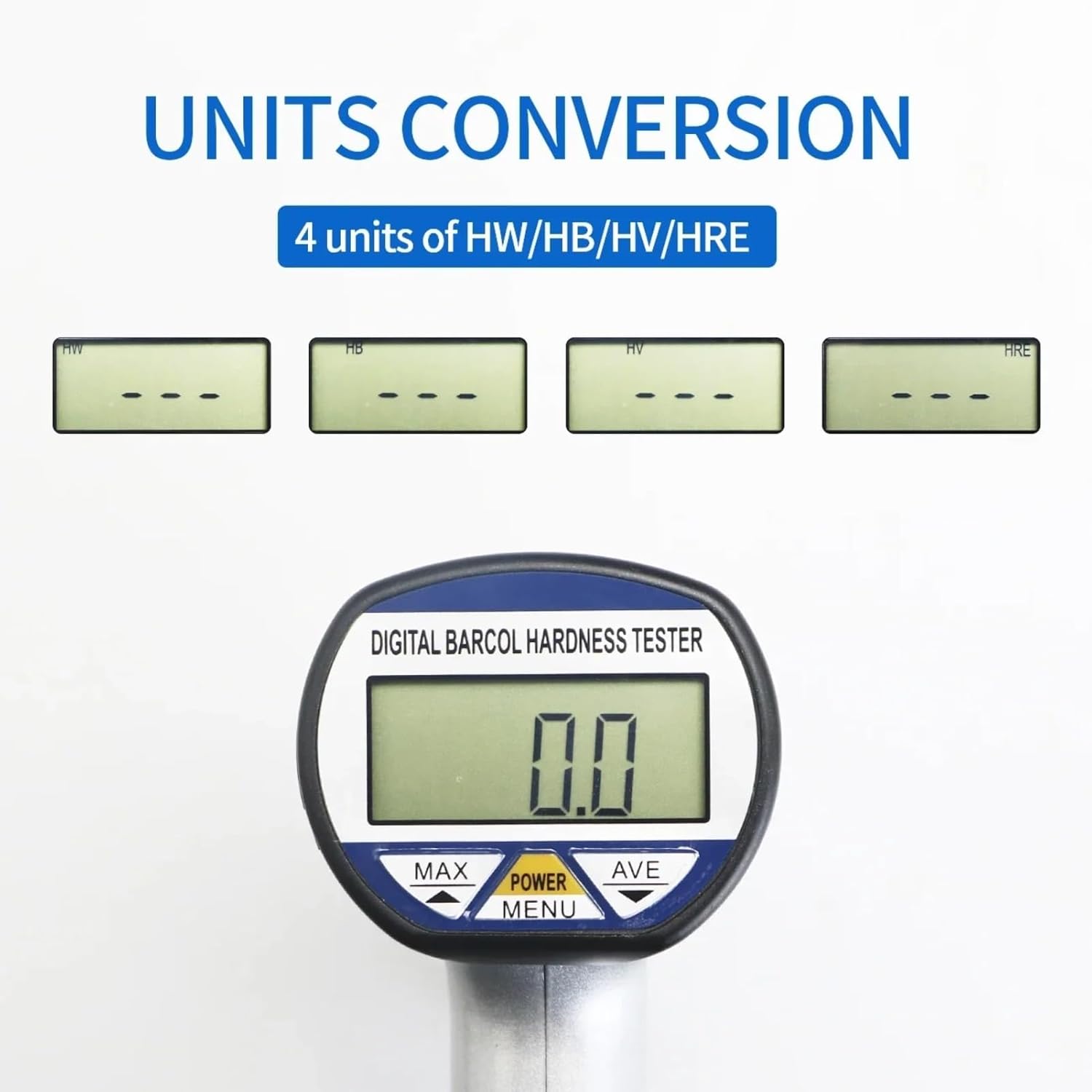

🔁 Unit Conversion Function
Quickly switch between hardness scales by pressing the power/function key before measurement. The display automatically shows results in the selected unit.

🛠 Durable Construction
Made of high-quality iron, the tester is built to withstand regular use without compromising performance.

🌡 Working Environment:

• Temperature: 0–40°C

• Humidity: <80% RH

How to Use:

1. Hold the tester and place it firmly on the metal surface.

2. Apply consistent pressure quickly and steadily.

3. Read the displayed value—this is your Barcol hardness reading.

4. For different hardness units, press the function key before measurement to select the desired scale.

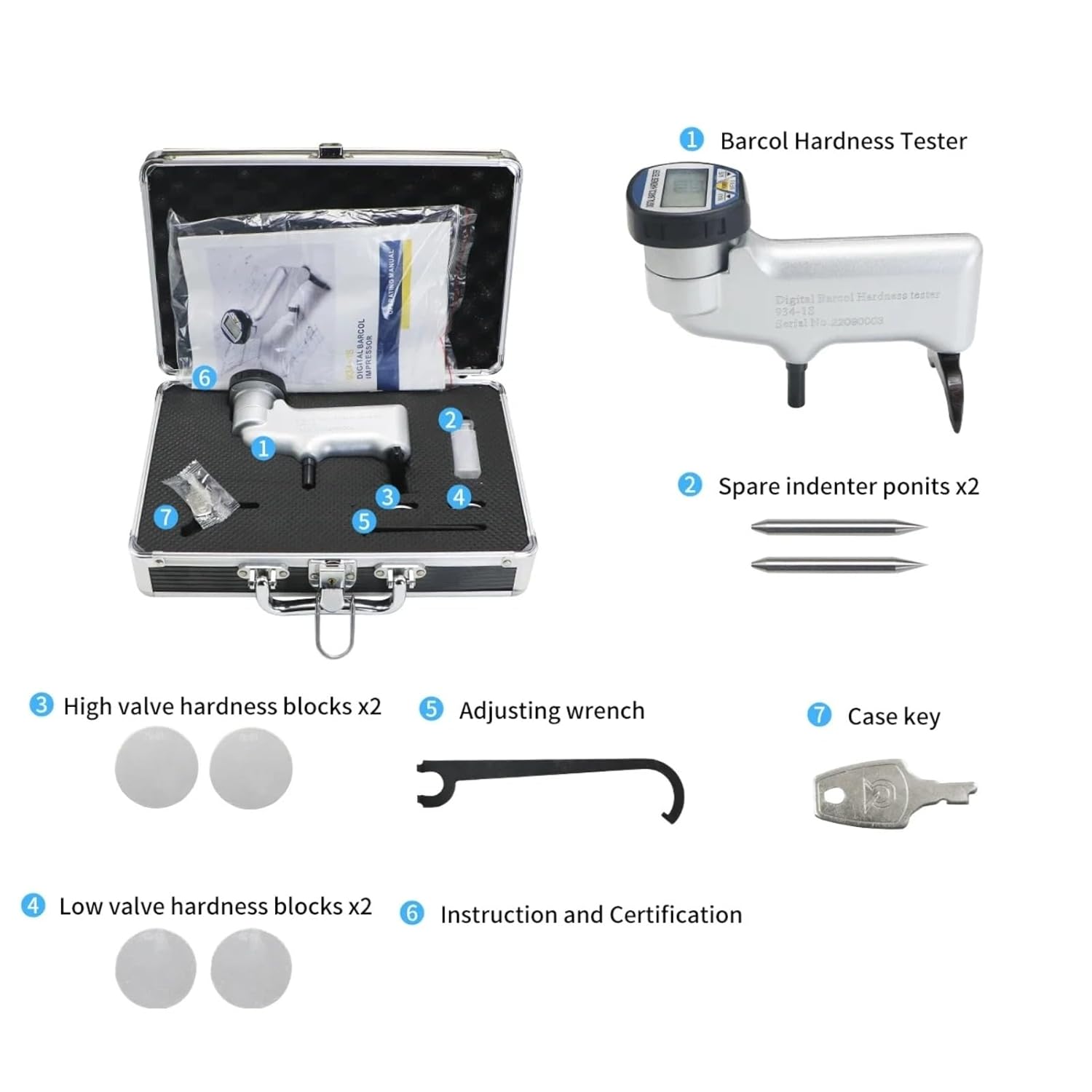

Package Includes:

• 1 × Digital Hardness Tester (Battery not included)

• 4 × Calibration Hardness Blocks

• 1 × Supporting Foot

• 2 × Spare Indenters

• 1 × Correction Wrench

• 1 × Instrument Box

• 2 × Keys

• 1 × User Manual

This versatile and reliable Barcol hardness tester is perfect for quality control, production, research, and field inspections involving aluminum alloys, copper, and similar materials.
