Benchtop Spectrophotometer MYSH6010 | WI, YI, Opacity Testing Yarn Colorimeter

Benchtop Spectrophotometer MYSH6010 | WI YI Opacity Testing Yarn Colorimeter

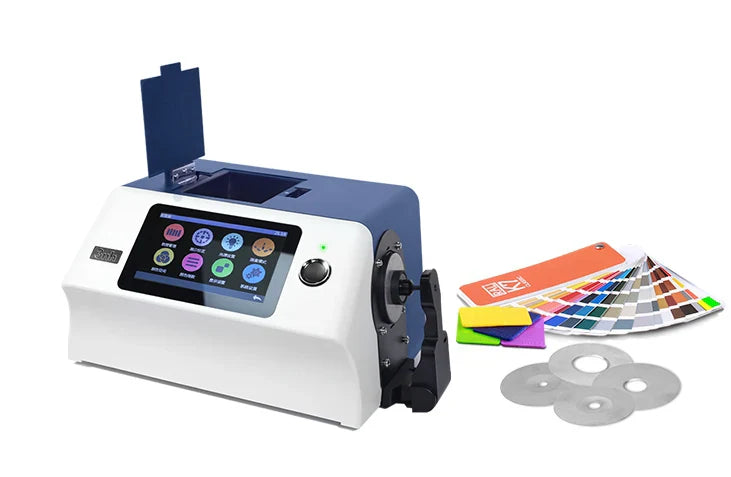

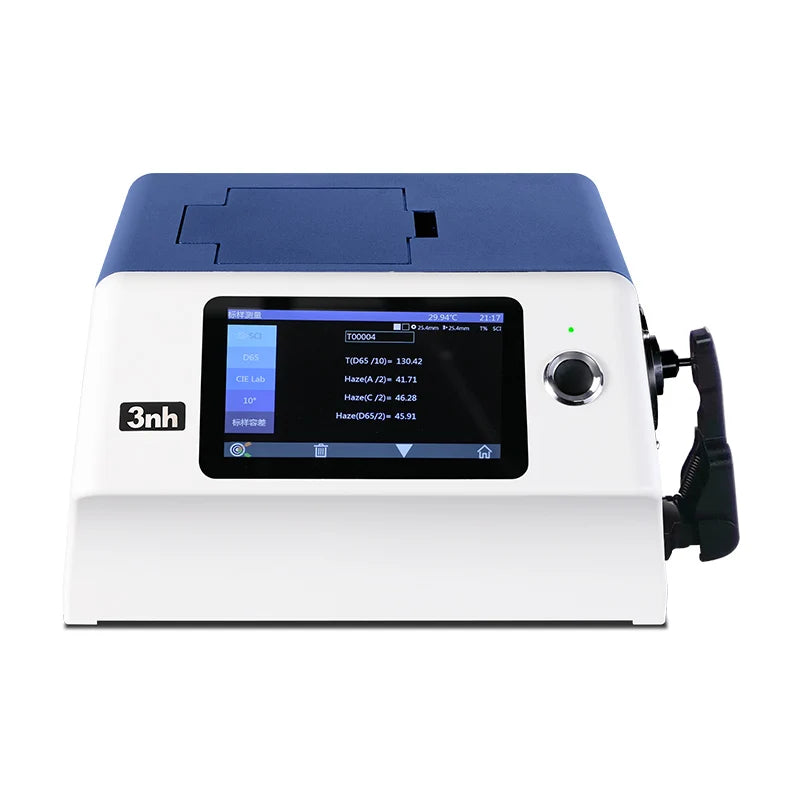

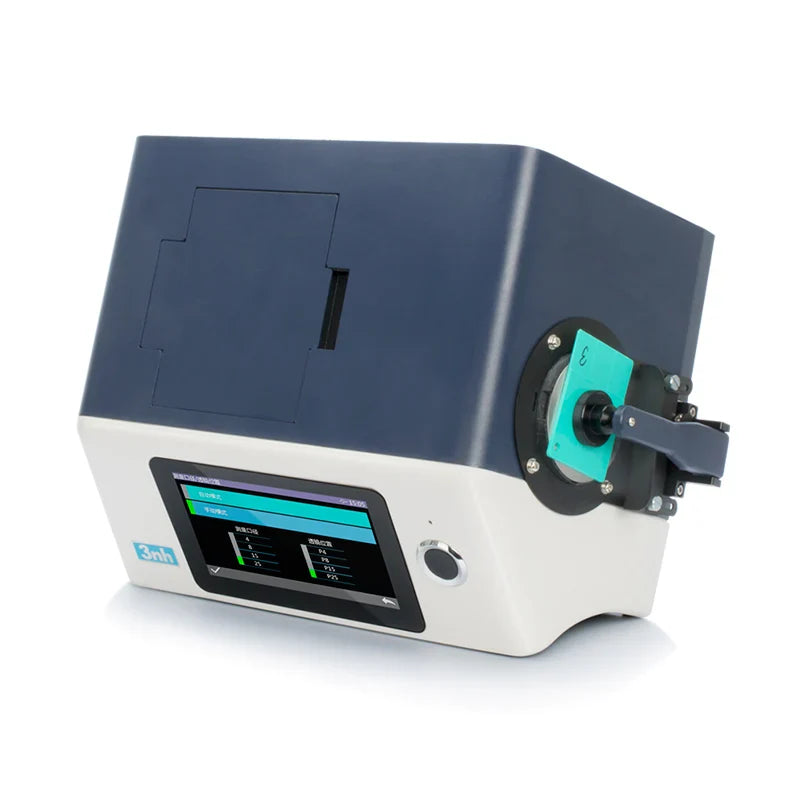

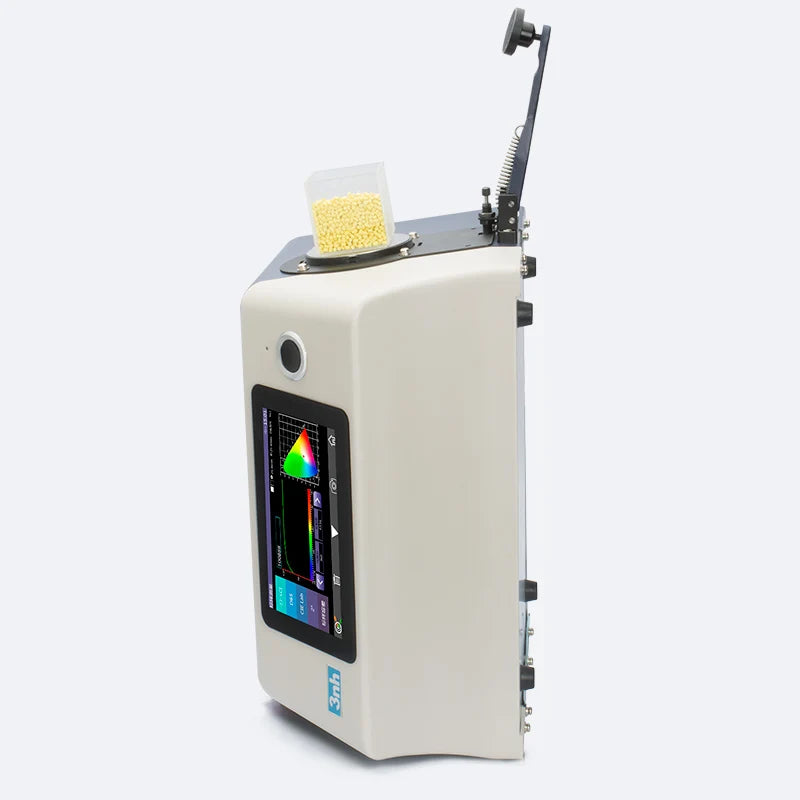

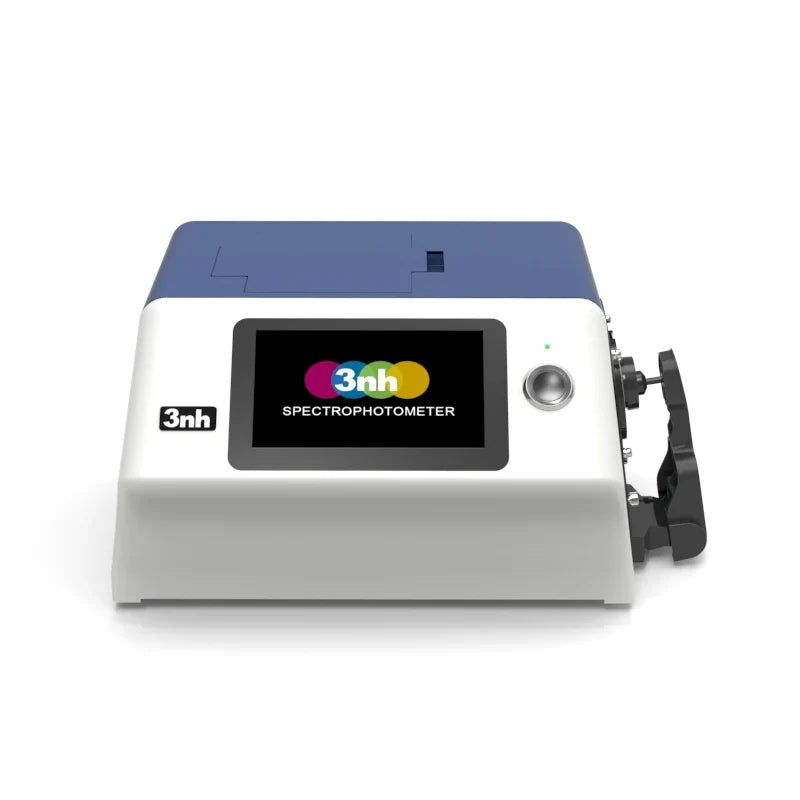

The MYSH6010 Benchtop Spectrophotometer is a high-performance laboratory-grade colorimeter engineered for precise WI (Whiteness Index), YI (Yellowness Index), Opacity, and color difference testing. Independently developed with full intellectual property rights, this ASTM E1164-compliant instrument offers unmatched accuracy for color analysis, transmission, and quality control across a range of materials including yarn, textiles, plastics, paint, and more.

This advanced benchtop grating spectrophotometer features a 7-inch capacitive touch screen, dual light geometry (reflective d/8 and transmissive d/0), and a full-spectrum LED + UV light source for complete UV-visible spectrum coverage (360–780nm). It's the ideal solution for R&D labs, quality control, and color formulation tasks.

Key Features:

• ✅ Professional Color Measurement
  Reflective d/8° & Transmissive d/0° geometry (SCI & SCE), with or without UV, ideal for both opaque and transparent materials.

• ✅ High-End Display & Control
  Large 7" TFT capacitive touchscreen with intuitive interface and built-in temperature compensation for precise measurement under varying conditions.

• ✅ Wide Spectral Range
  Covers 360–780nm with a 10nm interval and 10nm bandwidth, ideal for accurate UV and visible spectrum analysis.

• ✅ Flexible Apertures
  Automatic detection and switchable measuring apertures (Φ25.4mm, 15mm, 8mm, 4mm) to suit various sample sizes and textures.

• ✅ Dual CMOS Sensor System
  Features a 256-element double array CMOS sensor for reliable and stable signal detection across all lighting conditions.

• ✅ Data & Connectivity

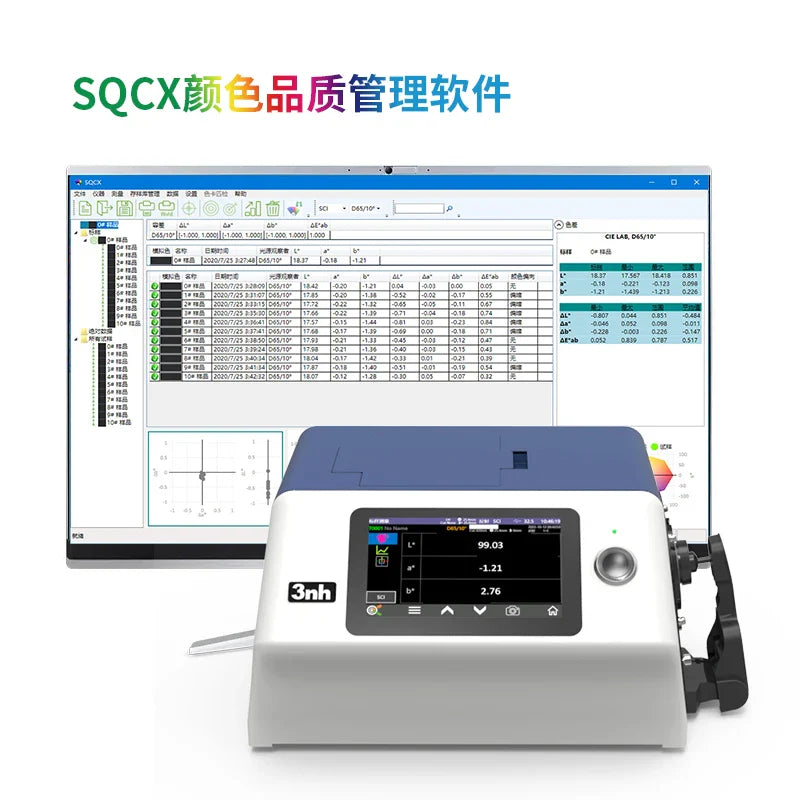

  Stores up to 20,000 test results; USB and print ports for easy data export and integration with powerful PC software.

• ✅ Powerful Metrics
  Measures WI, YI, MI, haze (ASTM D1003), gloss, color strength, fastness, and ΔE in multiple color spaces and formulas (ΔEab, ΔE00, CMC, Hunter, etc.).

• ✅ Built-in Camera Positioning
  Ensures accurate sample targeting for consistent and repeatable color measurements.

Applications:

The MYSH6010 is widely used in:

• Textiles & Yarn (precise shade matching and color consistency)

• Plastic & Rubber (color control in manufacturing)

• Paint, Ink & Coating (formula matching and opacity testing)

• Printing & Packaging

• Cosmetics, Food & Pharmaceuticals

• Scientific Research & Laboratories

Technical Specifications:

• Optical Geometry: d/8° (reflective), d/0° (transmissive), with/without UV

• Sensor: 256 Image Element Double Array CMOS

• Light Source: LED + UV LED, 400nm cutoff filter

• Wavelength Range: 360–780nm

• Display: 7" TFT Color Capacitive Touchscreen

• Apertures: φ30mm, φ25.4mm, φ10mm, φ8mm, φ6mm, φ4mm

• Measurement Time: Approx. 2.4s (SCI & SCE ≈ 5s)

• Data Storage: 20,000 samples

• Connectivity: USB, Print port

• Weight: Approx. 25LBS

• Power Supply: AC 24V, 3A

• Languages: English

Included Accessories:

• Power Adapter, Calibration Boards (White/Black), USB Cable, Sample Holders, Multiple Apertures (4mm, 8mm, 25.4mm), User Manual, and PC Software CD.

Optional: Micro-printer, transmissive test components, culture dish fixture, and inversion components for specialized tests.

This wireless-ready benchtop spectrophotometer is your complete solution for high-accuracy color measurement and compliance with ASTM E1164 and global colorimetric standards.
