MEUBON
Automatic Strain Unconfined Compression Tester: Precise Testing for Structural Stability MV553322
Regular price
$4,200.00 USD
Sale price
$4,200.00 USD
Unit price
per
In stock

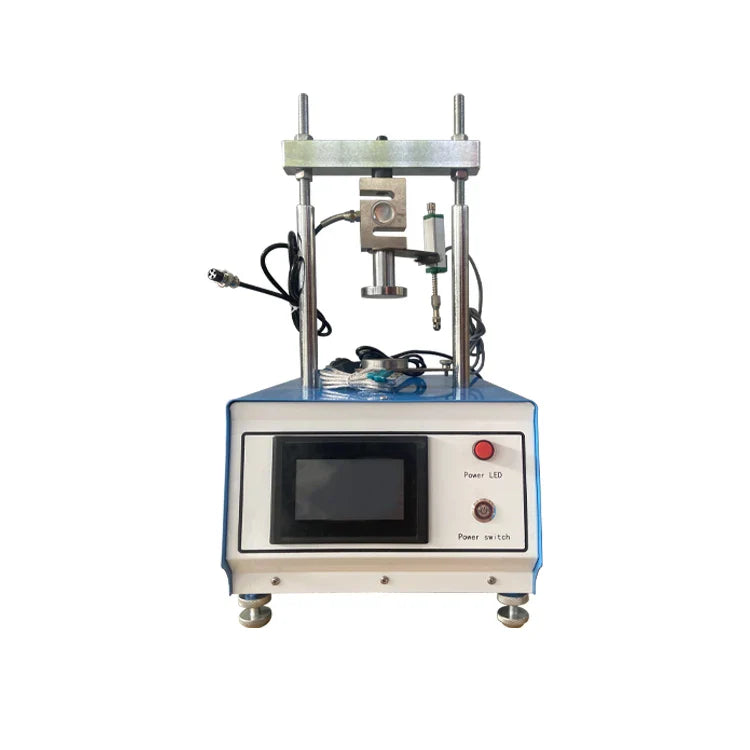

Electric Unconfined Compression Tester
Our Electric Unconfined Compression Tester offers precision in measuring the unconfined compressive strength of lime-soil mixtures, particularly suitable for soft clay with high saturation levels. This strain-type unconfined pressure gauge accurately assesses the force at failure, providing crucial data for soil stability analysis. Additionally, it determines soil sensitivity, a vital parameter indicating the soil's response to stress.
Parameters:
- Maximum Load: 10KN
- Test Speed: 1mm-5mm/min
- Electric Rising Speed: 2.4mm/min
- Diameter of Screw Disc: Ф52mm
- Lead Screw Moving Distance: 50mm
- Specimen Size: Φ50X50, Φ50X100, φ40100, φ39.180
This Electric Unconfined Compression Tester ensures accurate and reliable results for soil characterization, contributing to informed decision-making in various engineering and construction projects.
- Warranty : 1 Year
- Power : Electronic, Electrical
- Product name : Electric Unconfined Compression Tester
- Max.load : 10KN
- Electric rising speed : 2.4-15mm/min
- Lead screw moving distance : 50mm
- Function : determine the sensitivity of the soil
- Manual ascending speed : 10 laps/1mm
- Diameter of screw disc : Dia. 52mm
- Specimen size : Dia. 50X50/ Dia.50X100
