MEUBON

Automated and Programmable Salt Spray Test Chamber I Advanced Equipment for Environmental Testing

$65,000.00 USD
$70,000.00 USD $65,000.00 USD
SAVE 7% SOLD OUT

In stock

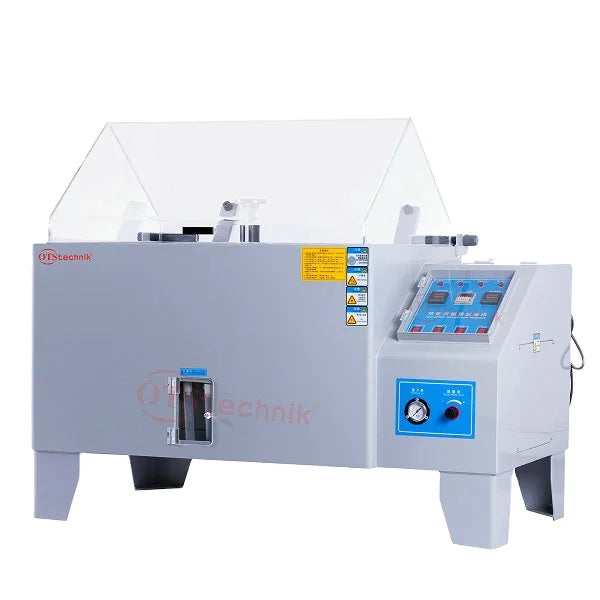

Experience Superior Corrosion Testing with Our Salt Spray Test Chamber

Our salt spray test chamber serves as a vital climate simulation device, meticulously assessing the corrosion resistance of electronic equipment, metallic materials, and various surface treatments including coatings, galvanizing, organic/inorganic coatings, anodizing treatments, rust-proof oil coatings, and more.

Performance indicators of our chamber align with the rigorous standards outlined in GB / T5170.8 for Electrical and Electronic Products, Environmental Testing Equipment, ensuring adherence to the Basic Parameters of the Test Method. Additionally, our salt spray corrosion test chamber complies with GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures, offering versatility for both neutral salt spray tests and acetic acid salt tests.

Specifications:

Model:

  • XB-OTS-60
  • XB-OTS-90
  • XB-OTS-120
  • XB-OTS-160
  • XB-OTS-200

Inner Size (cm):

  • 60x45x40
  • 90x60x50
  • 120x100x50
  • 160x100x50
  • 200x100x50

External Size (cm):

  • 107x60x118
  • 141x88x128
  • 190x110x140
  • 230x130x140
  • 270x150x150

Inside Temperature:

  • Brine test method (NSS ACSS): 35°C±1°C
  • Corrosion resistance test method (CASS): 50°C±1°C

Brine Temperature:

  • NSS ACSS: 35°C±1°C
  • CASS: 50°C±1°C

Test Chamber Volume:

  • 108L
  • 270L
  • 600L
  • 800L
  • 1000L

Brine Chamber Volume:

  • 15L
  • 25L
  • 40L
  • 40L
  • 40L

Compressed Air Pressure:

  • 1.00±0.01kgf/cm2

Spray Volume:

  • 1.0~2.0ml/80cm2/h (Collected at least 16 hours, on average)

Test Room Relative Humidity:

  • 85%RH or more

pH:

  • 6.5~7.2
  • 3.0~3.2

Spray Method:

  • Programmable spray (including continuous spray and interrupted spray)

Power:

  • AC220V1Φ10A
  • AC220V1Φ15A
  • AC220V1Φ20A
  • AC220V1Φ20A
  • AC220V1Φ30A

  • Warranty : 14 months
  • Air pressure : 86~ 106Kpa
  • Spray volume : 1.0~2.0ml/80cm2/h
  • Laboratory temperature : NSS.ACSS 35°C ±1°C/ CASS
  • PH : 6.5~7.2 3.0~3.2
  • Temp. air : NSS.ACSS 47°C±1°C/CASS 63℃±1℃
  • Standards : ASTM B117, GB/T2423.17
  • Uses : Composite Salt spray test chamber
  • Spraying mode : Continuous spraying
