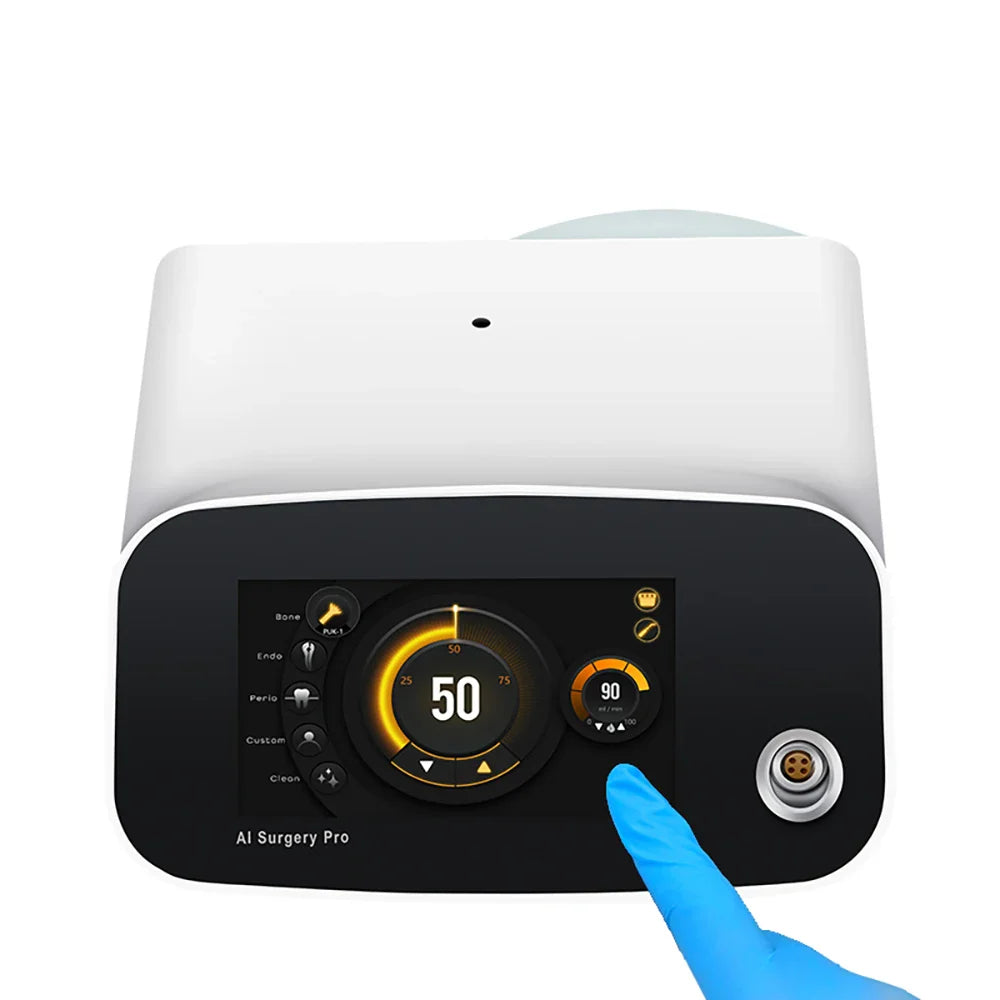

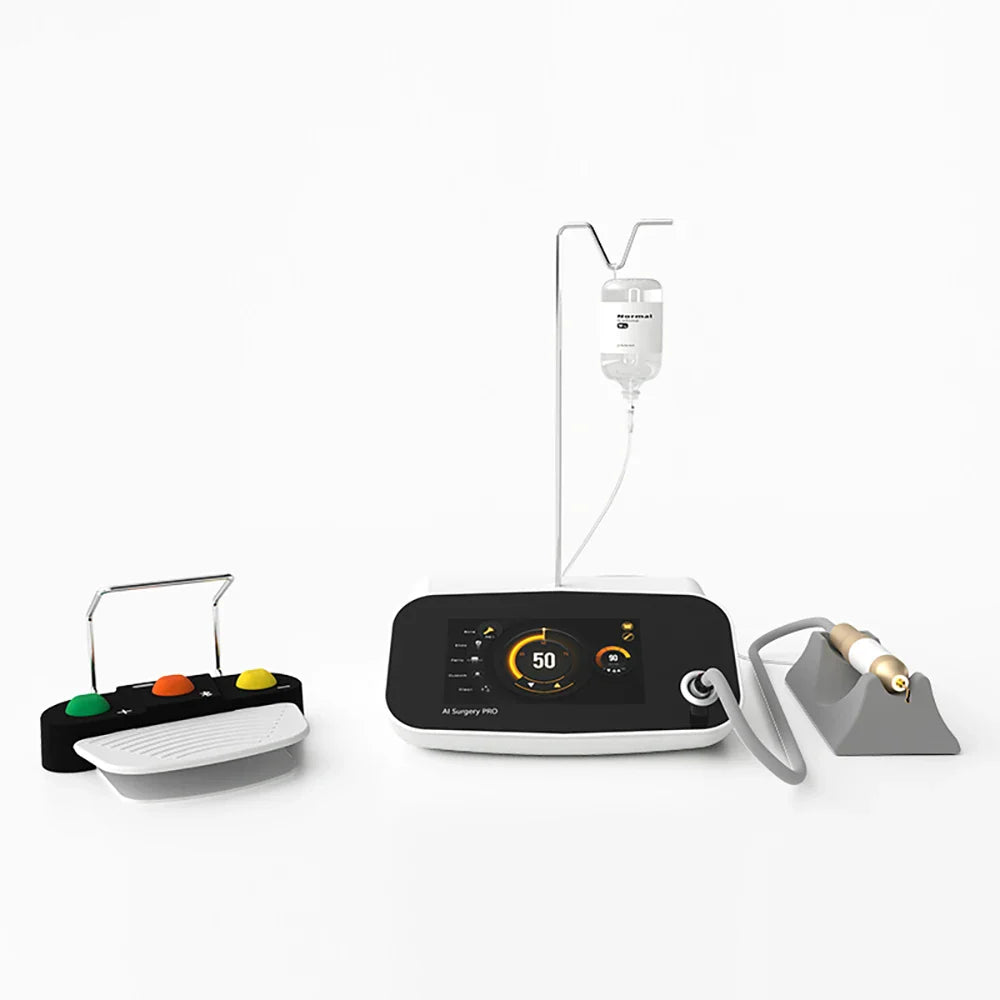

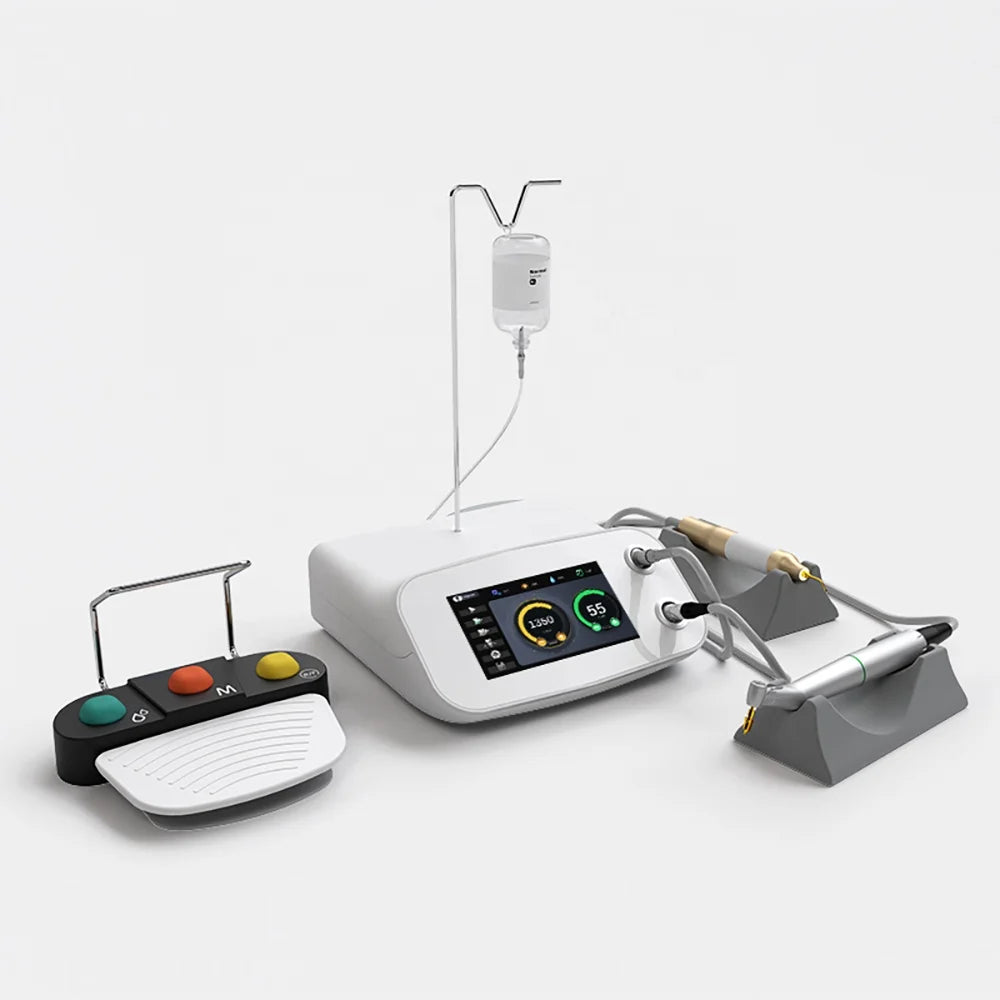

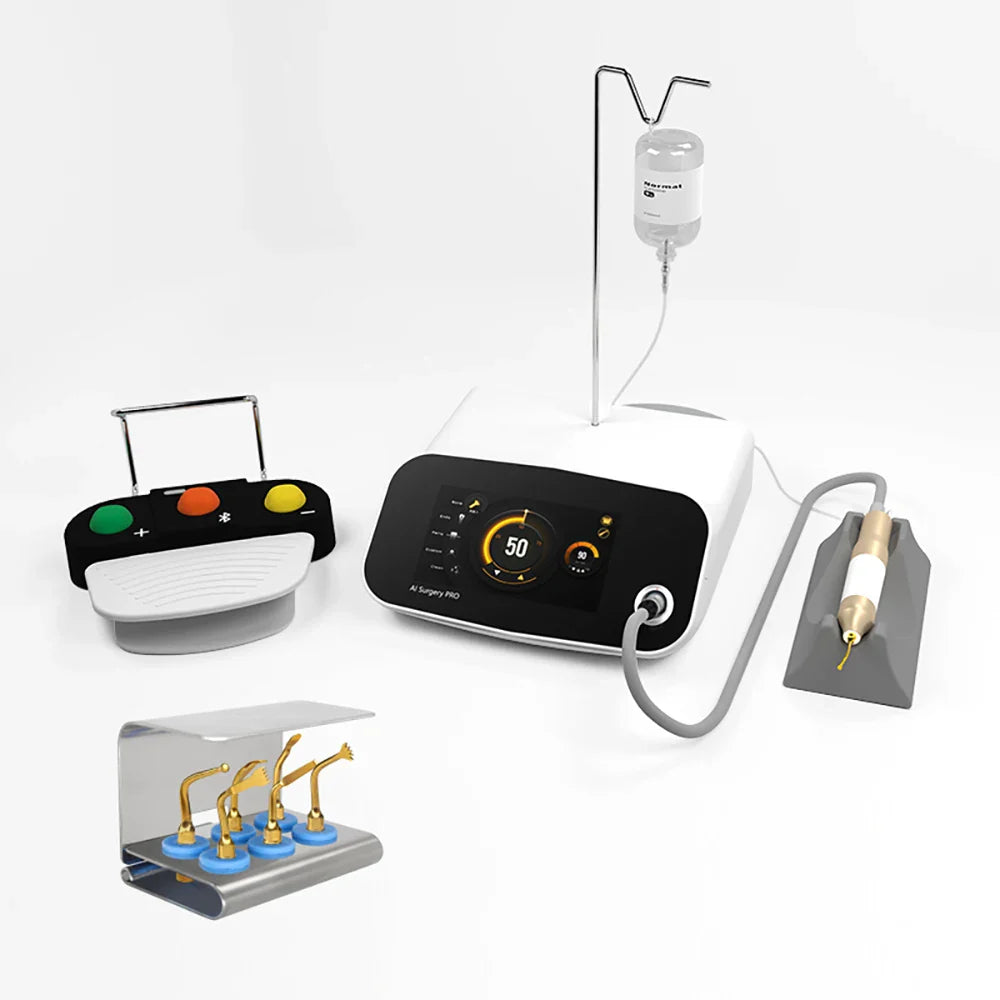

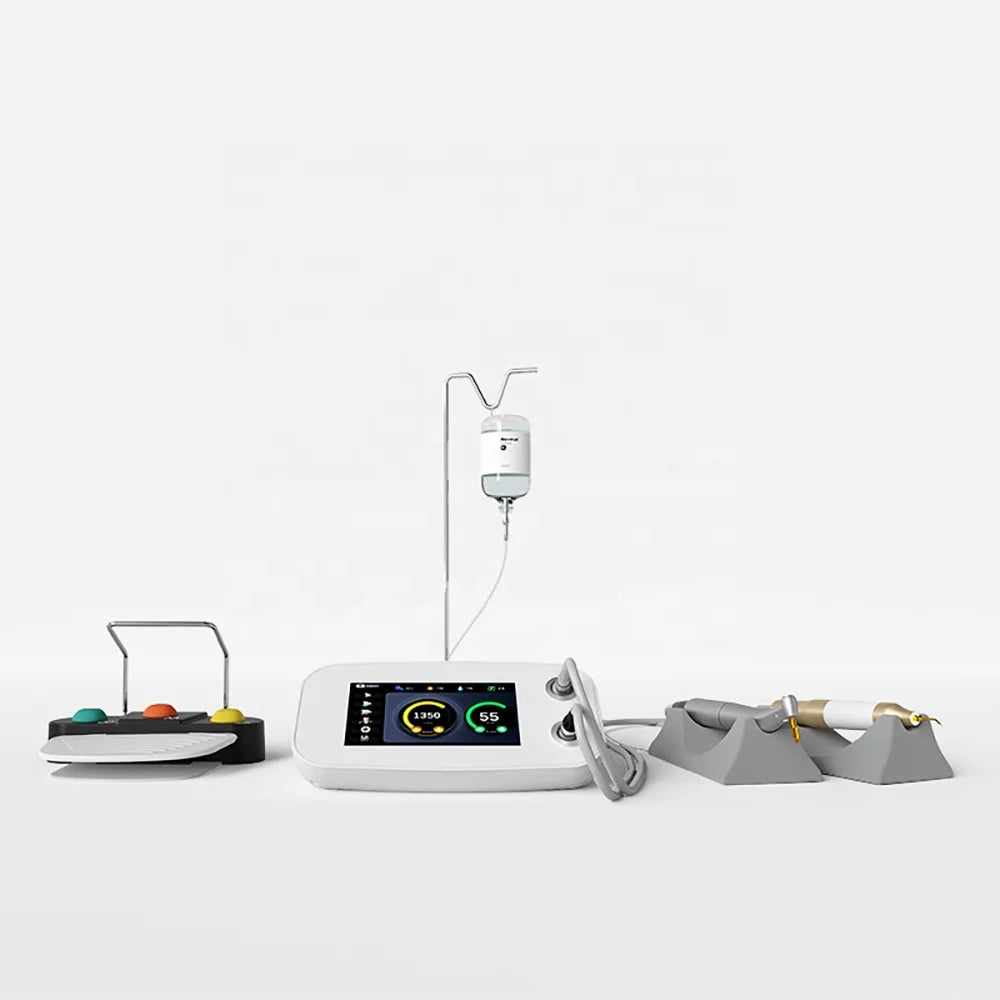

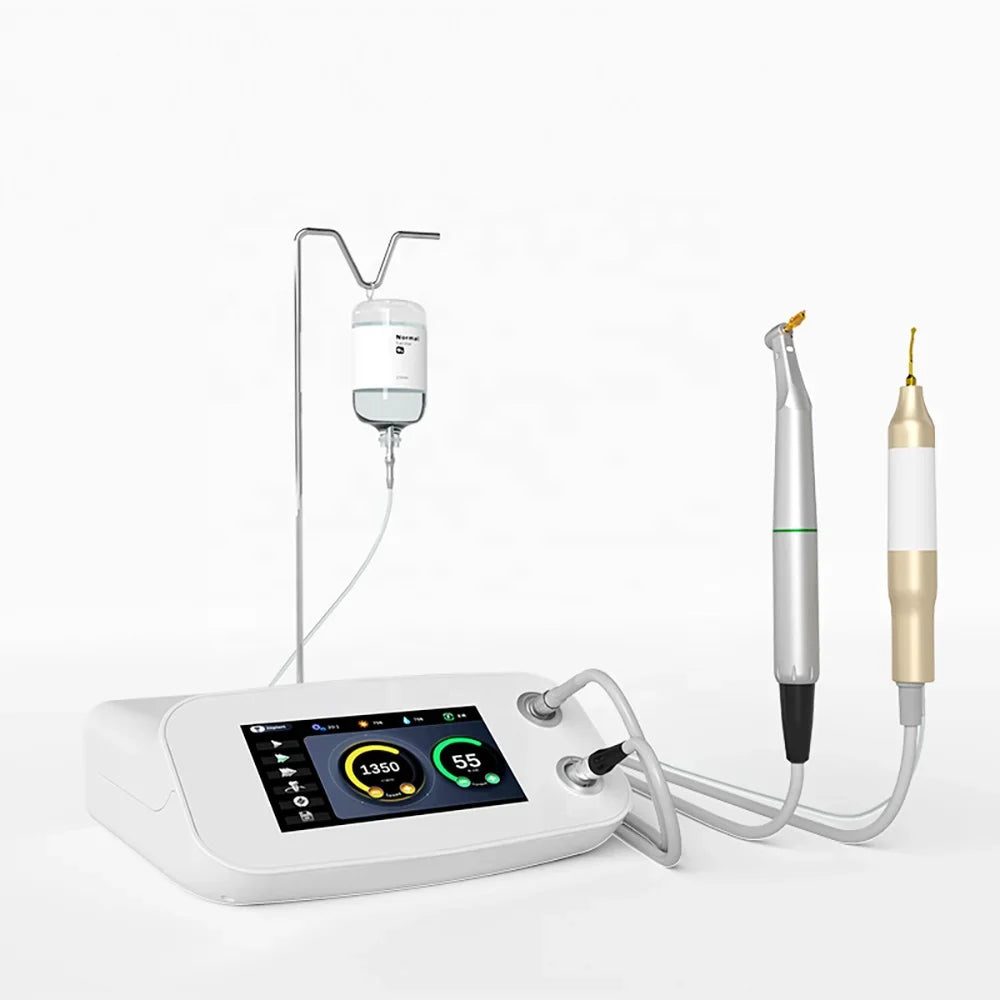

Advanced Dental Equipment: Intraoral Piezo Surgery & Implant Motor Device

Intraoral Piezo Surgery & Implant Motor Device

Specifications:

• Voltage: 100~240V, 50/60Hz
• Protection Rating: IPX1 (device & foot switch)
• Allowable Voltage Fluctuation: ±10%
• Maximum Power Consumption: 340 VA
• Fuses: 2×F10A, 250A
• Dimensions (WDH): 300×280×128 mm

Implant Mode:

• Speed Range: 100~40000 rpm (±10%)
• Torque Range: 5~70 N·cm (±10%)
• Cooling Water Flow: Adjustable in 5 gears (0%, 25%, 50%, 75%, 100%)
• Operation Mode: S3 (3 min/10 min)

Piezo Surgery Mode:

• Working Frequency: 24kHz~36kHz
• Water Flow: 60~100ml/min
• Water Applied Parts: Handpiece and Piezo tips

General Features:

• Standards Compliance: According to EN60529, IPX1 (device & foot switch)
• Application: Ideal for dental hospitals and clinics

This advanced dental equipment combines the precision of piezo surgery with the reliability of an implant motor, ensuring efficient and effective dental procedures. With adjustable speed and torque ranges, as well as customizable cooling water flow, it meets the diverse needs of dental professionals. The device is designed for maximum safety and ease of use, making it a valuable addition to any dental practice.

• Power Source : Electric
• Warranty : 1 Year
• After-sale Service : Online technical support
• Material : Metal, Plastic
• Safety standard : GB2626-2006
• According to EN60529 : IPX1(device&foot switch)
• Allowable Voltage Fluctuation : +-10%
• Maximum Power Consumption : 340 VA
• Fuses : 2*F10A 250A
• Torque Range : 5-70N cm(10%)
• Speed Range : 100~40000 rpm
• Operation Mode : S3(3 min/10 min)
• Working frequency : 24kHz~36kHz
• Application : for dental hospital
