Advanced 128 Slice CT Scan Machine | 64 Row Imaging Scanner System for Hospitals

Advanced CT Scan Machine

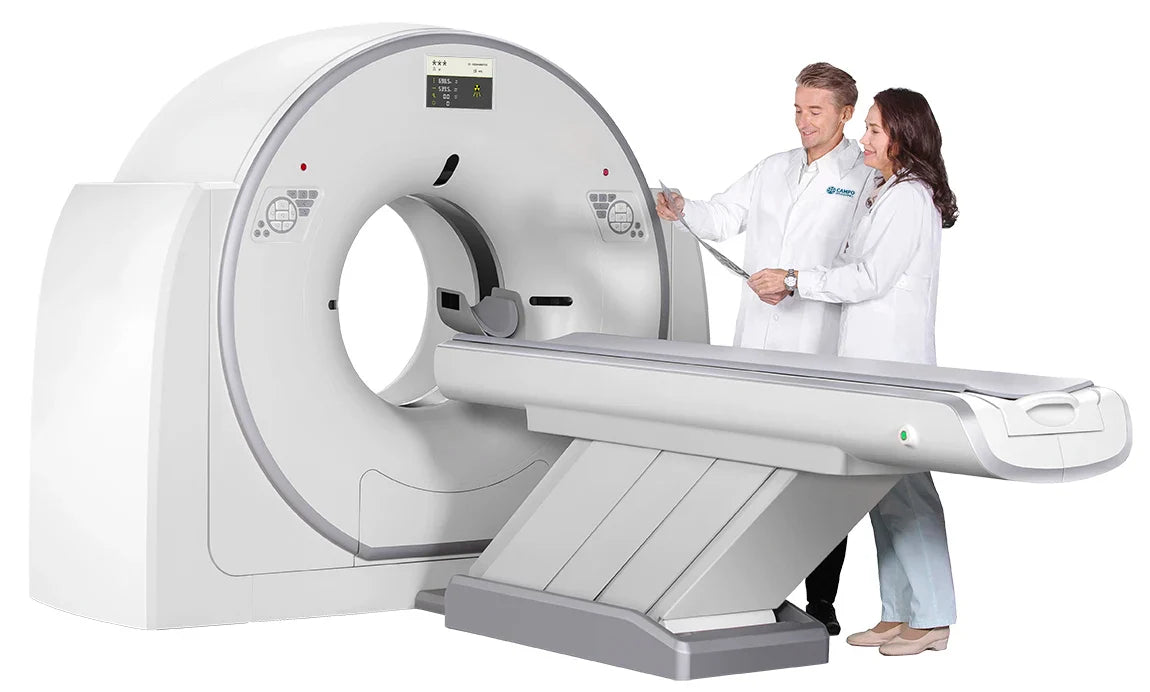

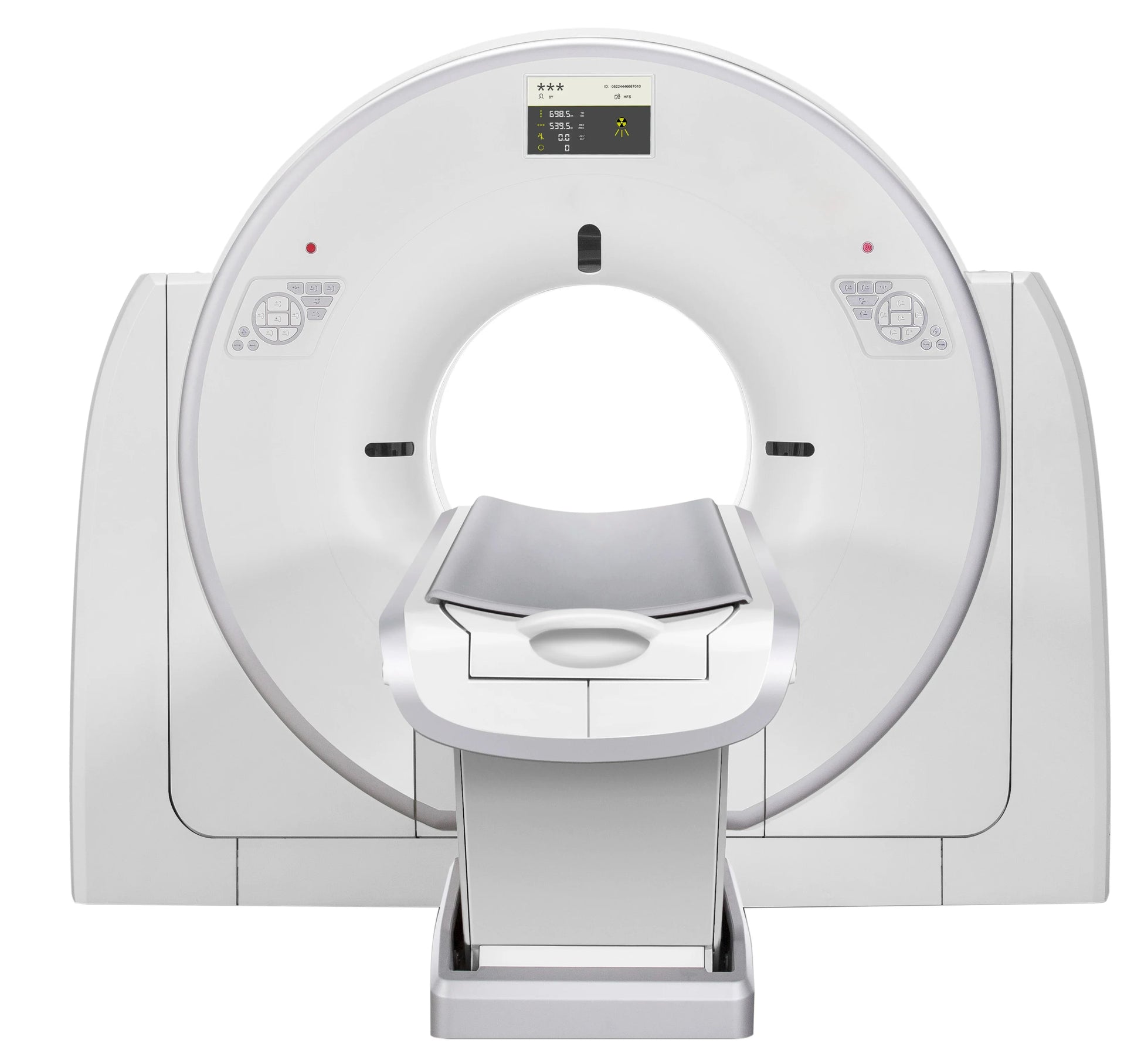

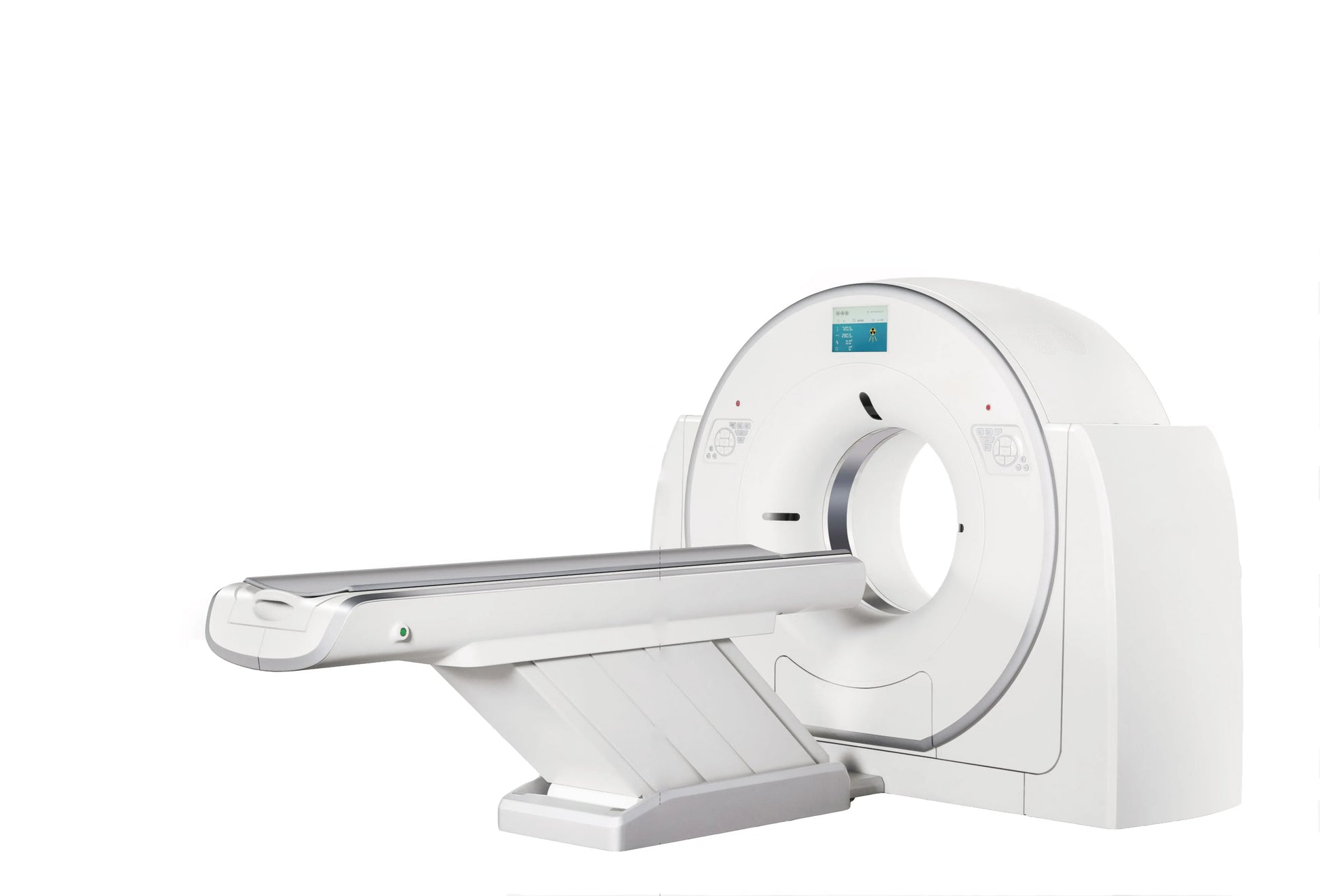

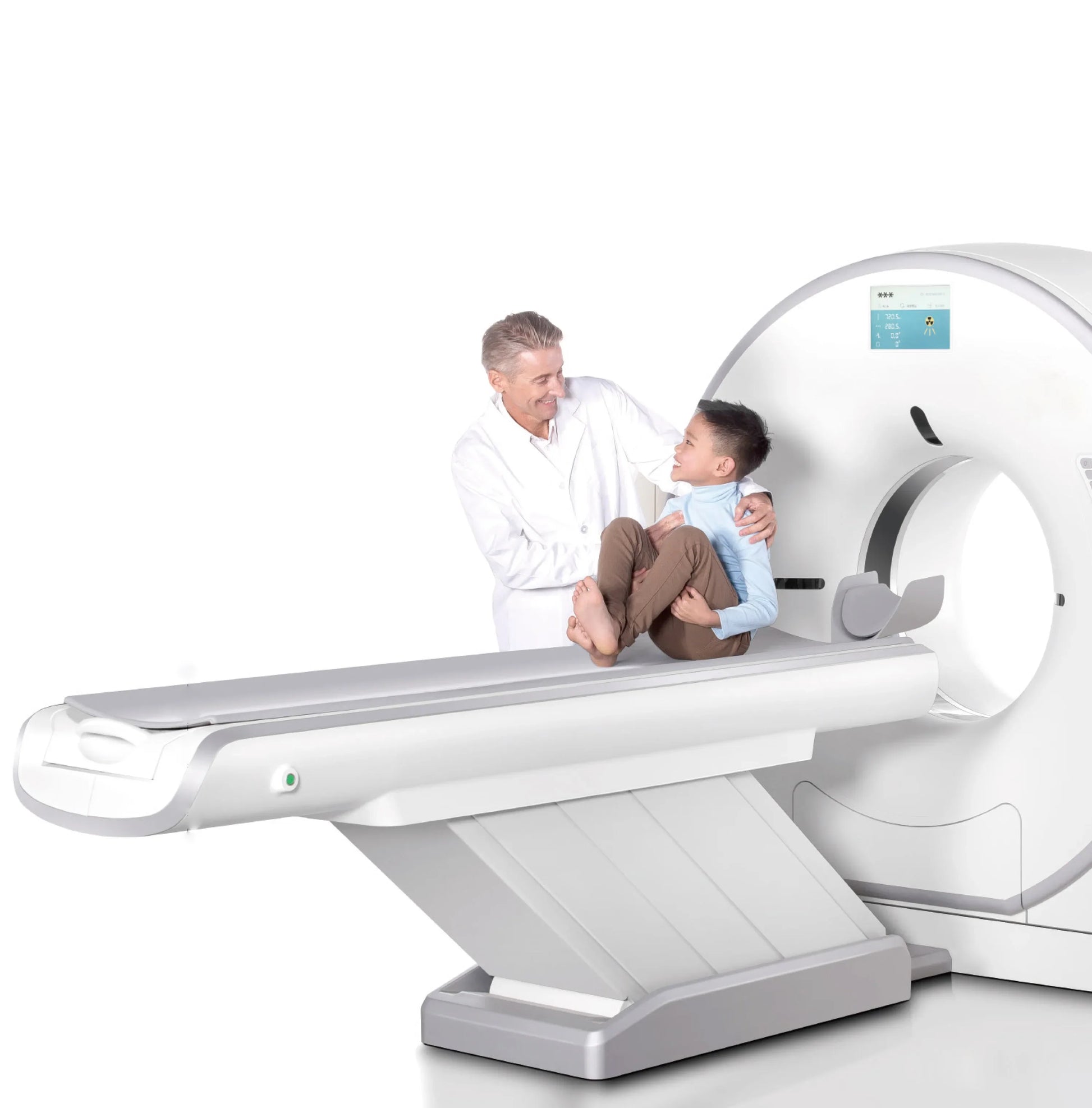

The MSLCTX13 is an advanced medical CT scan machine designed for hospital use. With 128 slices and 64 rows, it provides high-resolution imaging for accurate diagnostics.

Below are the detailed specifications:

Gantry

• Slip Ring: Low-voltage slip ring
• Aperture Size: 715mm
• Tilt Angulation Range: ±30°
• Laser Positioning System: Includes sagittal, coronal, and cross-sectional positioning lines
• Scanning Collimation: 2x1.1mm, 8x0.55mm, 16x0.55mm, 16x1.1mm
• Sampling Rate: 1800 views/cycle
• Minimum Scan Time: 0.72s per 360°
• Maximum Field of View (FOV): 500mm
• Data Transmission Mode: Digital
• Cooling Method: Air cooling heat dissipation

Detector

• Type: GOS ceramic solid detector
• Number: 888x64
• Rows: 64
• Channels per Row: 888
• Thickness per Row: 0.55mm

X-ray System

• Focal Point: Bifocus
• Focal Spot Size: 0.7mm x 0.8mm, 1.2mm x 1.4mm
• Heat Storage Capacity: 3.5 MHu
• Max Anode Cooling Rate: 8750W (12250 HU/sec)
• Tube Life: 100,000-second exposure
• Output Voltage Range: 60kV to 140kV
• Max Output Current: 350mA
• Max Power: 42kW
• Max Continuous Exposure Time: 100s

Scanner Table

• Horizontal Movement Range: 0 ~ 1725mm
• Maximum Scan Range: 1650mm
• Maximum Horizontal Speed: 300mm/s
• Repetitive Positioning Accuracy: ±0.25mm
• Vertical Range: 450mm minimum, 470mm lift range
• Maximum Load Capacity: 205kg

Scanning and Image Reconstruction

• Scan Modes: Tomoscan, Helical Scan, Precision Tomoscan, Dual Energy Scan (optional)
• Minimum Image Thickness: 0.275mm
• Reconstruction Matrix: Up to 1024x1024
• Maximum Continuous Scan Length: 1650mm
• Field of View (FOV): Up to 500mm
• Spatial Resolution: 16.6LP/cm @ MTF10%, 21LP/cm @ MTF0%
• Low Density Resolution: 4.0mm @ 0.3%
• CT Value Display Range: ±16383
• Display Gray Scale: 256, 24-bit color
• Iterative Reconstruction: P-IR dual-domain iterative de-noising reconstruction technology provided

This comprehensive and high-performance CT scan machine ensures precise diagnostics with advanced imaging capabilities. Ideal for hospitals looking to enhance their medical imaging services.

• Power Source : Electricity
• Warranty : 10 Year
• After-sale Service : Online technical support
• Material : Metal
• Shelf Life : 12 years
• Slip Ring : Low-voltage slip ring
• Aperture Size : 715mm
• Tiltangulation Rang : ±30°
• Scanning Collimatio : 2x1. 1mm;8x0.55mm;16x0.55mm;16x1. 1m m
• Sampling Rate : 1800 view/ cycle
• Min Scan Time (s/360°) : 0.72s
• Max FOV (Field of View) : 500mm
• Detector Type : GOS ceramic solid detector
• Detector Number : 888x64
• Focal Spot Size : 0.7mmx0.8mm; 1.2mmx1.4mm
