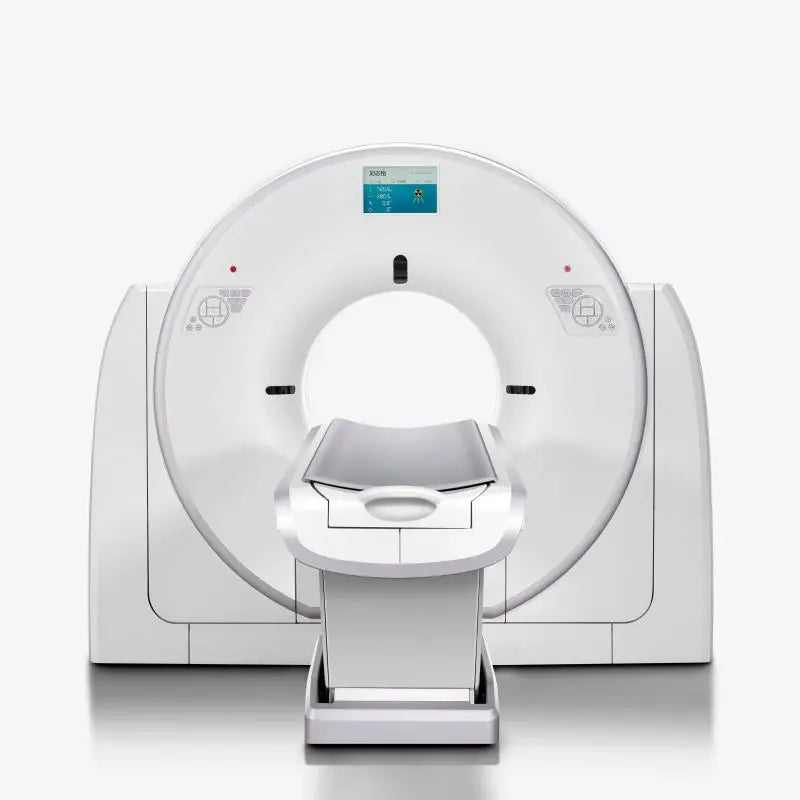

32-Slice Spectral Imaging CT Scanner - 2D/3D Computer Tomography Machine

Advanced 32-Slice CT Scanner with Spectral Imaging Technology

This state-of-the-art 32-slice CT scanner incorporates high-end spectral imaging technology, a feature usually reserved for premium CT models. Designed to enhance diagnostic accuracy and safety, this technology allows for superior visualization of lesions and tissues, even in challenging areas, significantly improving the success rate of imaging diagnoses.

Specifications:

• Slip Ring Type: Low-voltage slip ring
• Aperture Size: 715 mm
• Tilt Angle Range: ±30°
• Scanning Collimation: 2x1.1 mm; 8x0.55 mm; 16x0.55 mm; 16x1.1 mm
• Sampling Rate: 1800 views per cycle
• Minimum Scan Time: 0.72 seconds (per 360° rotation)
• Maximum Field of View (FOV): 500 mm
• Data Transmission: Digital transmission
• Cooling Method: Air cooling with efficient heat dissipation
• Detector Type: GOS ceramic solid detector
• Detector Specifications:
  • Rows: 24
  • Channels per Row: 888
  • Thickness per Row: 0.55 mm

This 32-slice CT scanner is ideal for advanced medical imaging facilities looking to provide high-resolution, detailed scans with enhanced diagnostic capabilities.

• Power Source : Electric
• Warranty : 1 Year
• After-sale Service : Online technical support
• Material : metal, plastic
• Shelf Life : 1years
• Aperture Size : 715mm
• Tiltangulation Range : ±30°
• Scanning Collimation : 2x1.1mm;8x0.55mm;16x0.55mm;16x1.1m m
• Sampling Rate : 1800 view/ cycle
• Min Scan Time (s/360°) : 0.72s
• Detector Type : GOS ceramic solid detector
• Detector Number : 888x24
• Detector Row : 24
• Detector Channel Per Row : 888
• Detector Thickness Per Row : 0.55mm
