14L Autoclave Steam Sterilizer – Automatic Medical & Dental Sterilization Equipment

14L Dental Autoclave Steam Sterilizer – Automatic Medical Sterilization Unit

Product Overview:

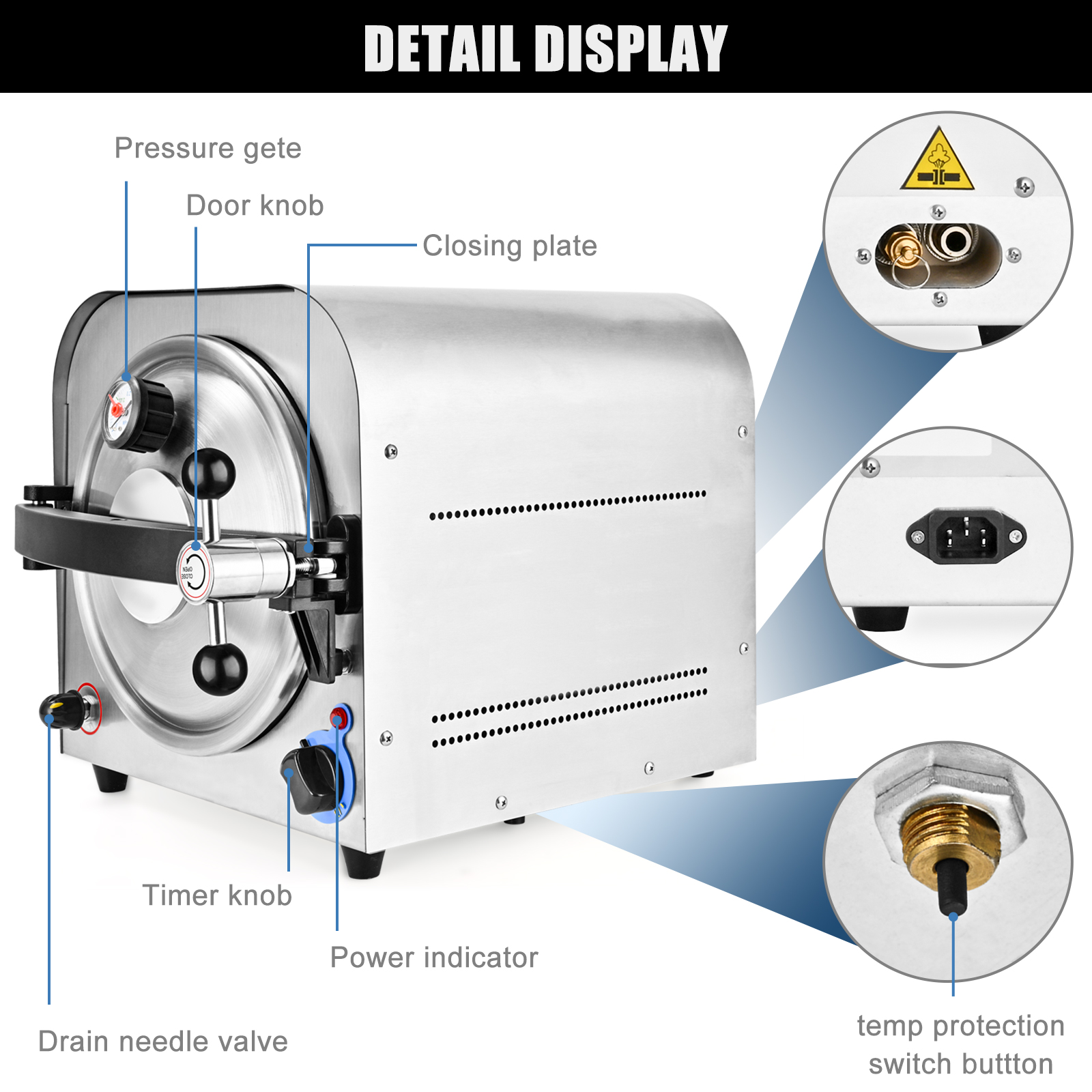

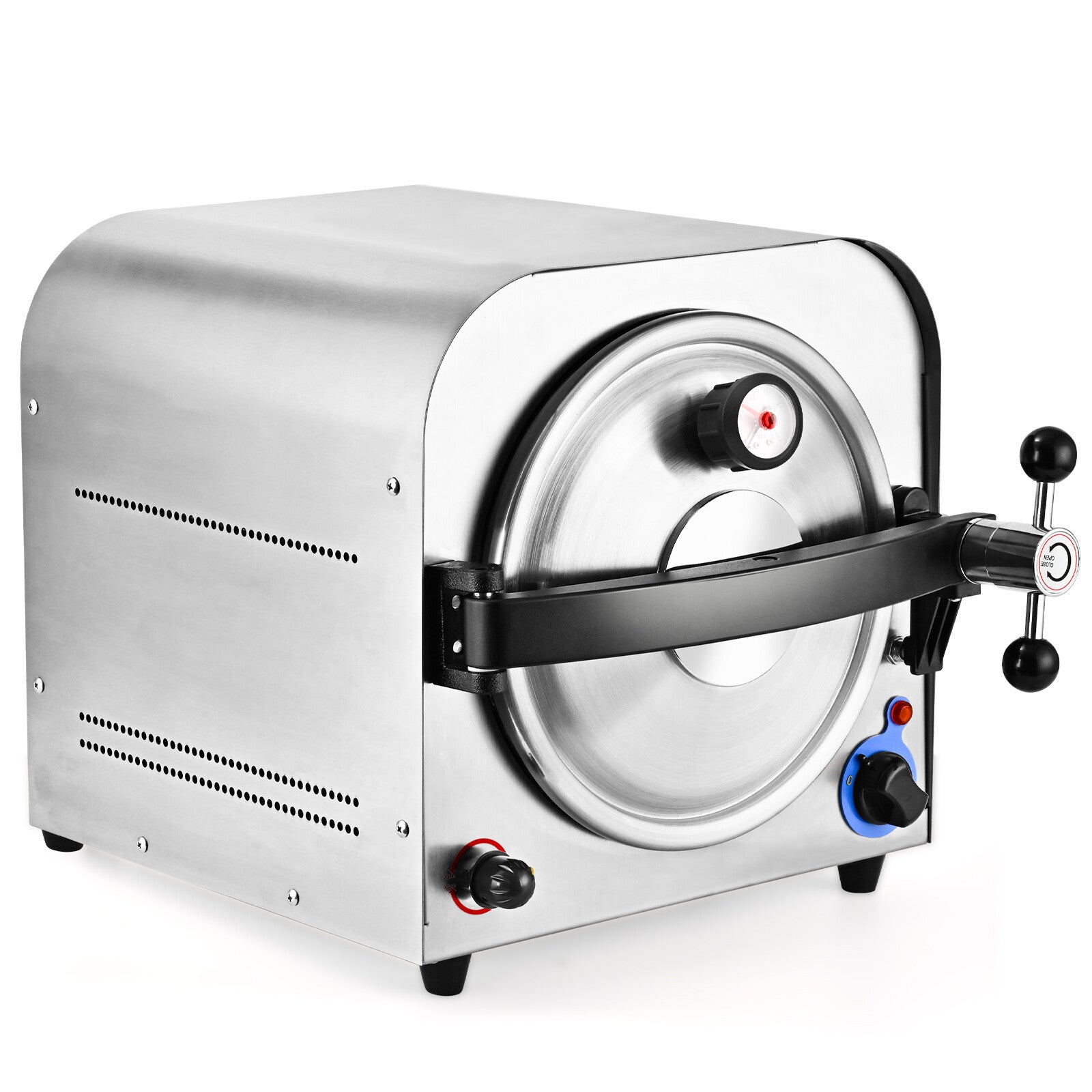

This 14L Dental Autoclave Steam Sterilizer is a compact, fully automatic high-pressure sterilization system ideal for clinics and studios requiring fast and effective equipment sterilization. Designed with essential components such as a pressure gauge, rotary handle, indicator lights, timer knob, exhaust needle valve, steam outlet, and safety valve, it ensures safe, consistent, and reliable performance.

Applications:
Perfect for use in:

• Dental and ophthalmology clinics

• Veterinary offices

• Pedicure and beauty salons

• Barbershops

• Tattoo studios

• Any setting requiring sanitary equipment

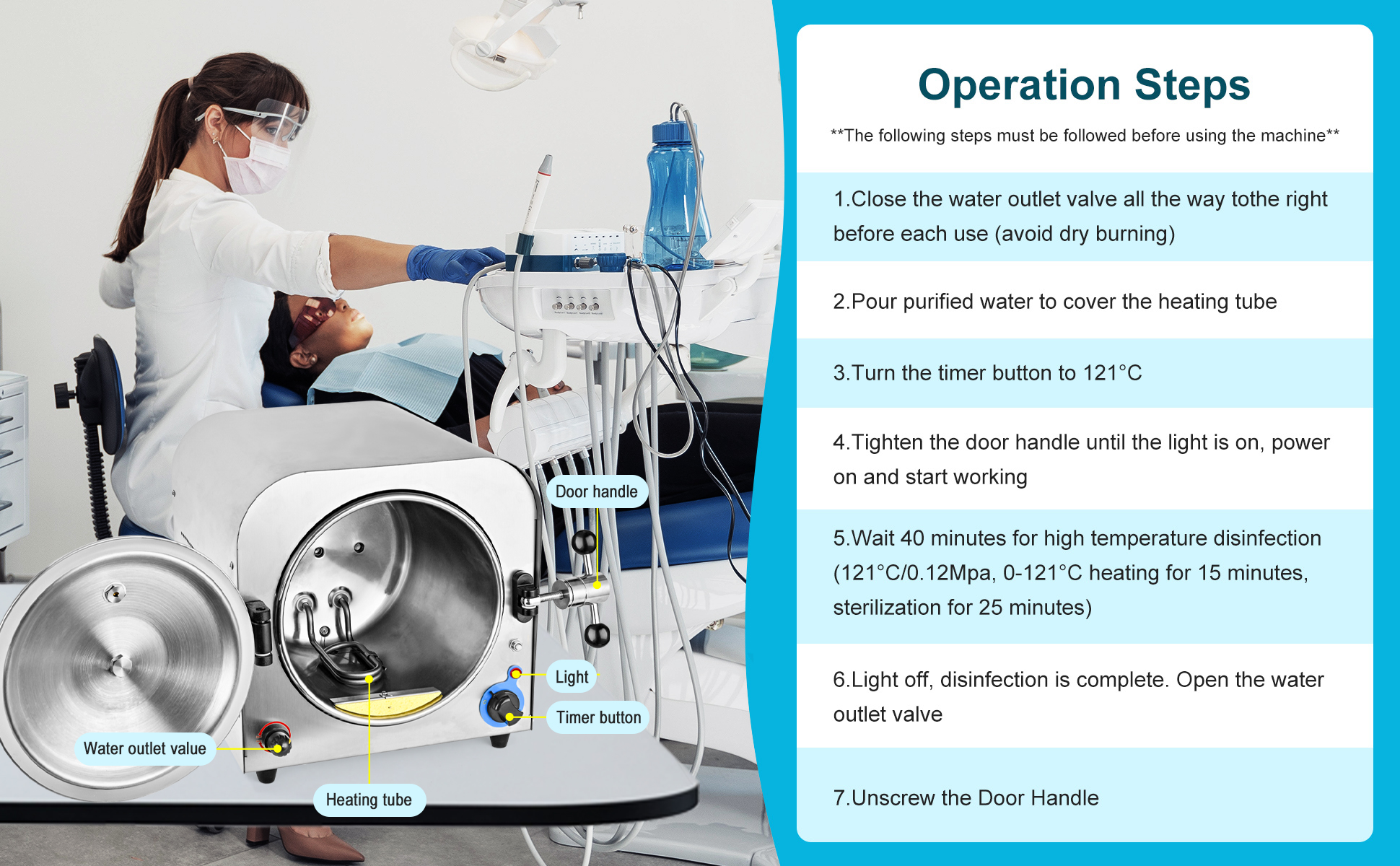

How to Use:

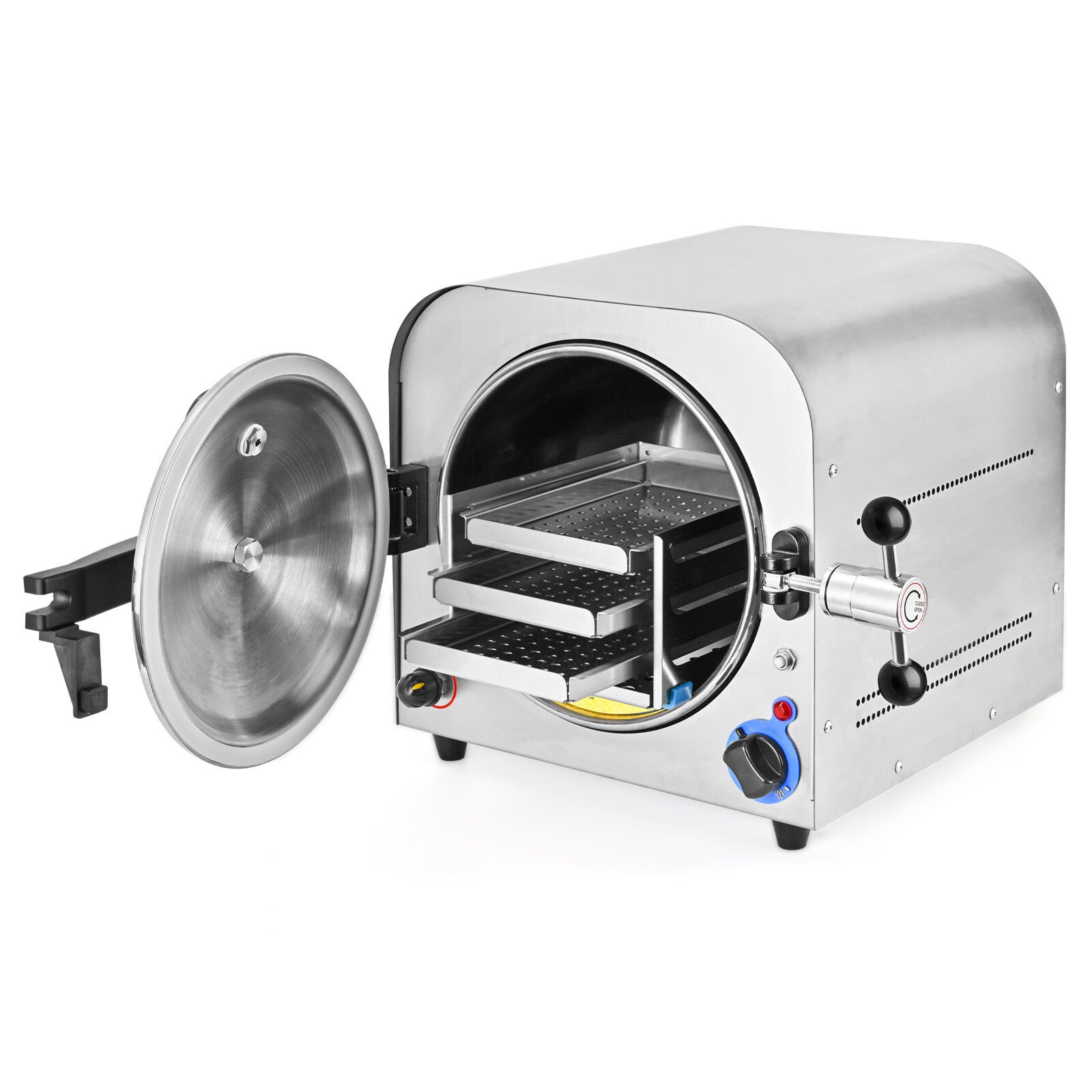

1. Open the sterilizer door. Remove packaging from trays, rack, and accessories.

2. Plug in the power cord and connect the steam discharge hose to the steam outlet.

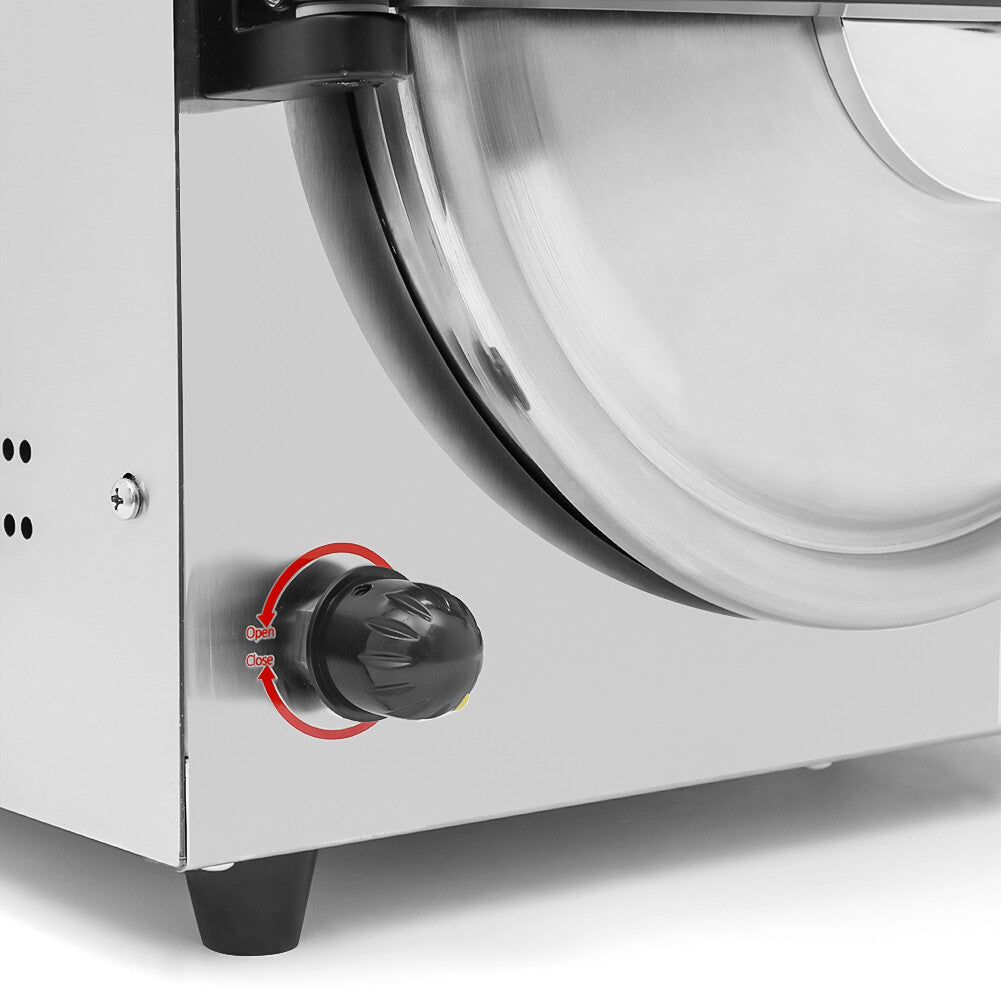

3. Tighten the exhaust valve clockwise. Add approximately 800ml of distilled water into the chamber.

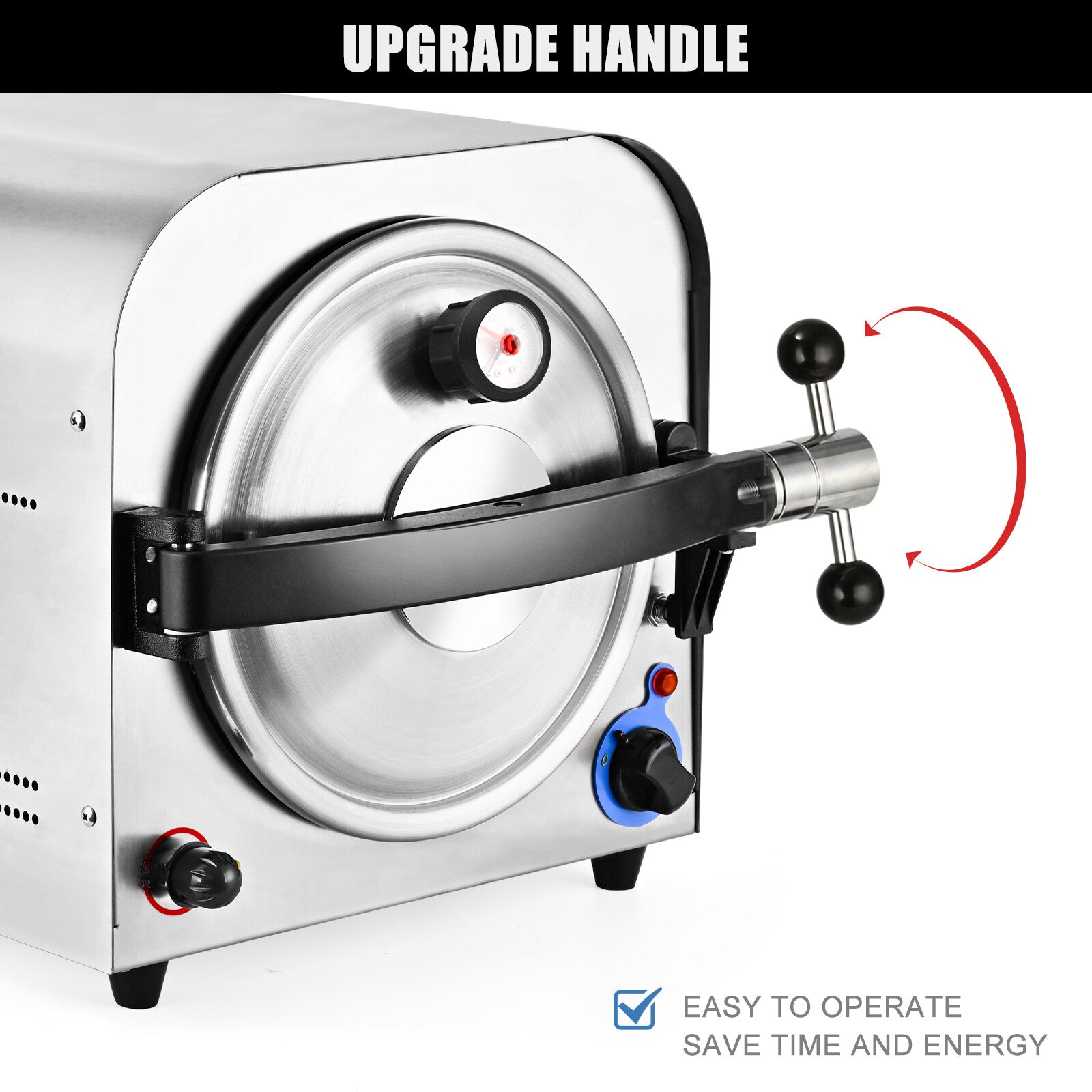

4. Close the lid securely and rotate the handle clockwise to lock.

5. Set the timer knob to the 121°C position to start sterilization.

6. Once completed, release steam by slowly opening the exhaust valve.

7. Wait for the pressure gauge to return to zero before opening the door.

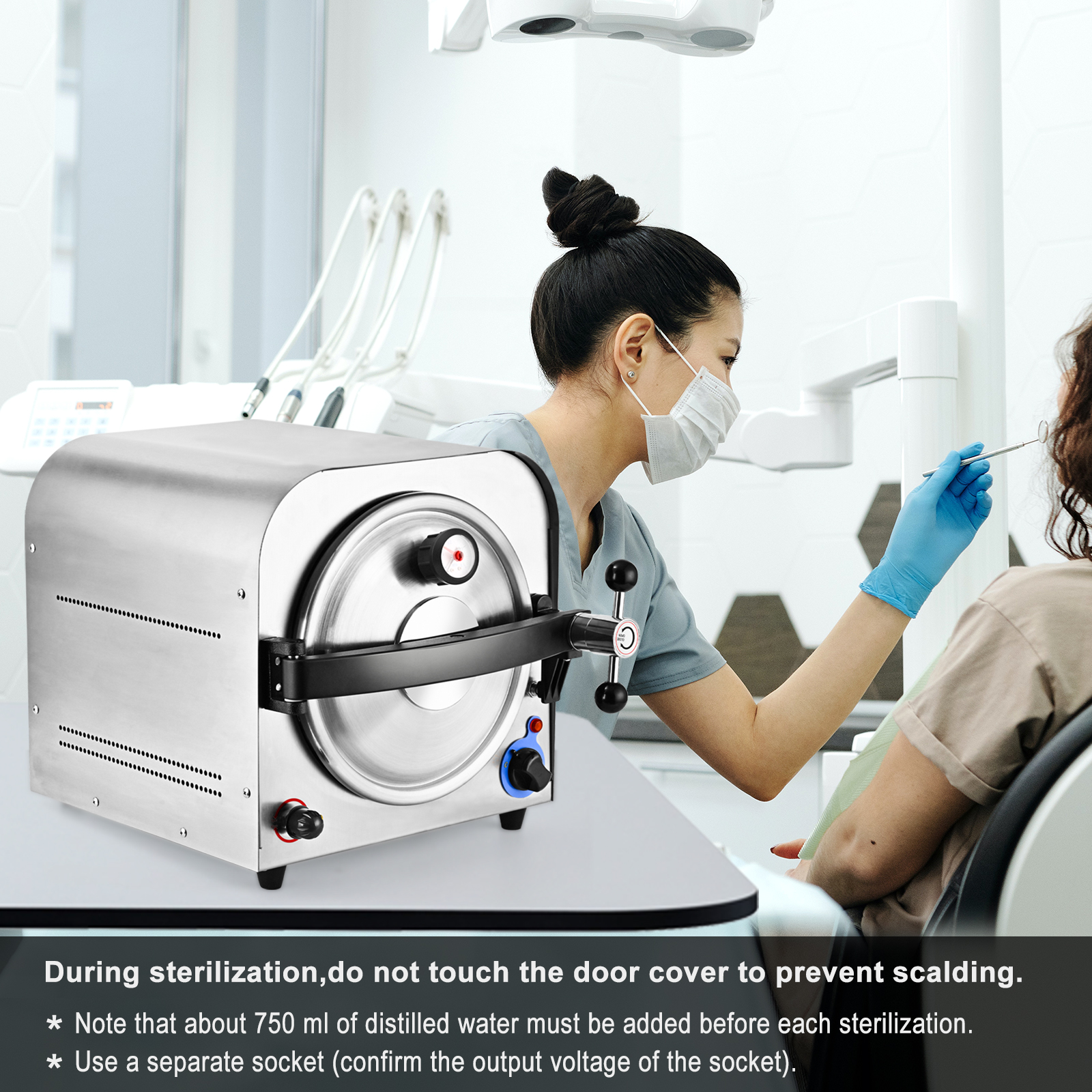

Important Notes:

• Always use a dedicated power socket with correct voltage (AC110V).

• Ensure the draining hose and power cord are securely connected.

• Add 800ml of distilled water before each use.

• Never open the unit while the pressure gauge is in the red zone; exhaust steam first.

Specifications:

• Model: TR250E

• Power: 900W

• Voltage: AC110V, 60Hz

• Chamber Dimensions: Ø25 × D28 cm (Ø9.84 × D11.02 in)

• Capacity: 14 Liters

• Material: #304 Stainless Steel

• Sterilizing Temperature: 121°C

• Sterilizing Pressure: 0.12 MPa

• Ambient Temperature Range: 5–40°C

• Cycle Time: Approx. 25 Minutes

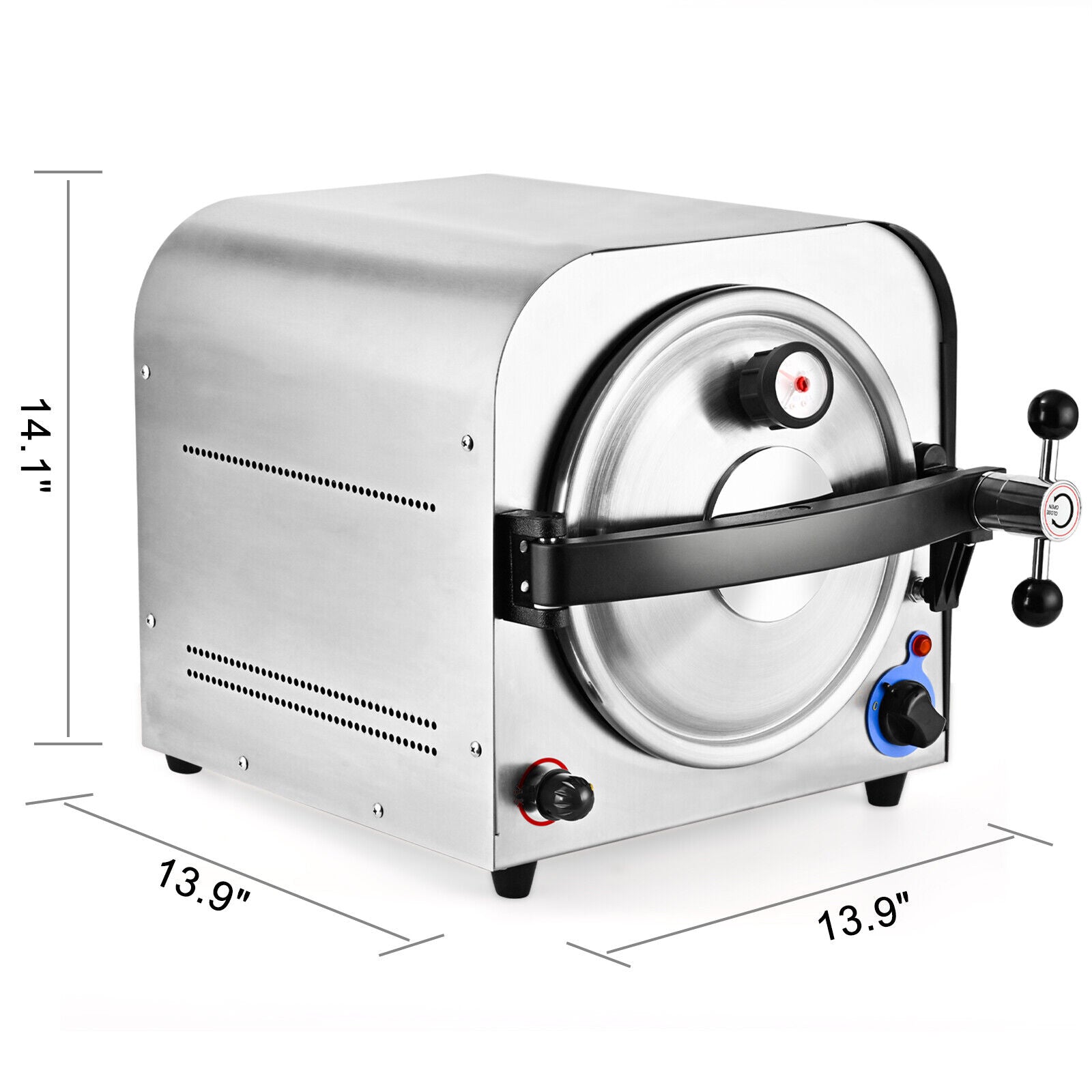

• Package Size: 54 × 43 × 42 cm (21.3 × 17 × 16.5 in)

• Gross Weight: 20kg

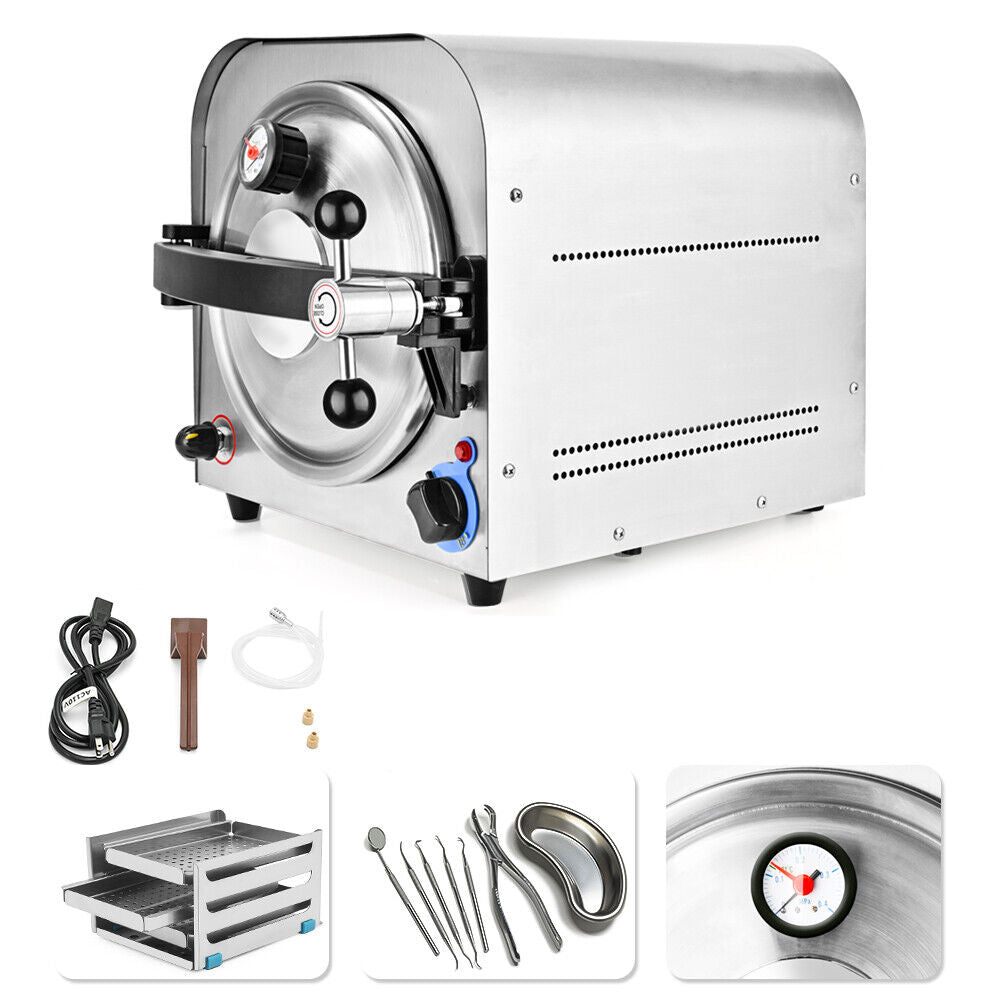

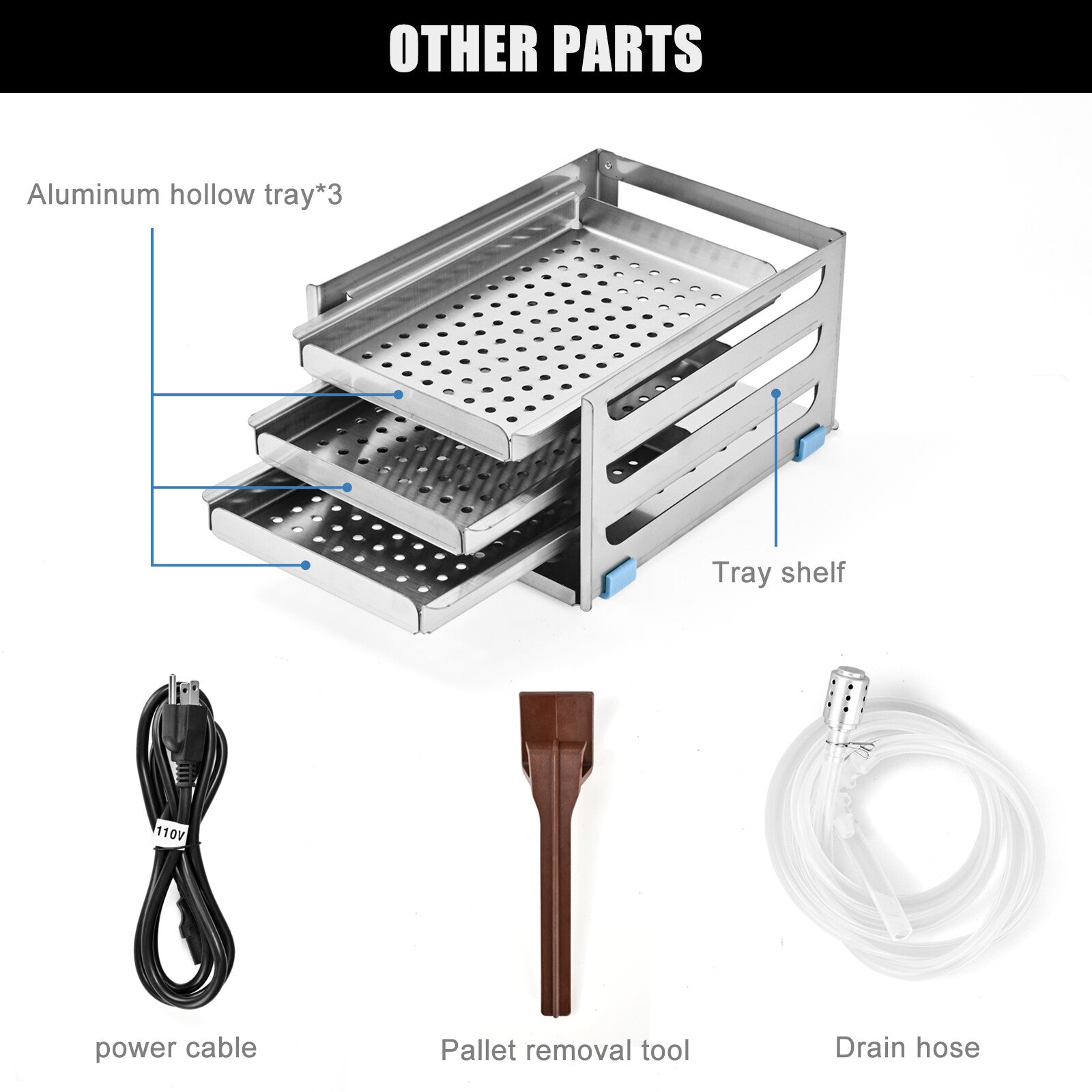

What’s Included:

• 1 × 14L Autoclave Steam Sterilizer

• 3 × Trays

• 1 × Tray Rack

• 1 × Tray Removal Tool

• 1 × Drain Hose

• 1 × Power Cord

• 1 × User Manual

• Additional Accessories as Pictured

•
•
•
•
•
•
